Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug

Your rating:
Average rating
product review for Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug
( 0 / 5 ) 0 ratings
Chauvin Arnoux BAG1-S7
This image may differ from the desired article.
178,80 EUR
( 212,77 EUR incl. VAT )
≈ £148.94  |  ≈ $196.14
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug
Datasheet:file_download Download
Lieske Part No.:1142352
Mfg Part No: BAG1-S7
UPC/EAN: 3663653005807
Weight:0.123 kg
Graduated prices net
From piecesPrice per pieces
5177,46 EUR
10176,12 EUR
15174,78 EUR
20173,44 EUR

Product information for Chauvin Arnoux BAG1-S7:

The BAG1-S7 is a redox indicator electrode made of silver, manufactured by Chauvin Arnoux, specifically developed for measurements in the field of oxidation-reduction potential (ORP). It serves as a measuring electrode that reacts to changes in the redox potential of a sample and is used in combination with a reference electrode, for example, type BR44. The electrode consists of a glass rod, the lower end of which is fitted with a silver rod, enabling stable and reproducible measurements. It is particularly suitable for titrations and argentometric dosing, where the service life of the measuring electrode is shorter than that of the reference electrode, making a separate design sensible.

Applications
The BAG1-S7 is used in applications where the oxidizing or reducing power of a solution must be determined. This includes chemical processes in which the electron activity of the sample is relevant, such as in water analysis, the food industry, or specific laboratory investigations. The electrode is designed for measurement in liquid media, where the silver surface as an inert material reliably reflects the reactions of the sample. The recommendation for argentometric dosing indicates use in analytical procedures where silver ions are used as titrants.

Functions and Equipment in Detail

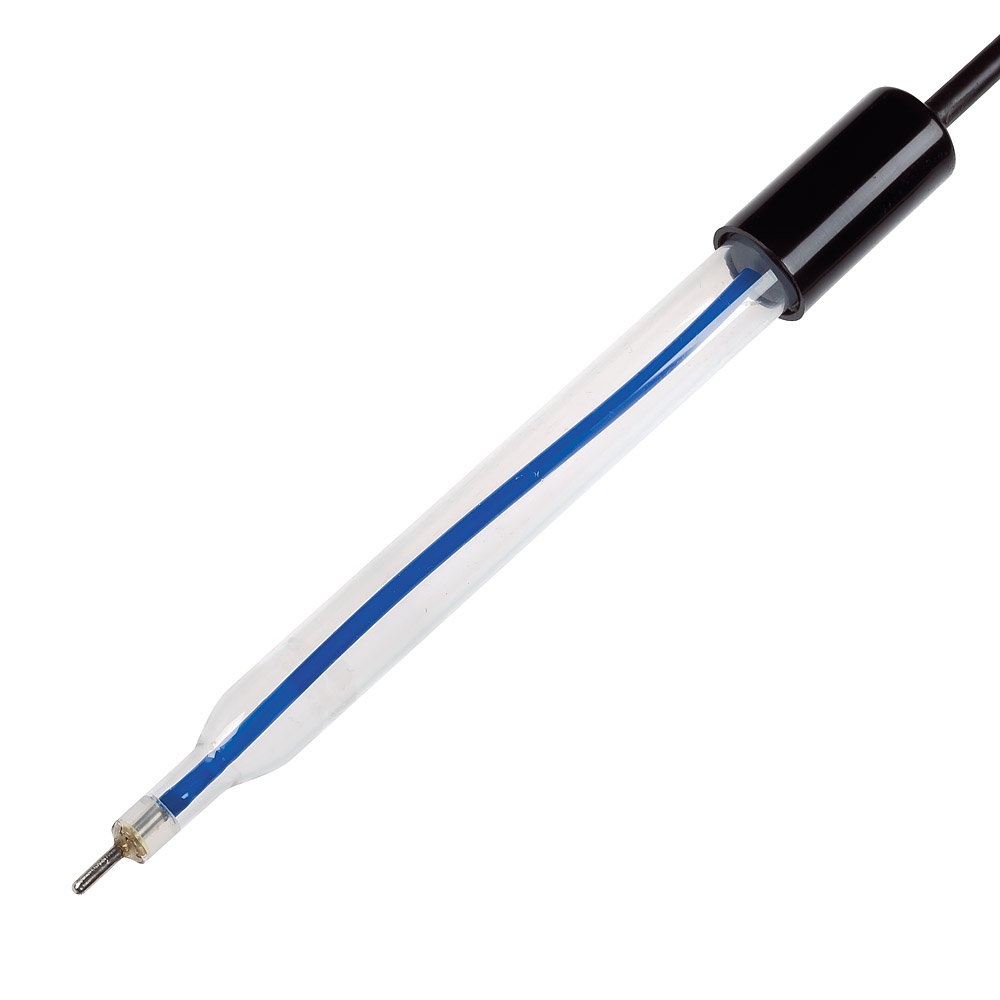

The electrode features a glass body that protects the silver rod and provides a stable mechanical structure. The silver rod, acting as the measuring electrode, reacts to redox conditions in the sample and generates an electrical signal proportional to the oxidation-reduction potential. The measurement is carried out by the potential difference between the measuring electrode and a reference electrode, with the result expressed in millivolts (mV). The electrode is equipped with an S7 connector designed for connection to compatible measuring instruments. This connector is designed for screwing, ensuring a secure and durable connection.

Technology Explained Simply
The BAG1-S7 operates on the principle of redox measurement, quantifying the ability of a solution to accept or donate electrons. The silver surface serves as the reaction surface where redox reactions take place. The resulting potential is transmitted to the measuring instrument via the S7 connector, where it is evaluated. The glass structure protects the silver rod and ensures an even contact surface with the sample.

Compatibility and Accessories
The electrode is designed for use with reference electrodes of type BR44, which provide a constant reference potential. The combination of BAG1-S7 and BR44 enables precise ORP measurement. The S7 interface is standardized and supported by various measuring instruments, particularly in laboratory environments.

Installation and Mounting
Mounting is done by screwing the S7 connector to the corresponding measuring instrument. The electrode is immersed in the liquid to be measured, ensuring the silver surface is fully in contact with the sample. The connection to the measuring instrument is made via the S7 plug, which should be securely screwed to ensure a stable electrical connection. No additional mounting aids or tools are required, as the electrode connects directly to the device.

Operational Advantages
The BAG1-S7 offers high stability and reproducibility of measurement values, especially in applications where the service life of the measuring electrode is shorter than that of the reference electrode. The use of a separate system enables cost-efficient maintenance, as only the measuring electrode needs to be replaced when worn out. The silver surface is chemically inert and reliably reacts to redox conditions, increasing measurement accuracy. The S7 interface ensures a secure and durable connection to the measuring instrument, enhancing reliability in operation.

General
Electrode materialSilver
HousingGlass
Connection typeS7
Application rangeRedox measurement
Recommended applicationTitrations, argentometric dosing


Product data sheet
Datasheet for Chauvin Arnoux BAG1-S7, EAN: 3663653005807

Questions & answers

What is the delivery time of Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug?

The article Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux BAG1-S7 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux BAG1 argentometry measuring electrode / S7 plug we can offer you a price of 177,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
