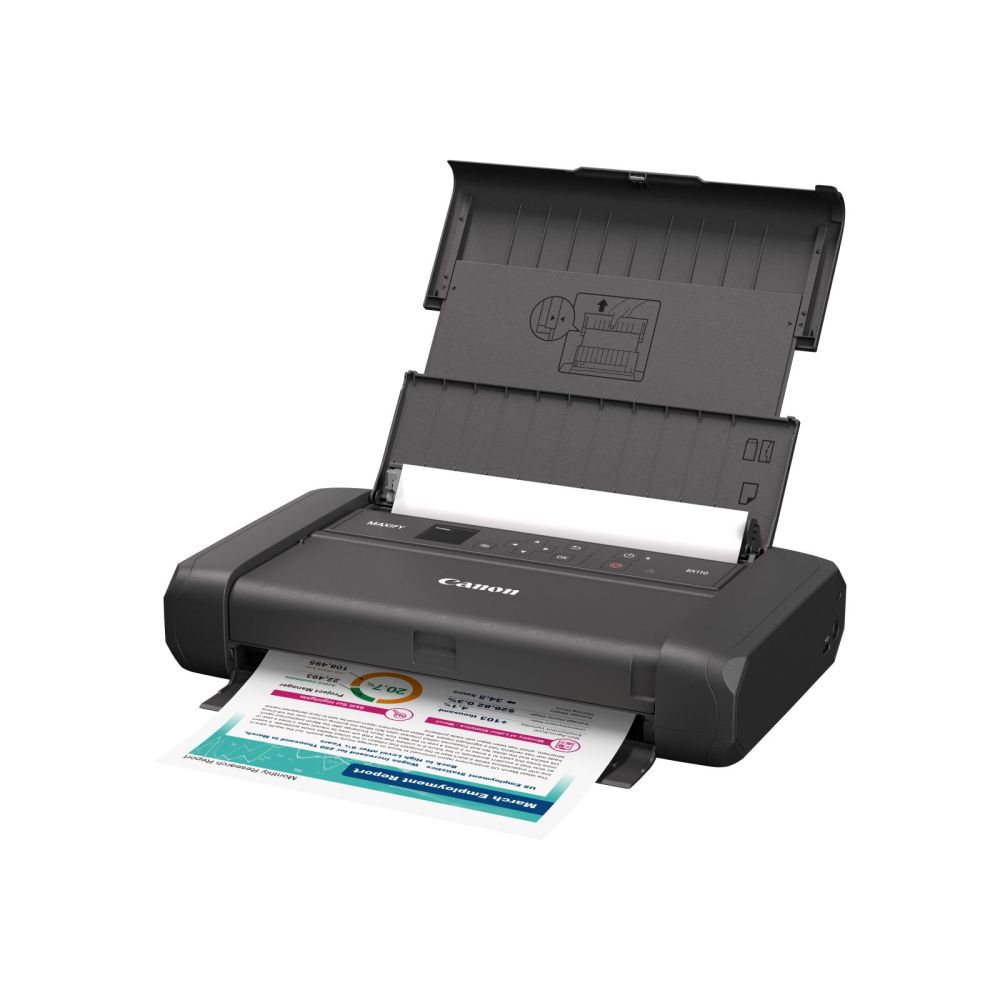

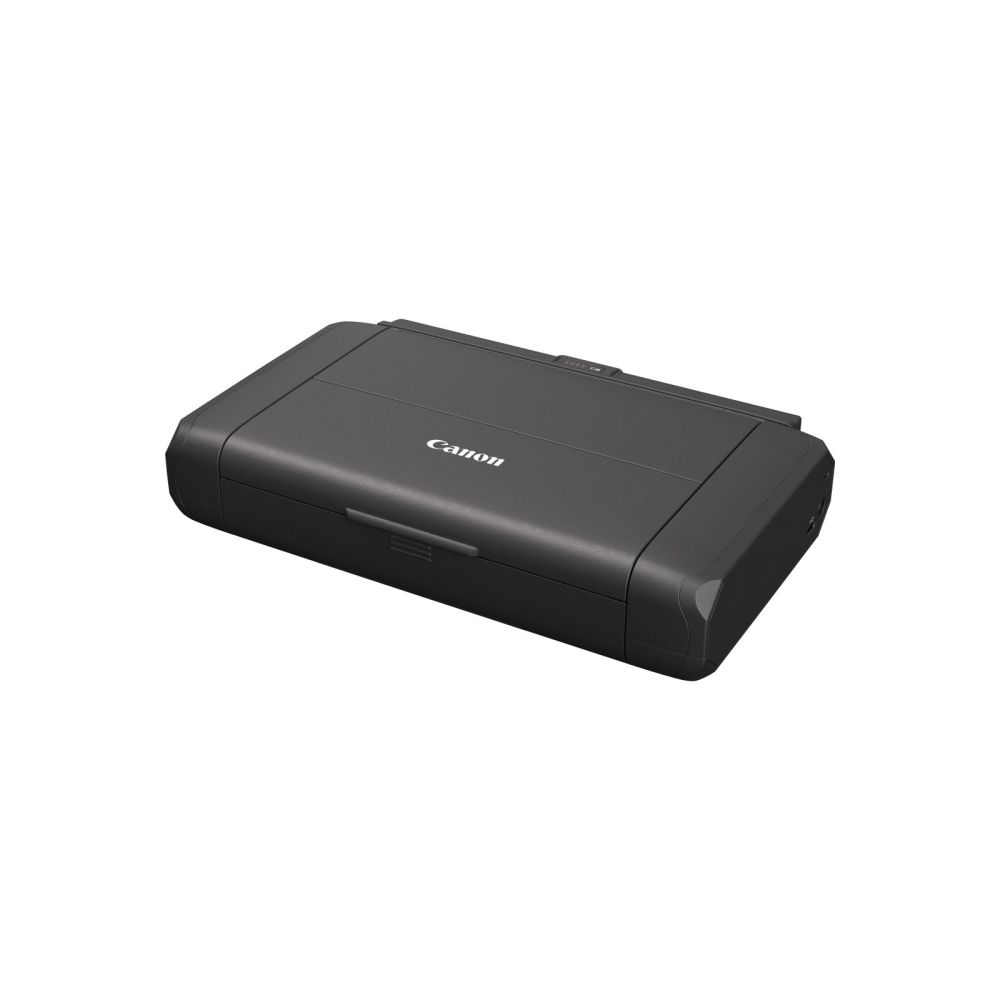

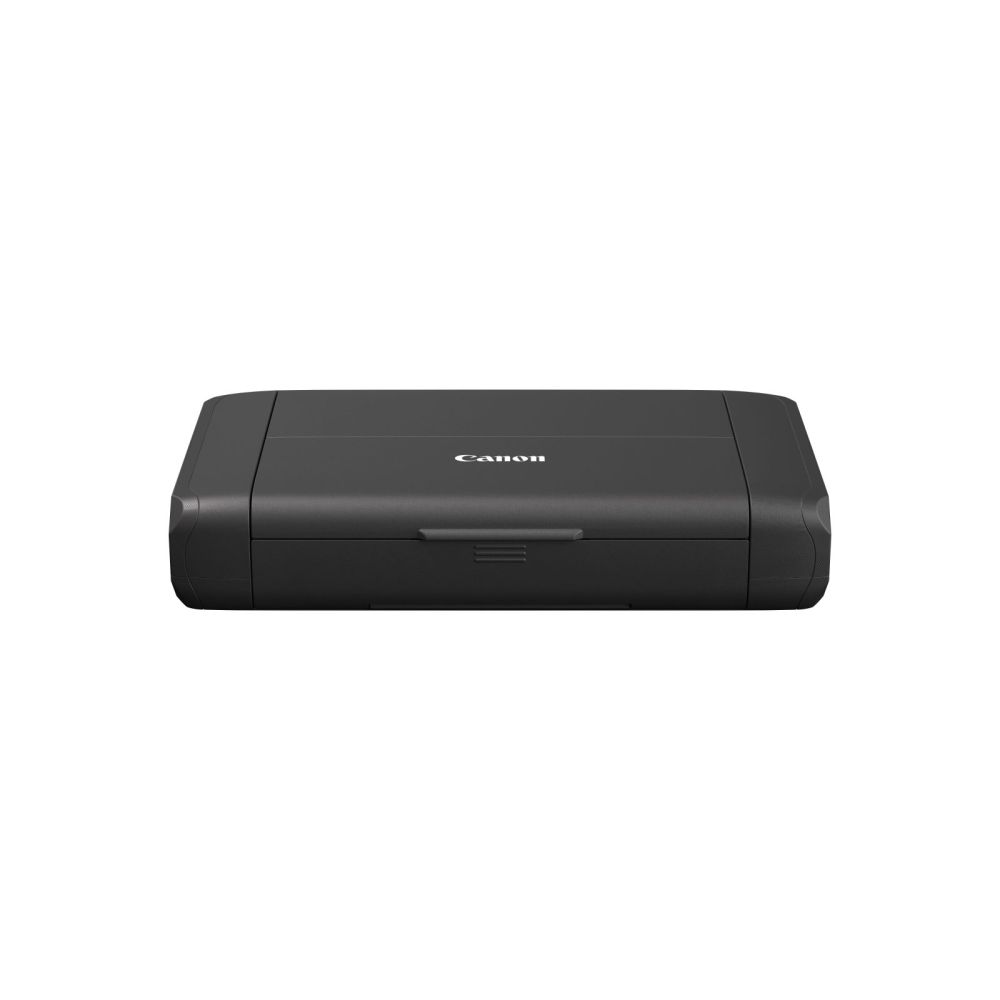

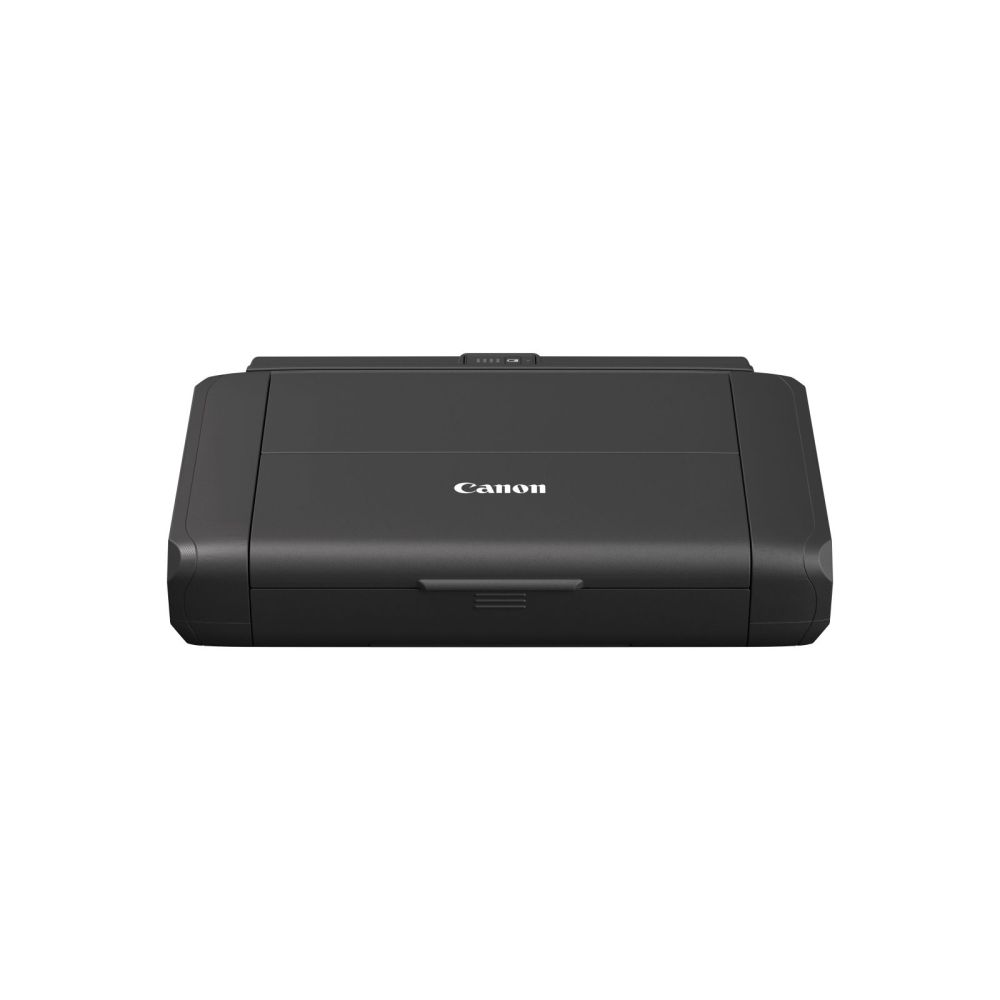

Canon 7069C026 MAXIFY BX110 with battery mobile inkjet printer content_copy

The Canon MAXIFY BX110 with battery is a mobile inkjet printer designed for use in the office, at home, and on the go. It enables wireless printing of documents and photos up to A4 format, supported by an integrated battery function that allows mobile operation. The printer features a maximum print resolution of 4800 x 1200 DPI, ensuring sharp text and vibrant colors. The printing technology is based on a FINE print head with the ChromaLife100 system, which ensures high color stability when stored in an album. The ink cartridges consist of two units: a pigment black cartridge (PGI-35) and a color cartridge (CLI-36), which includes cyan, magenta, yellow, and photo black. This hybrid ink ensures sharp text and vibrant colors, with the color cartridge covering up to 102 photos in 10 x 15 cm format and the black cartridge covering 200 A4 document pages on normal paper.

Applications

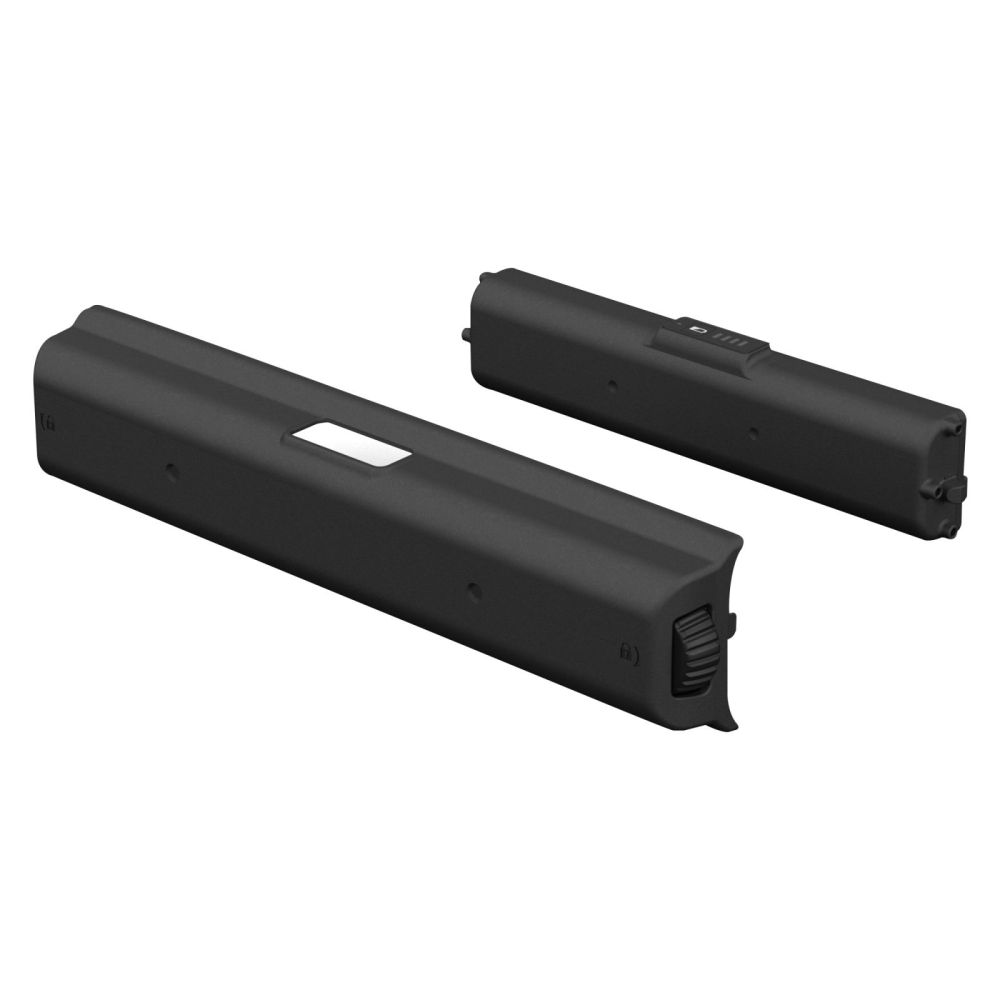

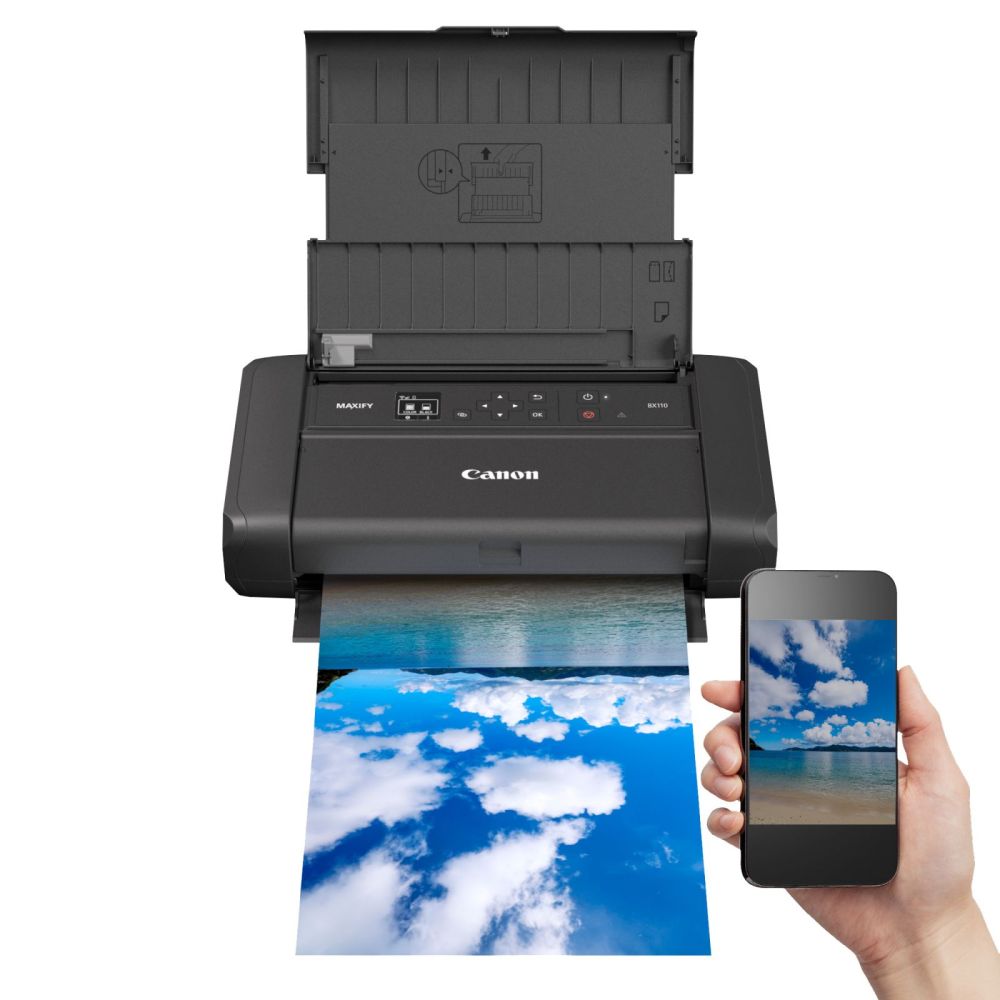

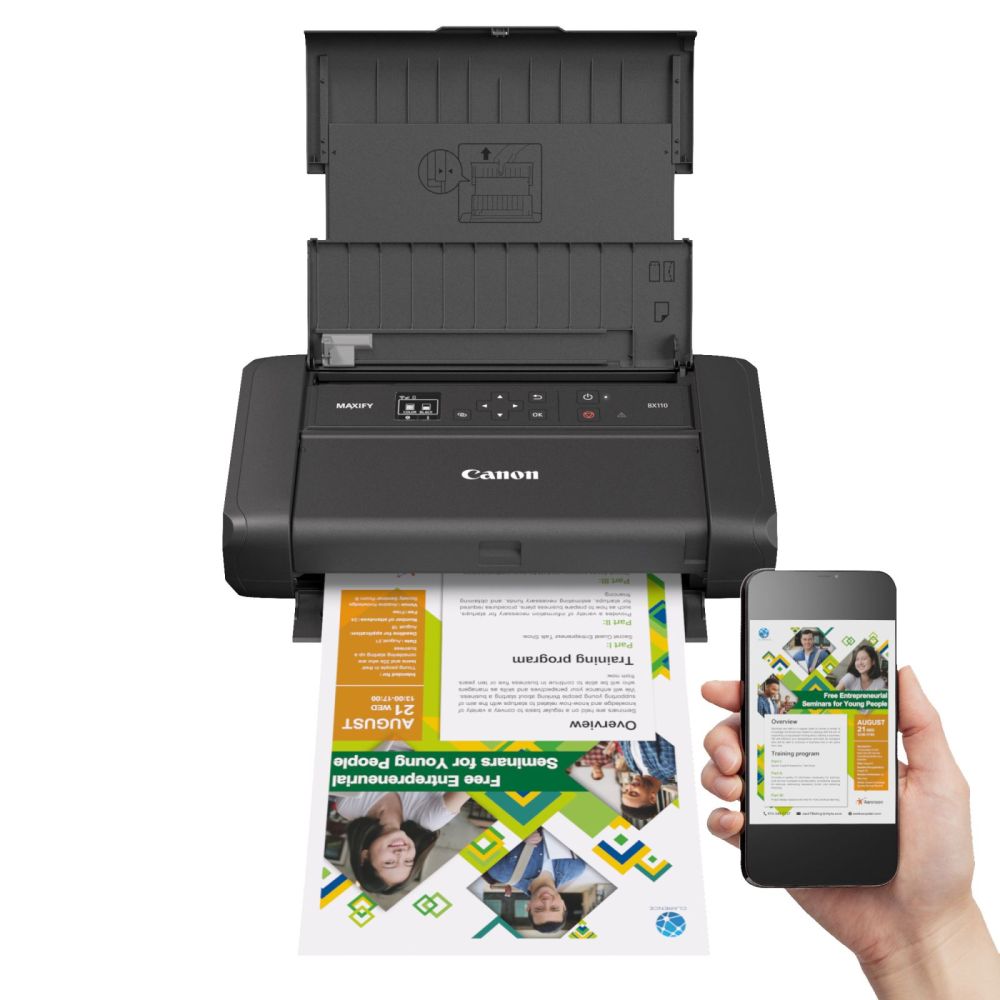

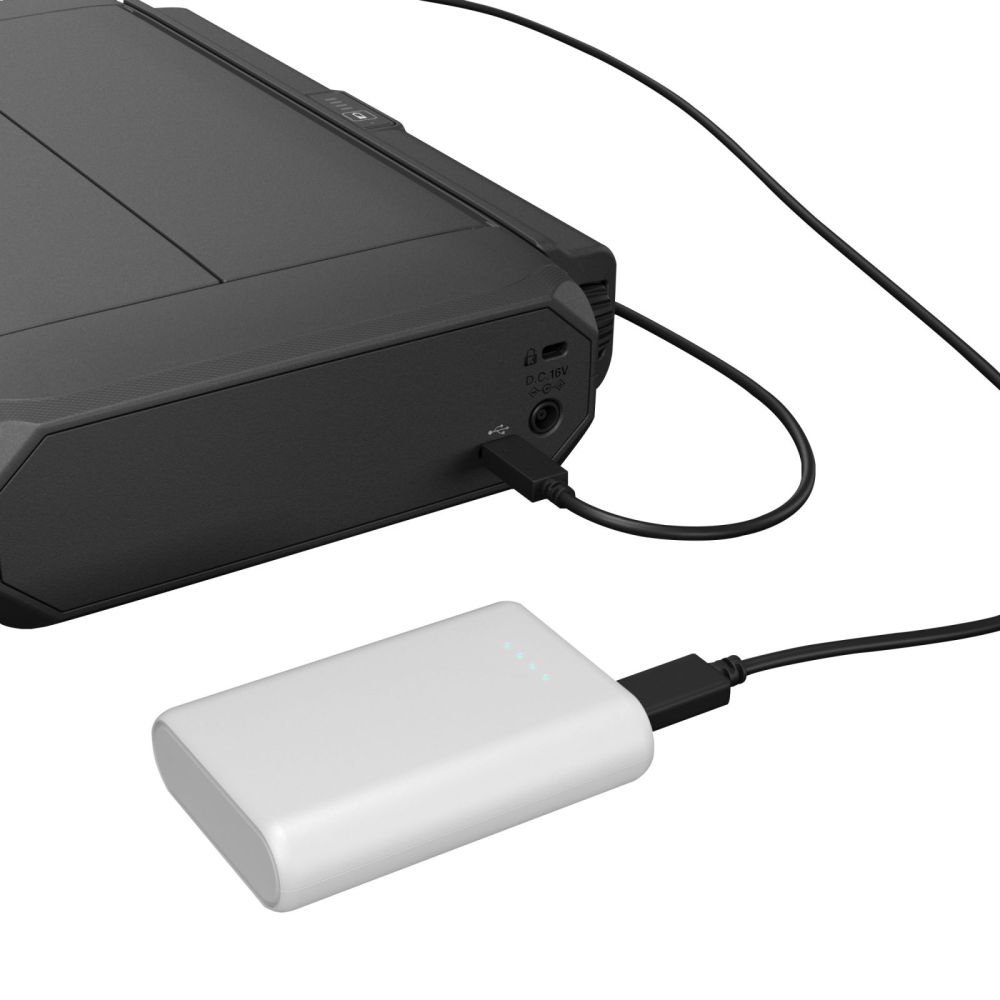

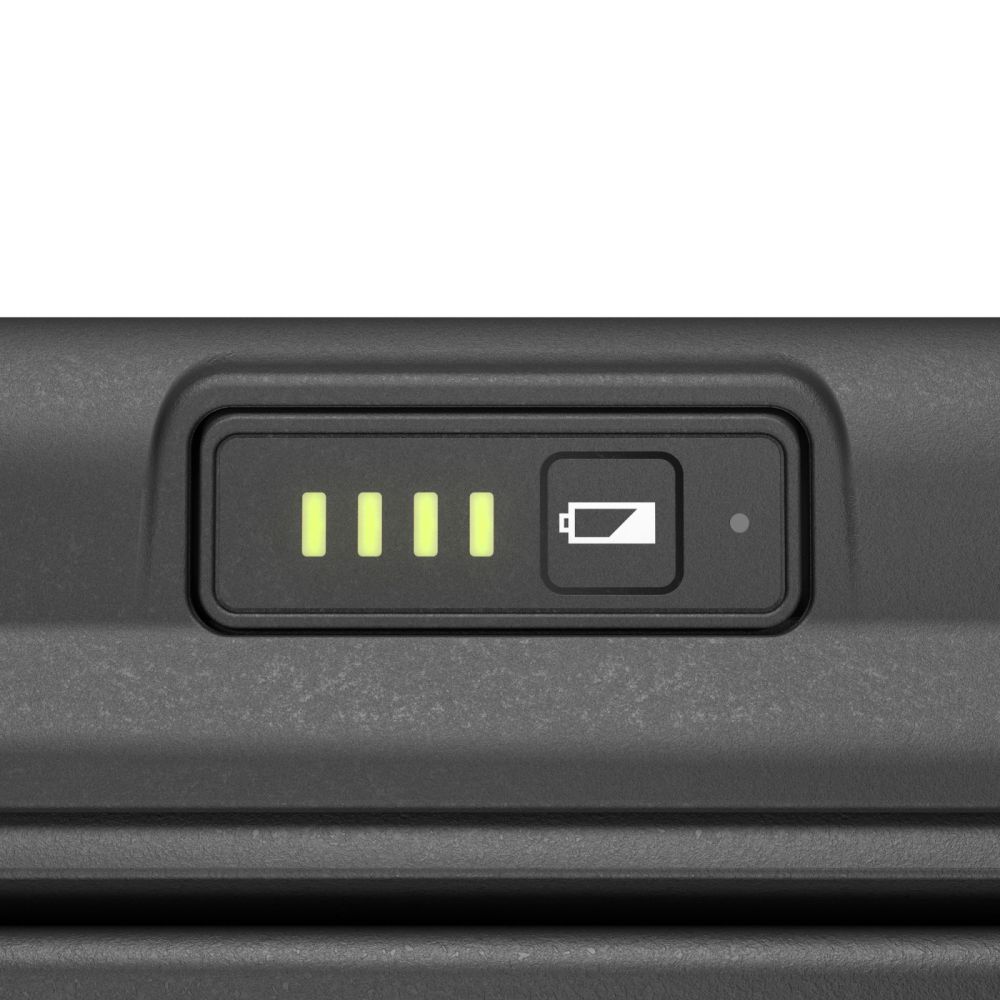

The printer is suitable for mobile work environments such as construction sites, vehicles, or temporary locations where a fixed power supply or network connection is not available. The integrated battery function enables up to 330 print jobs per full charge, and the battery can be charged via a USB-C cable both in the office and on the go. The wireless connection via WLAN and Wi-Fi Direct allows printing from smartphones, tablets, and laptops without a router. Support for AirPrint (iOS), Mopria (Android), and the Canon PRINT app extends compatibility with mobile devices.

Functions and Equipment in Detail

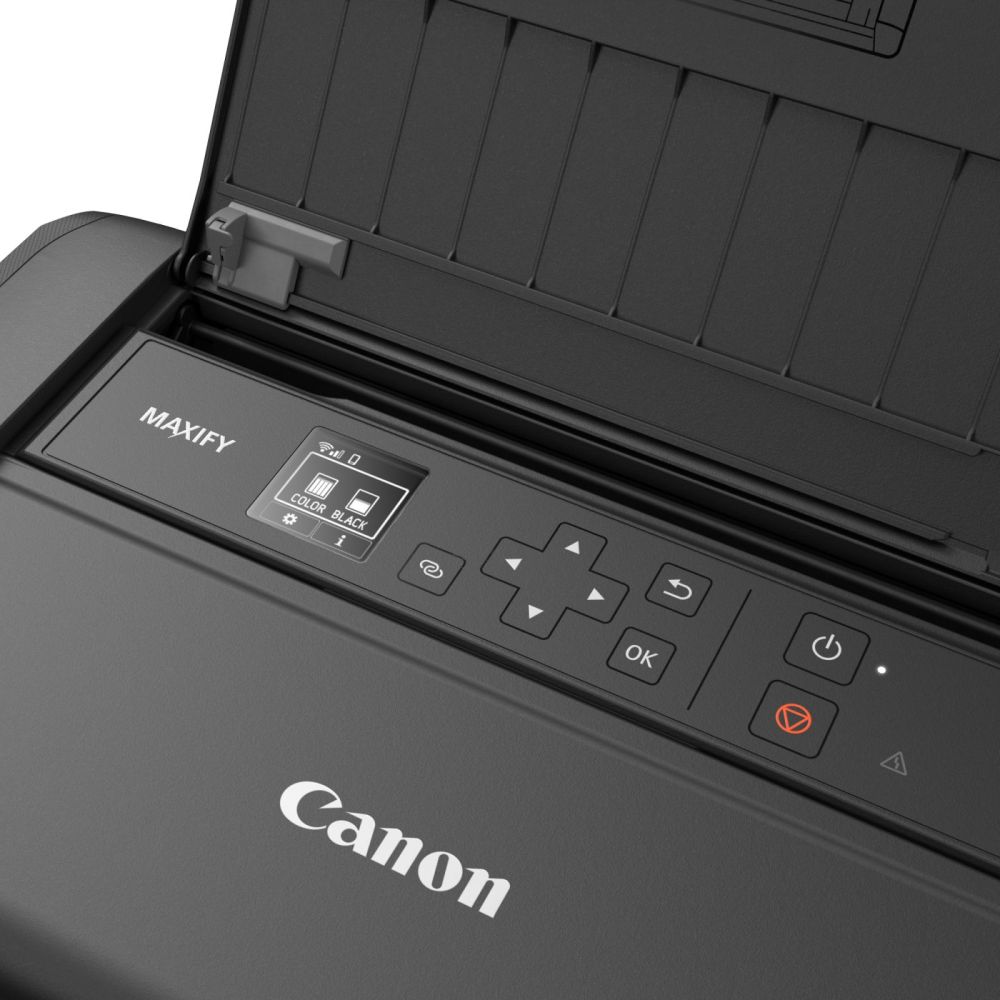

The printer features a 3.66 cm (1.44 inch) OLED display, which simplifies operation and shows information such as ink level and connection status. The Quick Print function allows saving up to five individual print templates, which can be printed directly from the device without connecting to a computer or mobile device. This is particularly useful for frequently used forms or contracts. The printer supports manual duplex printing, enabling double-sided printing, although it is not automatic.

Technology Explained Simply

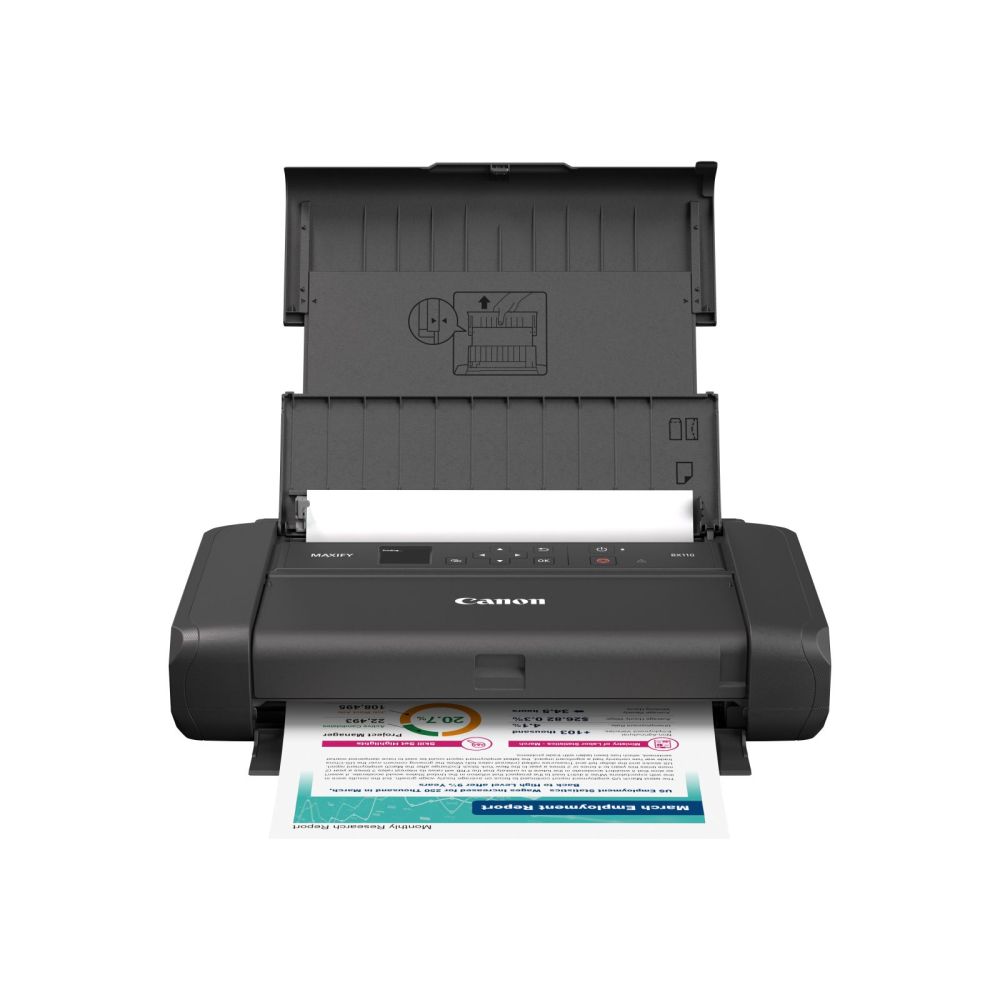

The print resolution of 4800 x 1200 DPI ensures high detail accuracy, especially for photos and graphic representations. The pigment black ink offers high resistance to smudging and light, while the dye-based color ink produces vibrant colors. The maximum paper size is A4, with support for formats such as A5, B5, Legal, Letter, envelopes (DL, Com-10), and photo paper in various sizes (4x6, 5x7, 7x10, 8x10). The paper weight can range from 64 to 275 g/m², including special Canon papers such as Photo Glossy Plus II or Matte paper up to 275 g/m². The total paper capacity is 50 sheets in the input tray.

Compatibility and Accessories

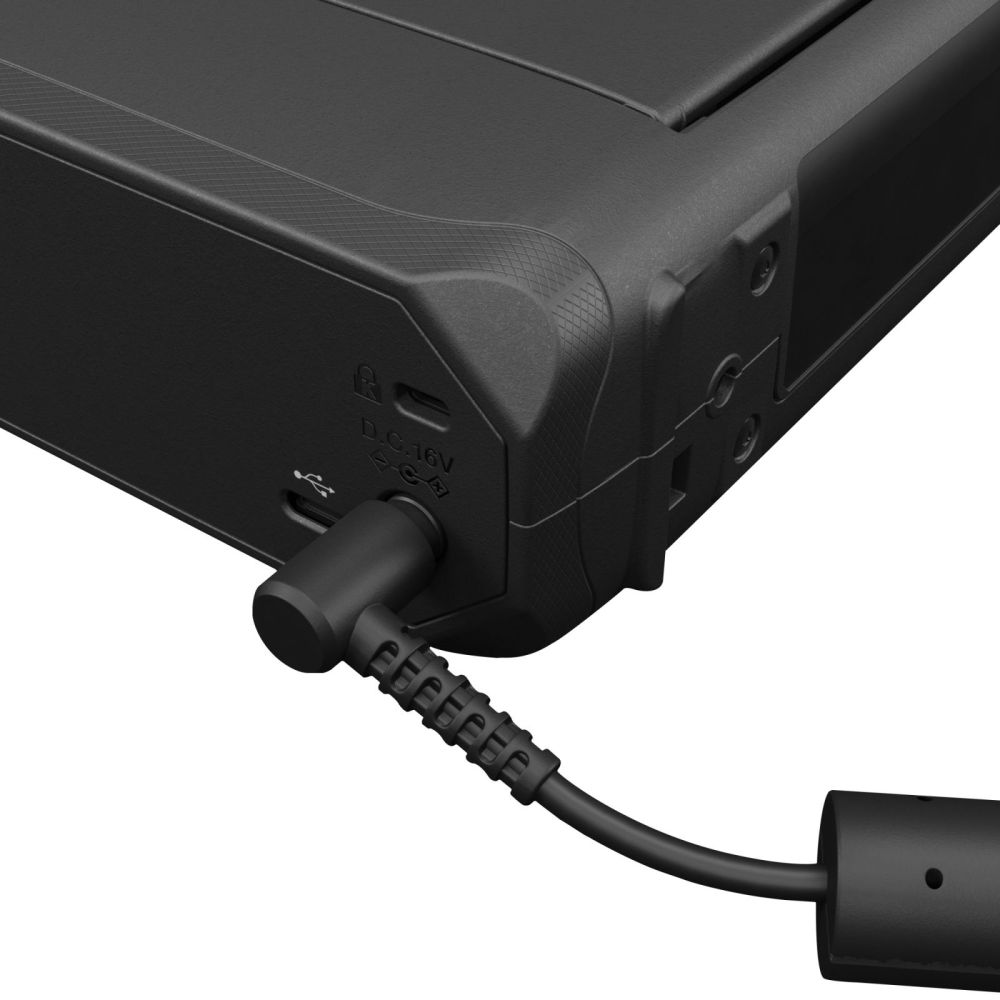

The printer is compatible with operating systems such as Windows 10, 11, 8.1, Windows Server 2008 R2 to 2022, Mac OS X 12.0 to 15.0, as well as Android, ChromeOS, iOS, and iPadOS. Network functions include WLAN (802.11a/b/g/n/ac) and Wi-Fi Direct, with supported security algorithms including WPA2-AES, WPA2-EAP, WPA2-PSK, WPA3-EAP, and WPA3-SAE. Interfaces include USB and USB-C for battery charging. Print speed is approximately 9.0 ISO pages per minute in black and white and 5.5 ISO pages per minute in color. For borderless printing in 10 x 15 cm format, the print time is approximately 53 seconds.

Installation and Mounting

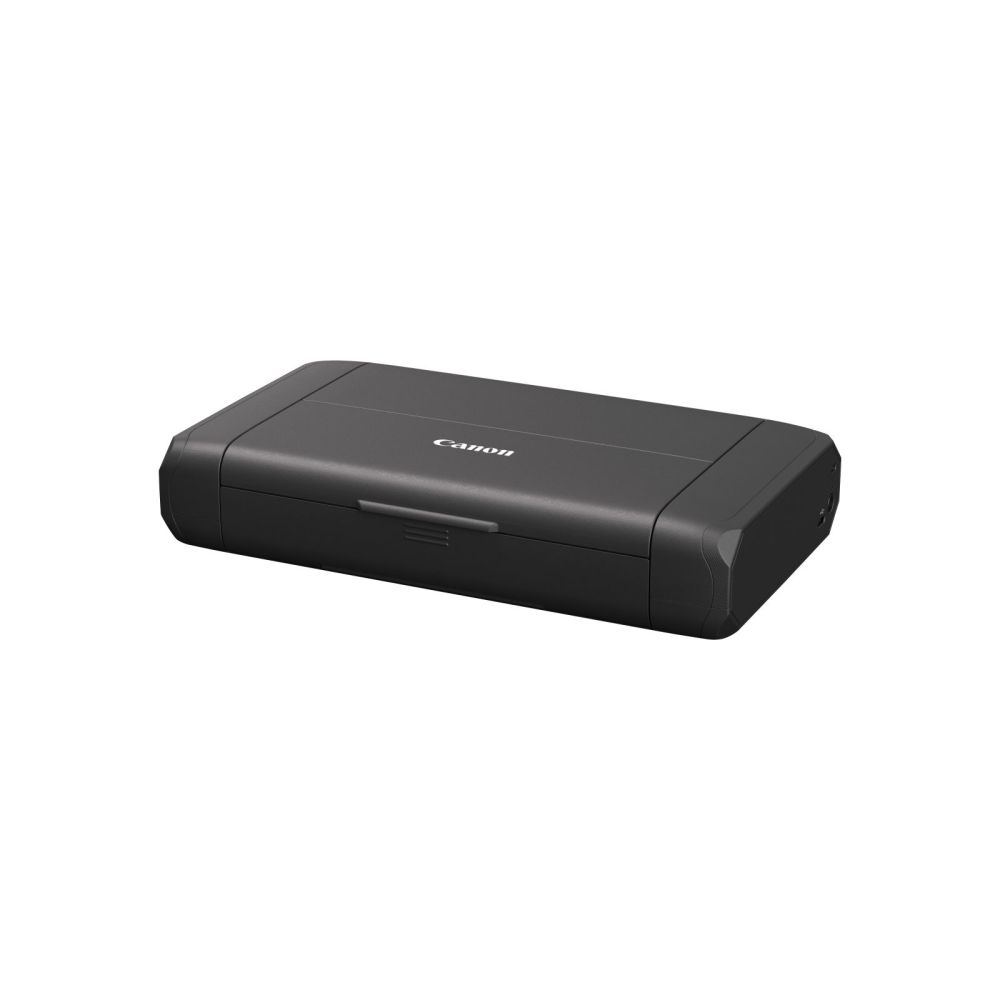

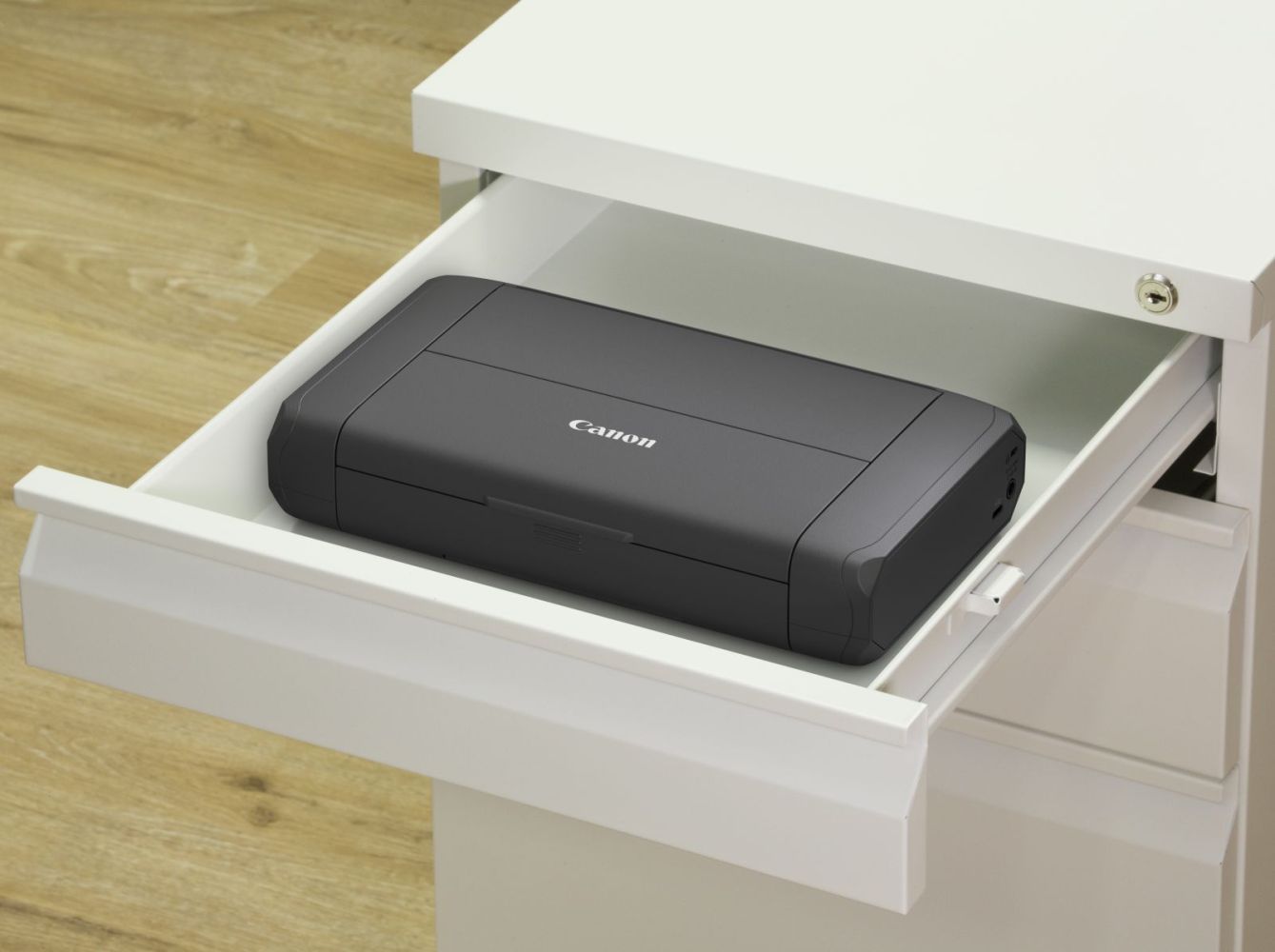

The printer is compact (322 mm width, 210 mm depth, 66 mm height) and lightweight (2.3 kg), making it easy to transport and place. Installation is done using the included cables (AC power adapter, USB cable) and software installation via the respective operating systems. Operation is performed via the OLED display and buttons on the device. The battery function requires no additional installation, as the battery is already integrated into the device.

Operational Advantages

The printer features a low operating noise level of 40.5 dB, making it suitable for office environments. Power consumption is 8 W in print mode, 1.1 W in standby, and 0.15 W in off state. Energy efficiency corresponds to the Energy Star Typical Energy Consumption (TEC) of 0.24 kWh/week. Operating conditions range from 5 to 35 °C temperature and 10 to 90 % relative humidity. Using Canon special papers enables optimal print results, especially for photo printing.

Scope of Delivery

The printer is delivered with an ink cartridge (PGI-35 black and CLI-36 color), an AC power adapter, and a USB cable. The battery function is already integrated into the device and is included in the delivery.

Design
Market positioning	Home & office
Product colour	Black
Display	OLED
Display diagonal	3.66 cm (1.44")
Built-in display
Colour display
Features
Duplex printing mode	Manual
Printing colours	Black, Cyan, Magenta, Photo black, Yellow
Number of print cartridges	2
Duplex printing
Colour
Input & output capacity
Total number of input trays	1
Total input capacity	50 sheets
Maximum number of input trays	1
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	WPA2-AES, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE
Ethernet LAN
Wi-Fi
Wi-Fi Direct
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Cables included	AC, USB
Cartridge(s) included
Paper handling
Maximum ISO A-series paper size	A4
Paper tray media types	Envelopes, Photo paper, Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Legal, Letter
Envelopes sizes	Com-10, DL
Photo paper sizes (imperial)	4x6,5x7,7x10,8x10
Paper tray media weight	64 - 275 g/m²
Performance
Sound pressure level (printing)	40.5 dB
Ports & interfaces
USB port
Power
Power consumption (printing)	8 W
Power consumption (off)	0.15 W
Power consumption (standby)	1.1 W
Energy Star Typical Electricity Consumption (TEC)	0.24 kWh/week
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Maximum resolution	4800 x 1200 DPI
Borderless printing
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8.1
Mac operating systems supported	Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	Android, ChromeOS, iOS, iPadOS
Weight & dimensions
Width	322 mm
Depth	210 mm
Height	66 mm
Weight	2.3 kg

---
