CANON PF-04 printhead standard capacity 1pack content_copy

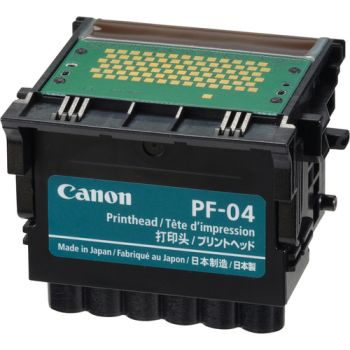

The Canon print head with manufacturer number 3630B001, type PF-04, is a replacement print head for professional large-format printers of the imagePROGRAF iPF series. It serves as a central component in the printing process, responsible for the precise and even application of ink onto the print medium. The print heads are specifically designed for the models iPF650, iPF655, iPF750, iPF755, iPF765, iPF760, iPF750Shcool and iPF750Poster, with compatibility explicitly stated in the manufacturer's specifications. The printing technology is based on the inkjet process, in which fine ink droplets are precisely applied to the paper to achieve high-quality print results.

Applications

The print head is designed for use in professional environments where high print quality and reliability are required. This includes, among others, architecture, engineering, graphic design, and the production of technical drawings, plans, and high-resolution images. Its use in large-format printers makes it particularly suitable for applications requiring large areas to be printed with high detail accuracy.

Functions and Equipment in Detail

The PF-04 print head features a total of 15,360 nozzles, which eject ink droplets with a volume of 4 picoliters. This technology enables a very high resolution of 2400 x 1200 dpi, allowing fine lines and sharp details to be reproduced. Line precision is ±0.10 %, and the thinnest lines can achieve a width of 0.02 mm. These values are crucial for achieving consistently clean and sharp print results, especially for technical drawings and graphic representations. The new nozzle shape reduces the formation of satellite droplets, resulting in cleaner line tracking and less ink smearing.

Technology Explained Simply

Inkjet technology works by selectively heating or electrostatically moving ink droplets, which are then applied to the paper. The PF-04 print head uses a highly precise, densely packed nozzle arrangement, ensuring even and fine ink distribution. The 4-picoliter droplets ensure high detail accuracy, while the total number of nozzles increases print speed and coverage area. Reducing satellite droplets improves image quality, especially for fine lines and text, by avoiding unwanted ink spots.

Compatibility and Accessories

The print head is specifically designed for the mentioned Canon printer models. Compatibility includes the models iPF650, iPF655, iPF750, iPF755, iPF765, iPF760, iPF750Shcool and iPF750Poster.

Installation and Mounting

Installation is performed by simply inserting the print head into the designated slot in the printer. The manufacturer's instructions emphasize easy and quick installation, with no additional tools or special preparations required. After installation, the printer control typically performs an automatic calibration to ensure print quality.

Advantages in Operation

The print head offers high durability, meaning it can be operated for an extended period without replacement before maintenance or replacement becomes necessary. This reduces operational interruptions and maintenance costs. The long-lasting consistent print results ensure high process reliability, especially in environments where consistent quality is critical. The easy and quick installation supports efficient maintenance and minimizes labor effort during replacement procedures.

Logistics data
Harmonized System (HS) code	84439990
Performance
Compatibility	iPF650, iPF655, iPF750, iPF755, iPF765, iPF760, iPF750Shcool, iPF750Poster
Print technology	Inkjet

---
