Canon PF-03 Printhead - Inkjet content_copy

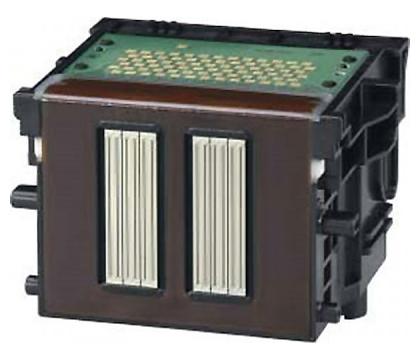

The Canon PF-03 print head (manufacturer number 2251B001) is a replacement print head for professional large-format printers of the IPF series. It serves as a central component in the inkjet printing process and ensures precise and even application of ink onto the print medium. The print heads are specifically designed for use in high-quality plotter systems used in architecture, engineering, and design offices, as well as in the graphic industry.

Applications

The print head is intended for a wide range of Canon IPF models, including the IPF500, IPF600, IPF700, IPF710, IPF8000, IPF8100, IPF9000, IPF5000, IPF6000, IPF6100, IPF5100, IPF820, IPF720, IPF9100, IPF810, and IPF605 series. These printers are typically used for producing technical drawings, architectural plans, photo prints, and other high-resolution large-format prints. Compatibility with multiple models enables flexible use in various work environments.

Features and Equipment in Detail

The PF-03 print head operates using inkjet technology, in which fine ink droplets are precisely applied to the paper. This technology enables high print quality with sharp contours and fine details. The print heads are designed for use with specific ink formulations developed for the respective printer models. The precise design of the print head ensures even ink distribution and minimizes the occurrence of streaks or color errors.

Technology Explained Simply

A print head is an integrated component consisting of multiple micro-channels through which ink is guided. During printing, the ink is atomized into small droplets by thermal or piezoelectric impulses and applied to the medium. The PF-03 print head is designed for use in professional environments where high printing speed and reliability are required. Inkjet technology enables high resolution and color accuracy, which are essential for technical and creative applications.

Compatibility and Accessories

The print head is specifically developed for the mentioned Canon IPF models. It is not suitable for other printer brands or models. Compatibility includes both older and newer models of the IPF series, enabling broad applicability in existing system environments.

Installation and Mounting

Installation of the print head typically involves replacing the defective or worn head in the printer. The exact procedure is described in the user manual of the respective printer model. Mounting does not require special tools, but careful handling is necessary to avoid damaging sensitive components. After replacement, calibration of the print head is usually required to ensure optimal print quality.

Operational Advantages

Using the Canon PF-03 print head ensures continuous and reliable printing performance. The high print quality and compatibility with a wide range of models make it a valuable replacement component for companies that depend on the stability of their printing systems. Inkjet technology also enables efficient ink usage and reduces wear on the print heads with regular use.

Logistics data
Harmonized System (HS) code	84439990
Performance
Compatibility	IPF6200, IPF700, IPF710, IPF8000, IPF610, IPF600, IPF8100, IPF500, IPF9000, IPF6000, IPF5000, IPF6100, IPF5100, IPF820, IPF720, IPF9100, IPF810, IPF605
Print technology	Inkjet

---
