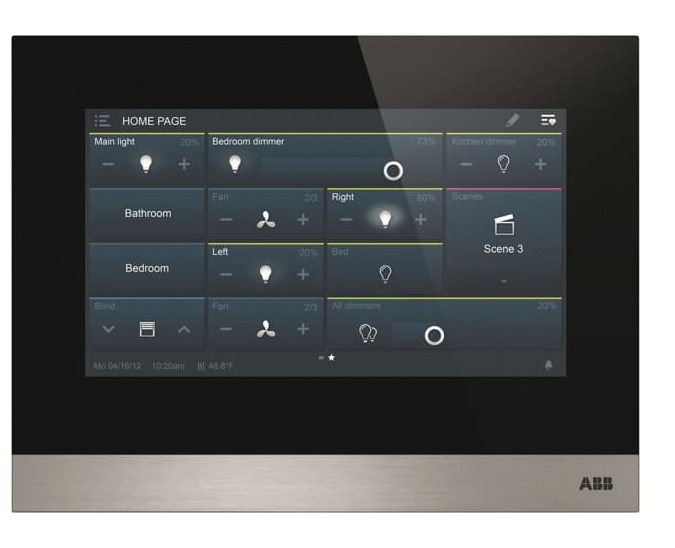

Busch Jaeger 2TMA130050B0068 BJ H8236-5B-03 IP touch 7 LAN/LAN

Central control panel for Busch-Welcome® IP and optionally Busch-free@home® or Busch-Installationbus® KNX. For central control of up to 64 configurable Busch-free@home® or Busch-Installationbus® KNX functions of the type: switching, dimming, blinds, RTR, scene, Philips HUE. Note: The KNX connection is made using KNXnetIP tunneling. A KNX IP router or a KNX IP interface is required in the system. With integrated room temperature controller and temperature sensor. Display of the video image of the outdoor station. During the conversation, a picture of the visitor can be taken and stored in the image memory. When there is a door call in your absence, three pictures of the visitor are automatically stored in the image memory. Different ring tones can be set for door and floor calls, five polyphonic ring tones are available. Equipped with a hearing loop for coupling the audio signal into hearing aids. Individual ring tones (can be integrated via SD card). Volume of the ring tones can be adjusted. SD card slot for expanding the image memory. Capacitive display with glass surface (resolution: 1024 x 600). With hands-free function. Adjustable hands-free volume. Individual audio absence function. For flush mounting with 42361F-03 For integration into the myBUSCH-JA
EGER portal. Enables the integration of a tablet or smartphone with the Welcome app installed as a mobile indoor unit for audio and video communication. Nominal current: 440mA (24V DC) Power supply via Power-over-Ethernet (PoE) 802.3af. Alternative power supply via plug-in power supply 53011PS-03.
Type: H8236-5B-03
