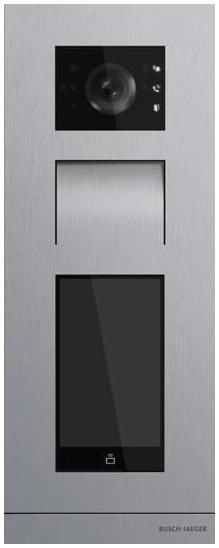

Busch Jaeger 2TMA130010X0027 BJ H81381T-S-03 Outdoor video touch 5´ content_copy

Video camera with automatic day/night switching and infrared LEDs to illuminate night shots. HD camera (1280 x 720 pixels). Diagonal/horizontal/vertical detection angle: 139°/111°/73°. Integrated status display via LED symbols (meets DIN 18040). Integrated RFID reader (MIFARE® DESFire®) Integrated, intuitively operated 5-inch color touch display. Integrated removal sensor (reports an alarm in the Smart Access Point as soon as the device is removed from the socket). Equipped with a hearing loop for coupling the audio signal into hearing aids. Suitable for surface or flush mounting (socket not included in delivery) For surface mounting with 41384S-B-03 For flush mounting with 41384F-B-03. For installation in plastered facades, additionally with 41384PB-03. Power supply via Power-over-Ethernet (PoE) 802.3af. Alternative power supply 24 volts DC, 330 mA. Possibility of connecting an electric door opener (18 V, 4 A pulse, max. 250 mA continuous). Potential-free door opener output (230 V AC, 3 A or 30 V DC, 3 A). Alternative door opener function with REG IP switching actuator (H8304-03). Possibility of connecting an external door sensor to detect the door status after the door has been opened. Possibility of connecting an external door button for opening the door. Impact protection: IK07. Front panel made of 3 mm stainless steel. Punched labeling film is included. Removal tool is included.

General
Mounting method	Flush mounted (plaster)
Colour	Stainless steel
Height	349
Width	135
Depth	29
Degree of protection (IP)	IP54
Front material	Stainless steel
Impact strength	IK07
Surface treatment	Brushed
Modular construction
With info label
With cover
Protection against vandalism
With camera
IFTTT support available
Manual adjustable camera

---
