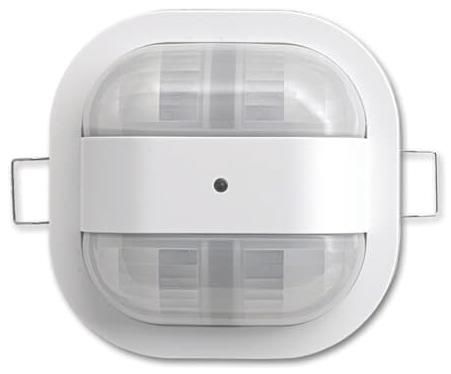

Busch Jaeger 2CKA006800A2744 BJ 6819/51-24 Busch presence detector Corridor BT relay studio white matt
|
229,88 EUR |
|||||||||||
|
( 273,56 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1596798 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA006800A2744 | ||||||||||
| UPC/EAN: | 4011395217665 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Busch Jaeger 2CKA006800A2744:
For brightness and motion-dependent switching of lighting.
With Bluetooth interface for parameterization and operation.
Adjustment of all setting options via smartphone or tablet.
Light control via smartphone or tablet app.
With high-load relay for LED operation.
Detection range (at 3 m installation height): rectangular Walking people: across the detector 30 mx 3 m, frontal 20 mx 3 m.
Extension of the detection range through extension combination.
Installation height 27 mm.
For semi-automatic, comfort and fully automatic operation.
Additional on/off option via button input.
With continuous light / continuous off function (8 hours), can be activated via intelligent extension input.
With selectable presence simulation when not present.
With integrated storage of the duty cycle (energy monitor).
With brightness-independent test mode for evaluating the detection range.
With detection display in test mode. Ceiling mounting via integrated spring bracket.
Anti-twist protection via additional quick clamping.
Adjustment elements accessible from the front.
Monitoring density: 92 sectors with 368 switching segments.
Individual shutdown and sensitivity adjustment of individual sensors possible.
Switch-off delay: approx. 1 min. - 30 min. or short-term pulse adjustable.
With selectable dynamic switch-off delay.
Suitable for suspended ceilings with a panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
When used in conjunction with a relay/contactor, an RC suppressor item no. 6899 must be provided.
Free app for IOS and Android available in the App Store or Play Store.
Recommendation: HaloX® 100 from Kaiser (item no. 1281-00) with corresponding cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg
Type: 6819/51-24
