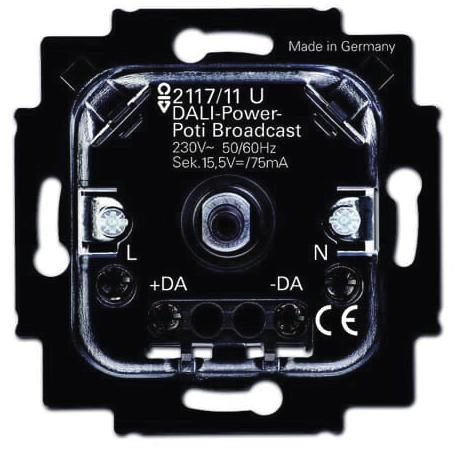

Busch Jaeger 2CKA006599A2986 Year 2117/11 U DALI power potentiometer broadcast, Busch-Dimmer content_copy

Busch rotary dimmer DALI
With integrated DALI power supply.
For broadcast operation (central telegram).
For switching and controlling up to 64 DALI operating devices in accordance with IEC 62386 (e.g. electronic ballasts and transformers with DALI interface).
With rotary control and push-OFF button.
Short-circuit and overload proof (electronic fuse).
Switch-on brightness and basic brightness can be set in the event of a power failure.
With integrated LED orientation light.
Color of the orientation light can be set (18 colors + OFF).
Parallel connection of up to 5 devices in passive operation.
Parallel connection of up to 3 devices in active operation.
Not suitable for combination with DALI sensors or control units from other manufacturers.
DALI voltage: 15.5 V =
Max. output current: 75 mA
Power consumption: < 2.5 W
Max. number of DALI operating devices:
with one active DALI potentiometer: 37
with 3 parallel active DALI potentiometers: 111
In active operation, it supplies the necessary power for additional DALI operating and control devices on mains voltage.
Without mains voltage, in passive operation, the potentiometer in the DALI bus serves as an additional control point.
Max. DALI cable length: 300 m (at 1.5 - 2.5 mm²).
Without central plate.
Nominal voltage: 230 V~, +10 % / -10 %
Nominal frequency: 50 Hz / 60 Hz
Protection class (device): IP 20
Temperature range (device): 0 °C - 35 °C
Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073
