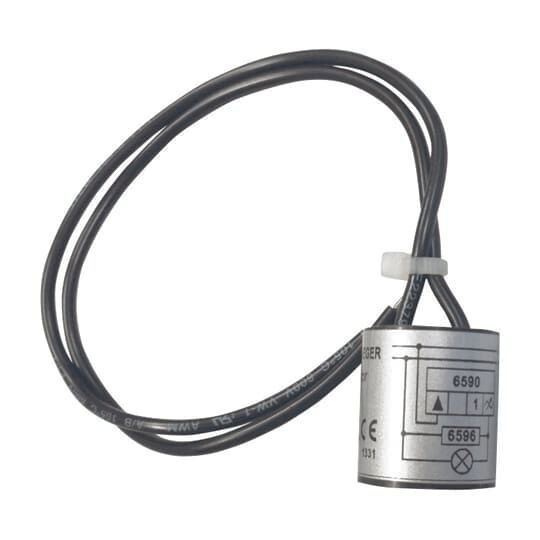

Busch Jaeger 2CKA006599A2290 6596 compensator

Your rating:
Average rating
product review for Busch Jaeger 2CKA006599A2290 6596 compensator
( 4.5 / 5 ) 97 ratings
Busch Jaeger 2CKA006599A2290
This image may differ from the desired article.
Busch Jaeger 2CKA006599A2290Busch Jaeger 2CKA006599A2290
22,61 EUR
( 26,91 EUR incl. VAT )
≈ £18.83  |  ≈ $24.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Busch Jaeger 2CKA006599A2290 6596 compensator
Lieske Part No.:451295
Mfg Part No: 2CKA006599A2290
UPC/EAN: 4011395638507
Weight:0.0165 kg
Type:6596
Graduated prices net
From piecesPrice per pieces
1521,93 EUR
3021,25 EUR
7020,58 EUR
10019,90 EUR

Product information for Busch Jaeger 2CKA006599A2290:

The Busch Jaeger compensator type 6596 is an electronic component designed to suppress unwanted electrical phenomena in electrical installations, particularly when controlling lighting fixtures and blind control systems. It is installed in parallel to lighting fixtures or control lines to prevent disturbances such as self-ignition, afterglow, or noise generation. The compensator is specifically designed for use in installations with energy-saving or LED lamps, NV halogen lamps, as well as electronic transformers operated via push-button dimmers or switches with ambient lighting.

Applications

The compensator 6596 is used to prevent self-ignition of energy-saving or LED lamps when operated with switches featuring integrated ambient lighting. This is particularly relevant when the lighting is connected in parallel to the lamp. Additionally, it prevents afterglow of NV halogen or LED lamps in the switched-off state, which can occur due to hum voltages or when controlled via push-button dimmers without a neutral conductor connection. In blind control group control systems, it serves to eliminate hum voltages on control lines, especially between the control wires 'Up' and 'Down' and the neutral conductor.

Functions and Equipment in Detail

The compensator acts as an electrical load balancing device, compensating for parasitic voltages and currents that arise from capacitive or inductive coupling. It thereby prevents lighting fixtures from unintentionally igniting or glowing after being switched off, which is particularly common with LED and energy-saving lamps that are sensitive to small residual voltages. In electronic transformers operated via push-button dimmers without a neutral conductor connection, it reduces noise generation in the switched-off state, which is caused by incomplete de-energization of the primary side.

Technology Explained Simply

The compensator 6596 operates by being connected in parallel to the affected electrical components — whether a lighting fixture, a transformer primary side, or a control line. It creates an electrical path that diverts hum voltages, which arise from capacitive coupling or inductive effects, thereby reducing the voltage across the load to a level that is non-critical for the affected devices. This is achieved without additional power supply, as the compensator operates passively and consumes no energy. The effect is independent of the operating voltage of the installation, as long as the voltage remains within technical limits.

Compatibility and Accessories

The compensator is suitable for use in electrical installations with energy-saving and LED lighting, NV halogen lamps, as well as electronic transformers. It is specifically designed for control via push-button dimmers without a neutral conductor connection. The application is carried out in parallel to the load, whether it is a lighting fixture or a control line in blind control systems. Compatibility is ensured as long as the electrical conditions (voltage, frequency, load type) fall within typical installation scenarios.

Installation and Mounting

The compensator is directly installed into the electrical circuit, in parallel with the load. The connection cable has a length of approximately 235 mm, allowing for flexible placement. Mounting is performed by connecting the leads to the appropriate points in the circuit — for example, in parallel with the lighting fixture or between the control wire and neutral conductor. The physical dimensions are a diameter of 22 mm and a length of 25 mm, making it suitable for use in standard installations.

Advantages in Operation

Using the compensator 6596 increases the reliability of the electrical installation. Unwanted effects such as self-ignition, afterglow, or noise generation are avoided, which extends the lifespan of lighting fixtures and transformers and improves operational safety. Installation is simple and requires no additional tools or special skills. The passive mode of operation means no additional power supply is required, and the effect becomes active immediately after installation.

General
Diameter22 mm
Length connecting cordca. 235 mm
