Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green

Your rating:
Average rating
product review for Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green
( 4.4 / 5 ) 19 ratings
Busch Jaeger 2CKA002083A0818
This image may differ from the desired article.
Busch Jaeger 2CKA002083A0818Busch Jaeger 2CKA002083A0818
16,89 EUR
( 20,10 EUR incl. VAT )
≈ £14.07  |  ≈ $18.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green
Lieske Part No.:319090
Mfg Part No: 2CKA002083A0818
UPC/EAN: 4011395993170
Weight:0.1205 kg
Type:20 EWN-53
Graduated prices net
From piecesPrice per pieces
1516,13 EUR
3015,37 EUR
7014,61 EUR
10013,85 EUR

Product information for Busch Jaeger 2CKA002083A0818:

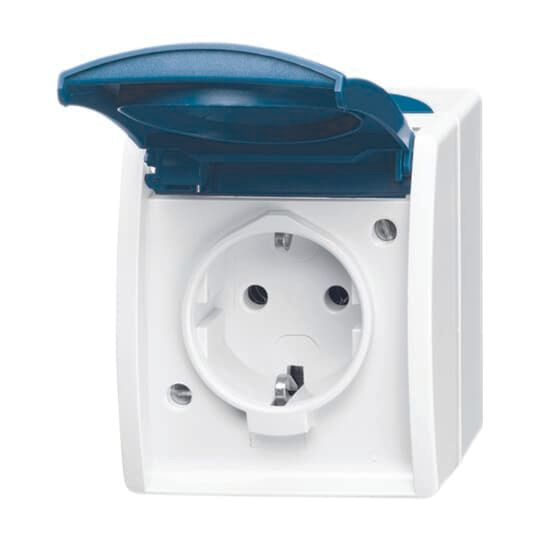

The article 20 EWN-53 from Busch Jaeger is a surface-mounted socket outlet from the ocean® design line, specifically designed for connecting electrical appliances. The socket outlet features a protection rating of IP44, meaning it is dust- and splash-water protected, making it suitable for use in damp or lightly soiled environments, such as bathrooms, kitchens, or on exterior walls. The unit is finished in blue, corresponding to RAL 7035, and features a matte surface made of thermoplastic. The socket outlet is halogen-free and offers an insulated installation, enhancing safety during installation.

Surface-mounted socket outlet with integrated labelling field
The socket outlet is designed as a surface-mounted component, with mounting achieved via screws. It includes an integrated labelling field measuring 57.8 mm × 9.8 mm, which can be used to identify the connection. The device dimensions are 74 mm (width) × 83 mm (height) × 55 mm (depth). The mounting orientation is specified as vertical. The device is equipped with a hinged cover that protects access to the socket outlet and enhances safety.

Technical specifications and safety features
The socket outlet is rated for a nominal voltage of 250 V and a nominal current of 16 A, with an operating frequency of 50 Hz. The impact resistance corresponds to standard IK04, providing a certain level of mechanical durability against minor impacts and vibrations. The socket outlet does not feature a signal lamp, function lighting, orientation lighting, surge protection, residual current protection, or fine fuse. It is a single-phase socket outlet with a socket outlet connection that is not switchable. The through-feed function is present, meaning the power supply is passed through the device.

Compatibility and application areas
The socket outlet is part of the ocean® design line and therefore matches visually with other products from this series. It is suitable for use in indoor environments with increased humidity or outdoors, provided the IP44 protection rating is sufficient. The socket outlet is not lockable, does not feature an ejection mechanism, and is not equipped with a twisted central insert. The surface is untreated and not coated with antibacterial treatment.

Mounting and installation
Mounting is surface-mounted, with screw fastening provided. The socket outlet is designed for vertical mounting. Due to the insulated installation, a safe electrical connection is ensured. The socket outlet is not equipped with a text field or marking, but only offers the integrated labelling field for individual labelling.

Operational benefits
The socket outlet provides a robust and safe connection for electrical appliances. The IP44 protection rating and IK04 impact resistance make it a suitable solution for areas with increased stress. The integrated labelling surface allows for clear identification of the connection, facilitating maintenance and use. The halogen-free construction meets modern requirements for material selection in electrical installations.

The socket outlet does not include additional components such as batteries, tools, or documentation.

General
Number of active Pins (round)2
Number of active Pins (flat)0
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
ColourBlue
RAL-number (akin)7035
Mounting methodSurface mounted (plaster)
Type of fasteningMounting with screw
MaterialOther
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
Nominal current16
Nominal voltage250
Frequency50
Suitable for degree of protection (IP)IP44
Impact strengthIK04
Width of device74
Height of device83
Depth of device55
Mounting directionVertical
Number of ports USB-A0
Number of socket outlets1
With signal lampno
With hinged lidyes
With child-protectionno
Label space/information surfaceyes
Transparentno
Lockableno
Eject-mechanismno
Insulated mountingyes
With function lightingno
With orientation lightingno
Over voltage protectionno
Fault current protectionno
With miniature fuseno
Halogen freeyes
Antibacterial treatmentno
With on/off switchno
With loop through functionyes
Rotated central insertno
IFTTT support availableno


Questions & answers

What is the delivery time of Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green?

The article Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Busch Jaeger 2CKA002083A0818 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green always at the best possible price. We can give you a discount of 2% on Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Busch Jaeger 2CKA002083A0818 20EWN-53 socket outlet ocean IP44 grey/blue-green we can offer you a price of 16,13 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
