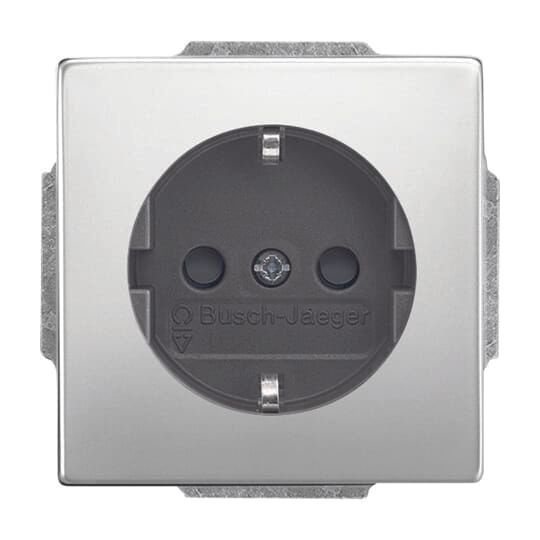

Busch Jaeger 2CKA002013A5276 20EUCKS-866 socket outlet insert pur stainless steel

Your rating:
Average rating
product review for Busch Jaeger 2CKA002013A5276 20EUCKS-866 socket outlet insert pur stainless steel
( 4.5 / 5 ) 11 ratings
Busch Jaeger 2CKA002013A5276
This image may differ from the desired article.
Busch Jaeger 2CKA002013A5276Busch Jaeger 2CKA002013A5276
24,22 EUR
( 28,82 EUR incl. VAT )
≈ £20.27  |  ≈ $26.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x Busch Jaeger 2CKA002013A5276 20EUCKS-866 socket outlet insert pur stainless steel
Lieske Part No.:111243
Mfg Part No: 2CKA002013A5276
UPC/EAN: 4011395087534
Weight:0.095 kg
Type:20 EUCKS-866
Graduated prices net
From piecesPrice per pieces
1523,31 EUR
3022,40 EUR
7021,50 EUR
10020,59 EUR

Product information for Busch Jaeger 2CKA002013A5276:

The article 20 EUCKS-866 from Busch Jaeger is a flush-mounted socket outlet insert from the design line pur edelstahl, designed for connecting electrical appliances in indoor environments. It features a SCHUKO® socket outlet with a 2-pole connection (2 P + E) and is designed for use in electrical installations with a rated voltage of 250 V and a rated current of 16 A. The frequency is 50 Hz, which corresponds to the standard frequency in the German power grid. The insert is suitable for a protection rating of IP20, making it appropriate for use in indoor environments without special environmental conditions. The impact resistance is IK03, which withstands low mechanical stress. The surface is matte and made of stainless steel, with an antifingerprint coating to minimize fingerprints. The device dimensions are 71 mm (width) × 71 mm (height) × 45 mm (depth), requiring a minimum depth of the device box of 31 mm. Installation is carried out using claw/screw mounting, and the insert is designed for insulated mounting, ensuring safe electrical isolation.

Applications
This socket outlet insert is intended for use in residential and commercial spaces where a robust and aesthetically pleasing socket outlet is required. The design line pur edelstahl features a timeless, metallic appearance that integrates well into modern interior designs. The use of stainless steel ensures high corrosion resistance and durability. The antifingerprint coating reduces visible soiling from touch, simplifying maintenance. The socket outlet is equipped with enhanced shock protection in accordance with VDE 0620, increasing safety during use, particularly in areas with higher accident risk.

Functions and Equipment in Detail
The insert features a SCHUKO® socket outlet with a 2-pole connection, designed for a rated current of 16 A and a rated voltage of 250 V. The socket outlet is equipped with safety shutters (Safety+), which prevent access to the contacts when no plug is inserted. This increases safety, especially for children. The feed-through function allows multiple socket outlets to be connected in a single circuit, ensuring continuous power supply. The socket outlet is without indicator lamp, without function lighting, and without orientation lighting. There is no labeling area or text fields, and the insert is without print/labeling. The color is stainless steel, and the surface is uncoated and matte.

Technology Explained Simply
The SCHUKO® socket outlet is a standard in Germany and enables the connection of devices with a protective earth conductor (grounding). The 2-pole connection (2 P + E) ensures safe and reliable power supply. The feed-through function allows multiple socket outlets to be connected in a single circuit, enabling power supply at multiple points. The safety shutters (Safety+) protect against accidental contact with the contacts, especially for children. The insulated mounting ensures that the insert is electrically isolated from the surrounding environment, increasing safety. The antifingerprint coating reduces visible soiling, simplifying maintenance.

The enhanced shock protection in accordance with VDE 0620 provides additional safety. The impact resistance IK03 means the insert is protected against light mechanical stress, such as that occurring during normal use. The protection rating IP20 protects against contact with fingers and solid foreign objects, but not against water or dust, making it suitable for indoor use.

Compatibility and Accessories
The socket outlet insert is intended for use with matching frames from the design line pur edelstahl. Available accessories include the 1724-866K frame 4-way pur edelstahl and the 1723-866K frame 3-way pur Edelstahl, enabling an aesthetically uniform installation. The frames are also made of stainless steel and match the insert both visually and technically. Installation is carried out using claw/screw mounting, ensuring secure fastening in the flush-mounted system.

Installation and Mounting
Installation is performed using the flush-mounted method, requiring a minimum depth of the device box of 31 mm. Mounting is done via claw/screw mounting, ensuring secure and stable fastening in the plaster. The insulated mounting ensures that the insert is electrically isolated from the surrounding environment, increasing safety. The feed-through function allows multiple socket outlets to be connected in a single circuit, ensuring continuous power supply.

Operational Advantages
The insert offers high safety through enhanced shock protection and safety shutters, reducing the risk of electric shock. The antifingerprint coating reduces visible soiling, simplifying maintenance. The design line pur edelstahl provides a timeless, metallic appearance that integrates well into modern interior designs. The feed-through function enables flexible power supply across multiple socket outlets. The use of stainless steel ensures high corrosion resistance and durability. The insulated mounting increases electrical safety. The protection rating IP20 and impact resistance IK03 are suitable for indoor use where no special environmental conditions exist.

General
Number of active Pins (round)2
Number of active Pins (flat)0
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
ColourStainless steel
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw and screw
MaterialOther
Material qualityStainless steel
Surface protectionUntreated
Surface finishingMatt
Nominal current16
Nominal voltage250
Frequency50
Suitable for degree of protection (IP)IP20
Impact strengthIK03
Width of device71
Height of device71
Depth of device45
Min. depth of built-in installation box31
Number of ports USB-A0
Number of socket outlets1
With signal lampno
With hinged lidno
With child-protectionyes
Label space/information surfaceno
Transparentno
Lockableno
Eject-mechanismno
Insulated mountingyes
With function lightingno
With orientation lightingno
Over voltage protectionno
Fault current protectionno
With miniature fuseno
Halogen freeyes
Antibacterial treatmentno
With on/off switchno
With loop through functionyes
Rotated central insertno
IFTTT support availableno
