Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss

Your rating:
Average rating
product review for Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss
( 4.5 / 5 ) 33 ratings

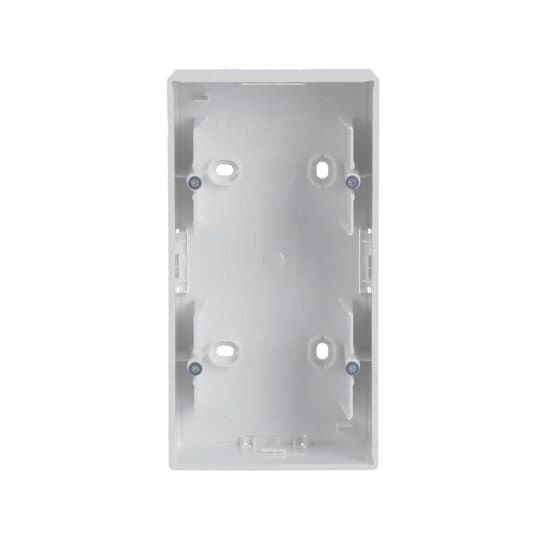

Busch Jaeger 2CKA001799A0902
This image may differ from the desired article.
Busch Jaeger 2CKA001799A0902Busch Jaeger 2CKA001799A0902
27,64 EUR
( 32,89 EUR incl. VAT )
≈ £23.02  |  ≈ $30.32
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss
Lieske Part No.:699292
Mfg Part No: 2CKA001799A0902
UPC/EAN: 4011395065976
Weight:0.103 kg
Type:1702-84
Graduated prices net
From piecesPrice per pieces
1026,81 EUR
2525,98 EUR
5025,15 EUR
7524,32 EUR

Product information for Busch Jaeger 2CKA001799A0902:

The surface-mounted housing 1702-84 from Busch Jaeger is a dual-unit housing designed for modular switchgear programs, specifically developed for the future® linear design line and the platform 63. It serves as a base for mounting inserts, central plates, and faceplates in surface-mounted applications. The housing is available in studiowhite (similar to RAL 9016) and features a glossy, untreated surface made of halogen-free thermoplastic. The construction allows for flexible mounting in both horizontal and vertical orientations, with dimensions of 80 mm (width) × 151 mm (height) × 42 mm (depth). The rear of the housing is equipped with a channel entry and cable entry to facilitate wiring. The protection rating IP20 ensures protection against contact with fingers and against solid foreign objects, but does not protect against water or dust – therefore, it is not suitable for outdoor use or damp environments.

Applications
This housing is intended for indoor use, particularly in residential and office buildings where a modular switching system with the future® linear design line is installed. It is suitable for surface-mounted installations where switch modules are mounted directly onto the wall. Use in damp or wet areas is not intended due to the IP20 protection rating. The studiowhite color blends well with modern, neutral interior spaces and is compatible with various faceplates from the future® linear series.

Functions and Equipment in Detail
The housing provides two units for mounting switch inserts, central plates, and faceplates. The integrated channel entry and cable entry facilitate wiring, although rear entry is not possible. Mounting is done without screw entry, meaning fixation occurs via the designated mounting points on the housing. The surface is glossy and untreated, allowing for easy cleaning. The material is a halogen-free thermoplastic, suitable for its stability and weather resistance in indoor environments.

Technology Explained Simply
The IP20 protection rating means the housing is protected against contact with fingers and against the ingress of solid foreign objects with a diameter of at least 12.5 mm. However, it offers no protection against water or dust, limiting its use to indoor applications only. The use of halogen-free thermoplastic reduces the formation of toxic smoke gases in case of fire, representing a safety feature for indoor spaces. The glossy surface is not coated but corresponds to the natural surface structure of the material.

Compatibility and Accessories
The housing is specifically developed for the future® linear platform 63 and is compatible with various faceplates available for this design line. Suitable accessories include, for example, frame 1722-183K in alusilver, frame 1722-184K in studiowhite, and frame 1722-181K in anthracite. These frames can be mounted onto the housing to complete the appearance of the switching system. The combination with central plates and switch inserts is done directly within the housing, enabled by the designated units.

Mounting and Installation
The housing is mounted in horizontal or vertical orientation, with fixation achieved via the integrated mounting points on the housing. The channel entry and cable entry simplify wiring, allowing cables to be introduced from the front or side. Rear entry is not intended. Installation does not require special tools, but a clean and flat wall surface is necessary to ensure secure mounting.

Advantages in Operation
The housing provides a stable and secure mounting base for modular switch solutions. The use of halogen-free thermoplastic increases safety in the event of fire. The glossy surface is easy to clean and aesthetically fits modern interior spaces. Compatibility with various faceplates allows for individual customization of the switching system. The integrated entries for cables and channels reduce installation time and simplify wiring.

General
Assembly arrangementSurface mounted housing
Number of units2
Mounting directionHorizontal and vertical
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingGlossy
ColourWhite
RAL-number (akin)9016
Degree of protection (IP)IP20
Depth42
Height151
Width80
Suitable for modular domestic switching devicesyes
Halogen freeyes
Transparentno
With cover frame includedno
With duct entryyes
With cable entryyes
With screw gland entryno
Shock resistantno
Inlet from the rearno


Questions & answers

What is the delivery time of Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss?

The article Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Busch Jaeger 2CKA001799A0902 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss always at the best possible price. We can give you a discount of 2% on Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss we can offer you a price of 26,81 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Busch Jaeger 2CKA001799A0902 1702-84 surface-mounted housing 2f future linear studioweiss

Busch Jaeger 2CKA001754A4241 1722-181K frame 2f future linear anthracite Busch Jaeger LogoBusch Jaeger 2CKA001754A4241 1722-181K frame 2f future linear anthracite With small corner radii for cut duct covers.

Lieske Part No.: 388163
Mfg Part No: 2CKA001754A4241
Type: 1722-181K
11,35 EUR
Busch Jaeger 2CKA001754A4241 plus VAT
≈ £9.45  |  ≈ $12.45
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Busch Jaeger 2CKA001754A4302 1722-183K frame 2f future linear alusilver Busch Jaeger LogoBusch Jaeger 2CKA001754A4302 1722-183K frame 2f future linear alusilver With small corner radii for cut duct covers.

Lieske Part No.: 881801
Mfg Part No: 2CKA001754A4302
Type: 1722-183K
12,02 EUR
Busch Jaeger 2CKA001754A4302 plus VAT
≈ £10.01  |  ≈ $13.19
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Busch Jaeger 2CKA001754A4236 1722-184K frame 2f future linear studioweiss Busch Jaeger LogoBusch Jaeger 2CKA001754A4236 1722-184K frame 2f future linear studioweiss With small corner radii for cut duct covers.

Lieske Part No.: 899026
Mfg Part No: 2CKA001754A4236
Type: 1722-184K
5,35 EUR
Busch Jaeger 2CKA001754A4236 plus VAT
≈ £4.46  |  ≈ $5.87
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
