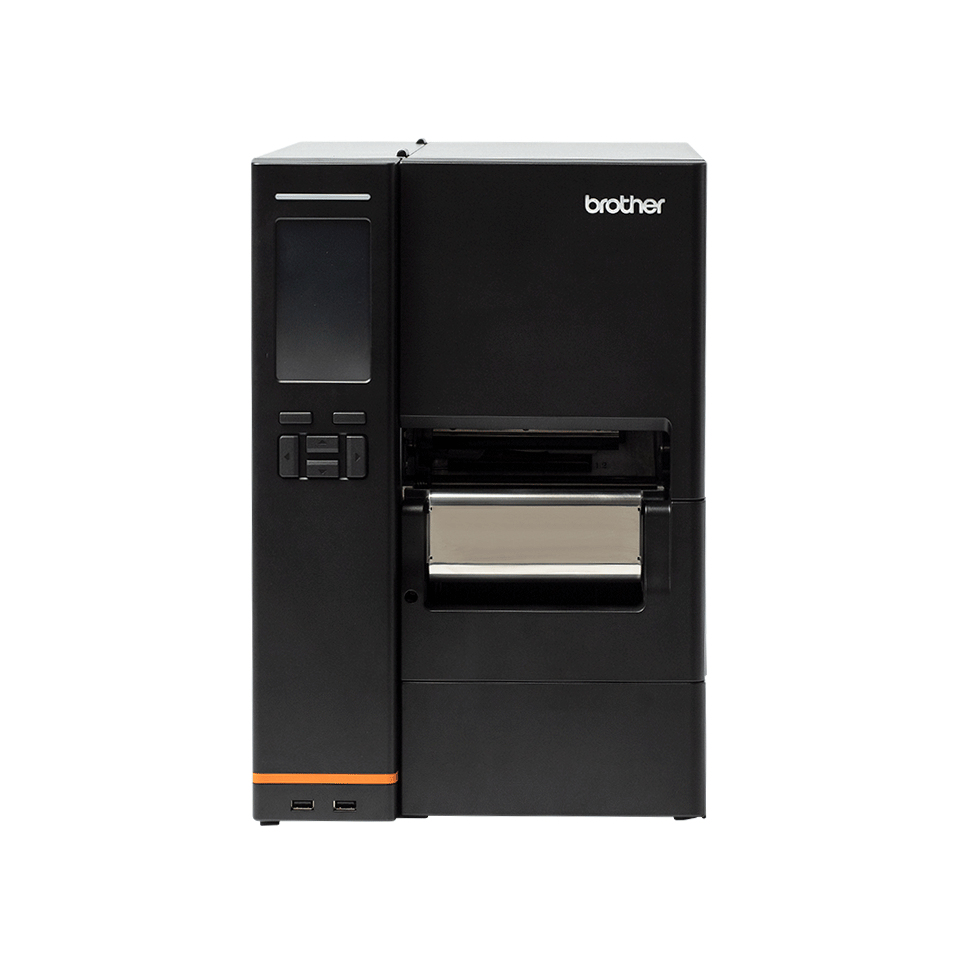

Brother TJ-4522TN label printer content_copy

With the Brother TJ-45xx industrial label printers you can print more than 1,000 labels daily, even in the most demanding production environments. With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity - this durable industrial printer was built for you. With the TJ-45xx industrial printers you can rely on efficient coding solutions and reliable performance.

Highlights

• High printing speeds of up to 305 mm/sec. with a resolution of 300 dpi
• Touchscreen display for a first-class user experience
• Print width up to 104 mm
• Supported printer command languages FBPL-EZD (EPL2, ZPL2, DPL)
• High capacity: 600 m ribbon means less media changes
• Easy connection via USB, USB- Host, serial, Ethernet and optional dual wireless interface (WLAN and Bluetooth)
• Internal label rewinder

Consumables

• Consumables type: labels

Product type

• Label printer
• ear category (ElektroG): relevant, category 6: small IT devices - and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Printing function

Printer

• Compatible operating systems: Windows, Mac OS, Linux
• Printing technology: thermal transfer
• Print resolution height: 300 dpi
• Print resolution width: 300 dpi

Memory

• Internal memory: 512 MB
• RAM: 256 MB

Connections

• USB standard: 2.0
• Data interfaces: USB host, serial port

Display

• Display technology: LCD
• Color display
• Touch display

Power supply

• Mains
• Input voltage: 230 V

Data transmission

• Ethernet -Standard: 10/100 MBit/s

Paper feed

• printable media: labels

Basic properties

• Color: Black
• Height: 412 mm
• Length/Depth: 502 mm
• Width: 276 mm
• Weight: 18.93 kg

Scope of delivery

• Brother TJ- 4522TN industrial label printer
• power cable
• USB cable
• quick start guide
• information text Scope of delivery: Drivers and software for the device can be downloaded from the Brother Support Portal.

Design
Product colour	Black
Control type	Buttons, Touch
Colour display
Logistics data
Harmonized System (HS) code	84433210
Pallet gross height	17.9 cm
Pallet gross weight	205.2 kg
Master (outer) cases per pallet	9 pc(s)
Master (outer) cases per pallet layer	3 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	9 pc(s)
Operational conditions
Operating relative humidity (H-H)	25 - 85%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Other features
LED indicators	Error, Power, Status
Country of origin	Taiwan
Languages support	Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Packaging content
Cables included	AC
Software development kit (SDK)
Packaging data
Package weight	21.7 kg
Paper handling
Ribbon width	11.4 cm
Ribbon length	600 m
Maximum label width	11.4 cm
Maximum roll diameter	20.3 cm
Core diameter	7.62 cm
Performance
Page description languages	DPL, EPL2, ZPL II
Internal memory	256 MB
Flash memory	512 MB
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E
Number of fonts	8
Ports & interfaces
Connectivity technology	Wired
RS-232 ports	1
Optional connectivity	Bluetooth, Wireless LAN
Ethernet LAN
USB port
Printing
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed	305 mm/sec
Maximum printing width	10.4 cm
Minimum print length	5 mm
Maximum print length	11.43 m
Colour
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mobile operating systems supported	Android, iOS
Linux operating systems supported
Technical details
Pallet type	800 x 1200 mm
Weight & dimensions
Width	400 mm
Depth	635 mm
Height	545 mm
Weight	19.4 kg

---
