Brother QL-820NWBc Etikettendrucker (USB/WLAN/LAN/Bluetooth) content_copy

Professional network label printer with Bluetooth and red-black printingThe Brother QL-820NWBc is a flexible label printer that adapts to your connectivity needs. Print labels from your PC, Mac, smartphone or tablet via USB, LAN, WiFi or Bluetooth.

Highlights

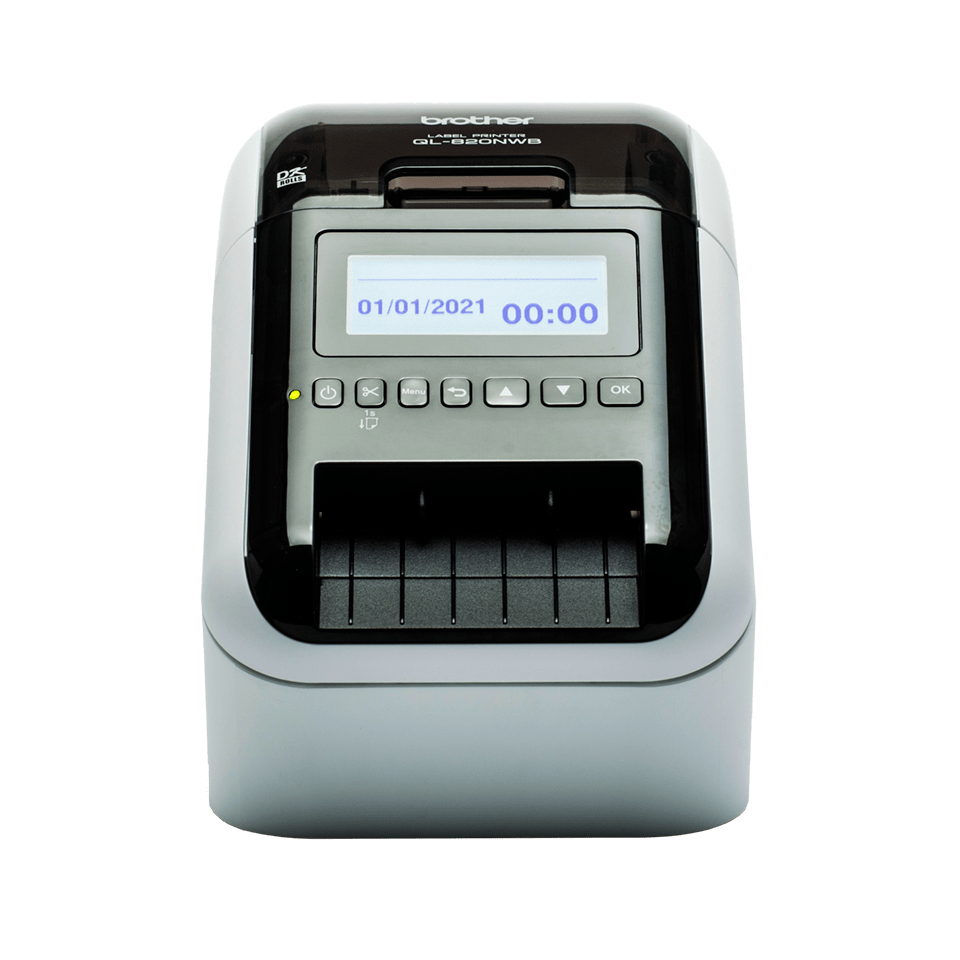

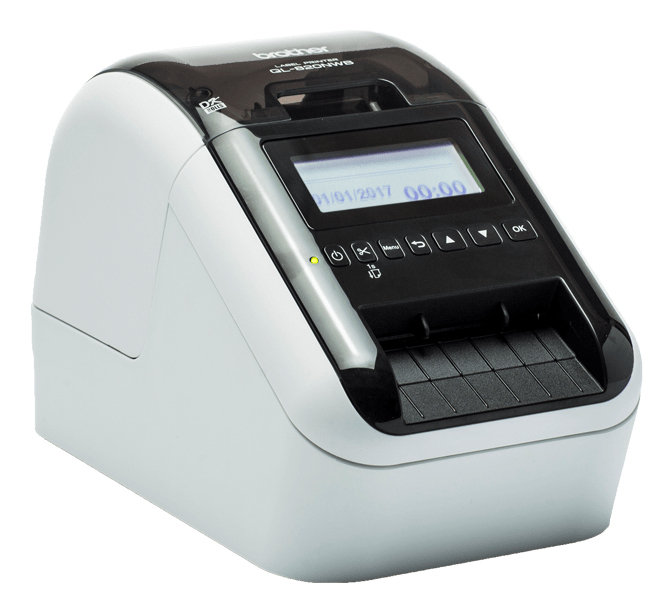

• Brother QL-820NWBc label printer
• Prints labels up to 62 mm wide
• Print up to 110 labels/minute
• Max. printing height 60.96 mm
• Illuminated graphic LC display
• USB, WLAN, LAN, Bluetooth, red-black -Print with DK-22251
• Print conveniently via PC, Mac, smartphone or tablet

Consumables

• Consumables type: Labels
• Consumables highlights: DK endless labels 12/29/38/50/54/62 mm; DK single labels; 29x90mm, 38x90mm, 62x29mm, 23x23mm, 62x100mm, 17x87mm, 17x54mm; Ø 58 mm, Ø 24 mm, Ø 12 mm

Product type

• label printer
• ear category (ElektroG): relevant, category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Print function

Shipping

• WEEE: 71090241

Printer

• Compatible operating systems: Windows, Mac OS, iOS, Android
• Print functions: Apple AirPrint, Brother iPrint - Printing technology: Direct thermal
• Print speed monochrome ISO: 176 mm/s
• Print resolution height: 300 dpi
• Print resolution width: 300 dpi

Memory

• Internal memory: 6 MB

Connections

• Data interfaces: USB

Display

• Display technology: LCD

Power supply

• Battery installed: No
• Battery highlights: Can also be operated with a separately available battery.
• Mains + battery
• Input voltage: 240 V

Data transmission

• Ethernet standard: 10/100 MBit/s
• Bluetooth
• Bluetooth standard: 5.2
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• Security standard: WEP, WPA, WPA2, WPA3
• mobile printing: Apple AirPrint

paper feed

• printable media: labels

basic properties

• color: black, white
• height: 145 mm
• length/depth: 234 mm
• width : 125mm
• Weight: 1.16 kg > Scope of delivery
• Label printer QL-820NWBc

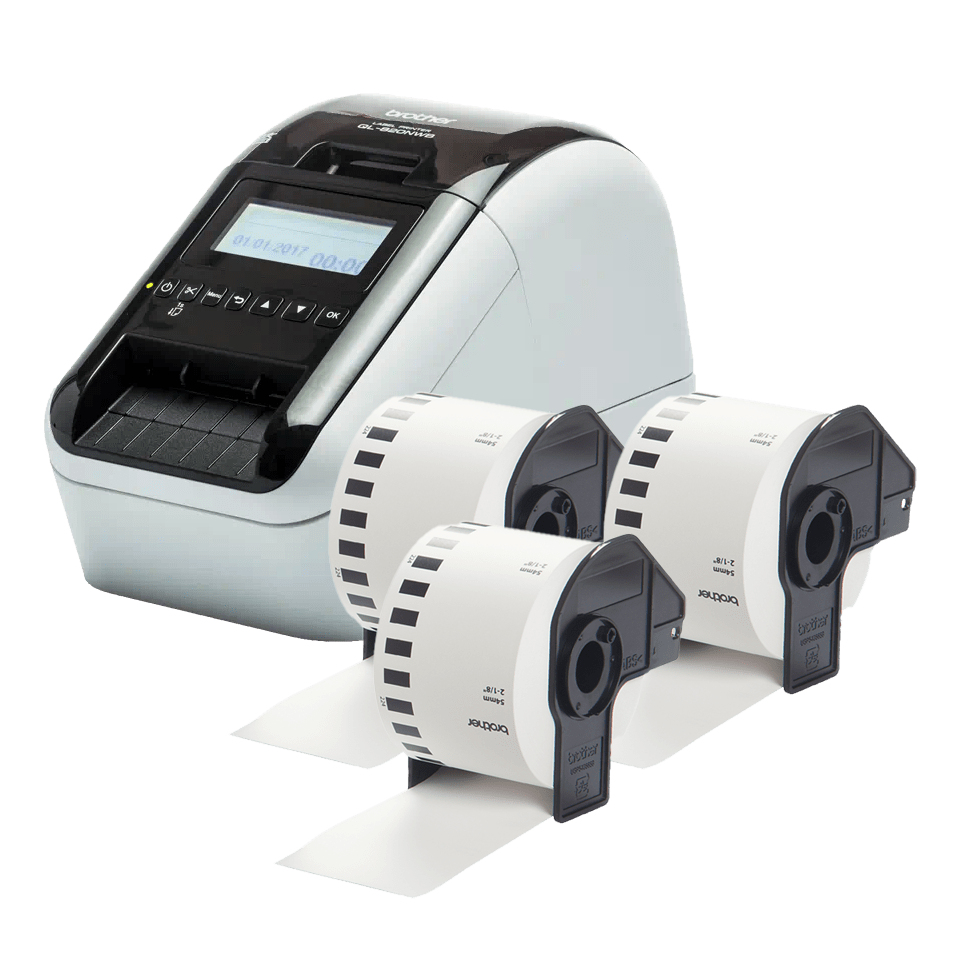

• 2 starter label rolls (single labels 29 x 90 mm, 100 pieces; continuous label 62 mm x 5 m)
• Power cable and adapter
• USB cable
• Documentation
• Information text included in delivery: Drivers and software for the device can be downloaded from the Brother Support Portal.; A battery for wireless operation is optionally available and not included in delivery!

Battery
Battery technology	Lithium-Ion (Li-Ion)
Rechargeable battery
Design
Product colour	Black, White
Display	LCD
Control type	Buttons
Built-in display
Backlight display
Logistics data
Harmonized System (HS) code	84433210
Pallet gross height	15 cm
Pallet gross weight	275.5 kg
Master (outer) cases per pallet	24 pc(s)
Master (outer) cases per pallet layer	4 pc(s)
Layers per pallet	6 pc(s)
Products per pallet	72 pc(s)
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 35 °C
Other features
Compatibility	Apple iPhone SE Apple iPhone 6s Plus Apple iPhone 6s Apple iPhone 6 Puls Apple iPhone 6 Apple iPhone 5s Apple iPhone 5c Apple iPhone 5 Apple iPhone 4s Apple iPad Pro (12.9-inch) Apple iPad Air2 Apple iPad Air Apple iPad mini 4 Apple iPad mini 3 Apple iPad mini 2 Apple iPad mini Apple iPad (4th generation) Apple iPad (3rd generation) Apple iPad2 Apple iPod touch (6th generation) Apple iPod touch (5th generation)
Memory capacity	255 characters
Networking features	10/100 Base-TX
Country of origin	China
Number of frames	126
Languages support	Multi
Number of languages	18
Spare part retention	5 year(s)
Date & time printing
Packaging content
Cables included	AC, USB
Bundled software	P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light
Batteries included
Drivers included
Quick start guide
Warranty card
AC adapter included
Manual
Packaging data
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Package weight	2.67 kg
Paper handling
Maximum label width	6.2 cm
Autocutter
Performance
Page description languages	ESC P, Raster_P
Flash memory	6 MB
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Bitmap fonts	Gothic
Typestyles supported	Bold, Italics
Tape type	DK
Number of styles	8
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ports & interfaces
Connectivity technology	Wired & Wireless
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Bluetooth profiles	BIP, HCRP, OPP, SPP
USB 2.0 ports quantity	1
Mobile printing technologies	Apple AirPrint
Ethernet LAN
Wi-Fi
Bluetooth
USB port
Wi-Fi Direct
Power
Battery type	Built-in battery
Number of batteries supported	1
Auto power off
Rechargeable
Printing
Print technology	Direct thermal
Maximum resolution	300 x 600 DPI
Print speed	176 mm/sec
Printing colours	Black, Red
Maximum printing width	6.2 cm
Maximum print height	6.1 cm
Minimum print length	100 cm
Text alignment	Center, Justify, Left, Right
Colour
Vertical printing
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical details
Sustainability certificates	ENERGY STAR
Pallet type	1200 x 1000 mm
Sustainability compliance
Weight & dimensions
Width	185 mm
Depth	300 mm
Height	230 mm
Weight	2.25 kg

---
