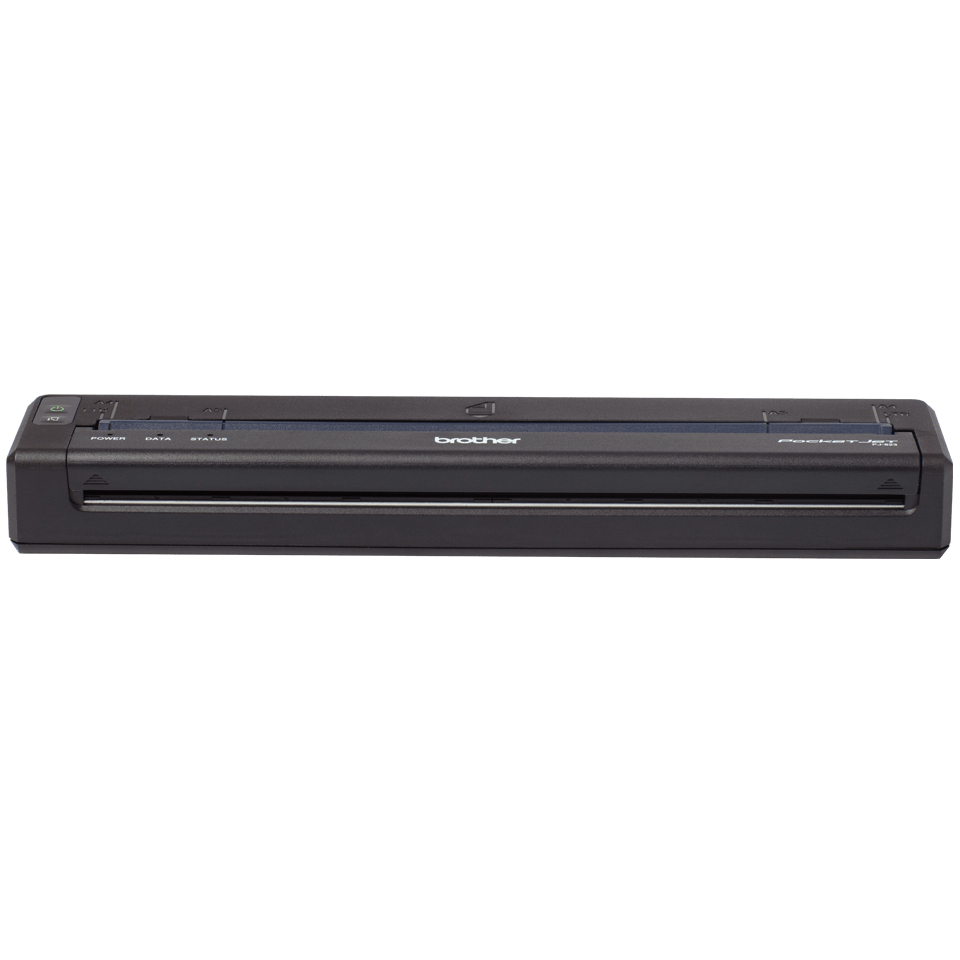

Brother PJ-823 Mobile Direct Thermal A4 Document Printer content_copy

Discover the powerful and mobile A4/A5 direct thermal document printers. The compact PJ-800 printers offer the ideal solution for field workers, civil servants, healthcare professionals and logistics workers. The PJ-800 series is an all-round improvement on the previous series. With higher printing speeds, more modern interfaces and better integration options.

Highlights

• Powerful and mobile A4/A5 direct thermal document printer
• Print speed up to 13.5 pages per minute
• Data transfer and charging via USB-C
• Up to 300 dpi print resolution
• Support for numerous printer languages including ZPL2 emulation and SOTI compatibility

Consumables

• Consumables -Type: Thermal Paper, Thermal Continuous Paper
• Consumable Highlights: PA-C-411; PA-R-411

Product type

• standard printer
• ear category (ElektroG): relevant, category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• printing function

Shipping

• WEEE : 71090241

Printer

• compatible operating systems: Windows, Mac OS, Linux
• Print technology: direct thermal
• Print speed monochrome ISO: 13.5 pages/min
• Print resolution height: 300 dpi
• Print resolution width: 300 dpi

Memory

• Internal memory: 64 MB
• RAM: 256 MB
• Freely available internal memory: 30 MB

Connections

• USB standard: 2.0

Power supply

• Battery installed: No
• Battery highlights: Battery optionally available
• Mains + battery

Paper supply

• Printable paper formats: A4, A5, Legal

Basic properties

• Color : Black
• Height: 30 mm
• Length/Depth: 55 mm
• Width: 255 mm
• Weight: 480 g

Scope of delivery

• Brother PJ-823
• USB Type-C to A cable
• Cleaning sheet
• Installation instructions

Design
Product colour	Black
Built-in display
Features
Built-in barcodes	2D, AZTECCODE, Code 128 (A/B/C), Code 93, Code-39 Library, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF, Industrial 2/5, MSI, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, Standard 2/5, UPC-A, UPC-E
Internal memory	256 MB
Flash memory	64 MB
Country of origin	China
Logistics data
Products per pallet	240 pc(s)
Pallet gross height	16.7 cm
Pallet gross weight	237.8 kg
Master (outer) cases per pallet	48 pc(s)
Layers per pallet	8 pc(s)
Packaging data
Package weight	904 g
Paper handling
Printing media thickness	160 µm
Maximum printing width	20.3 cm
Ports & interfaces
USB connector	USB Type-C
Connectivity technology	Wired
USB port
Power
Power source type	USB
Printing
Maximum resolution	300 x 300 DPI
Printing characters	2D barcode, Barcode, Text
Print technology	Direct thermal
Type	Mobile printer
System requirements
Mobile operating systems supported	Android
Windows operating systems supported
Mac compatibility
Linux operating systems supported
Technical details
Master (outer) cases per pallet layer	6 pc(s)
Pallet type	800 x 1200 mm
Weight & dimensions
Width	170 mm
Depth	310 mm
Height	75 mm
Weight	582 g

---
