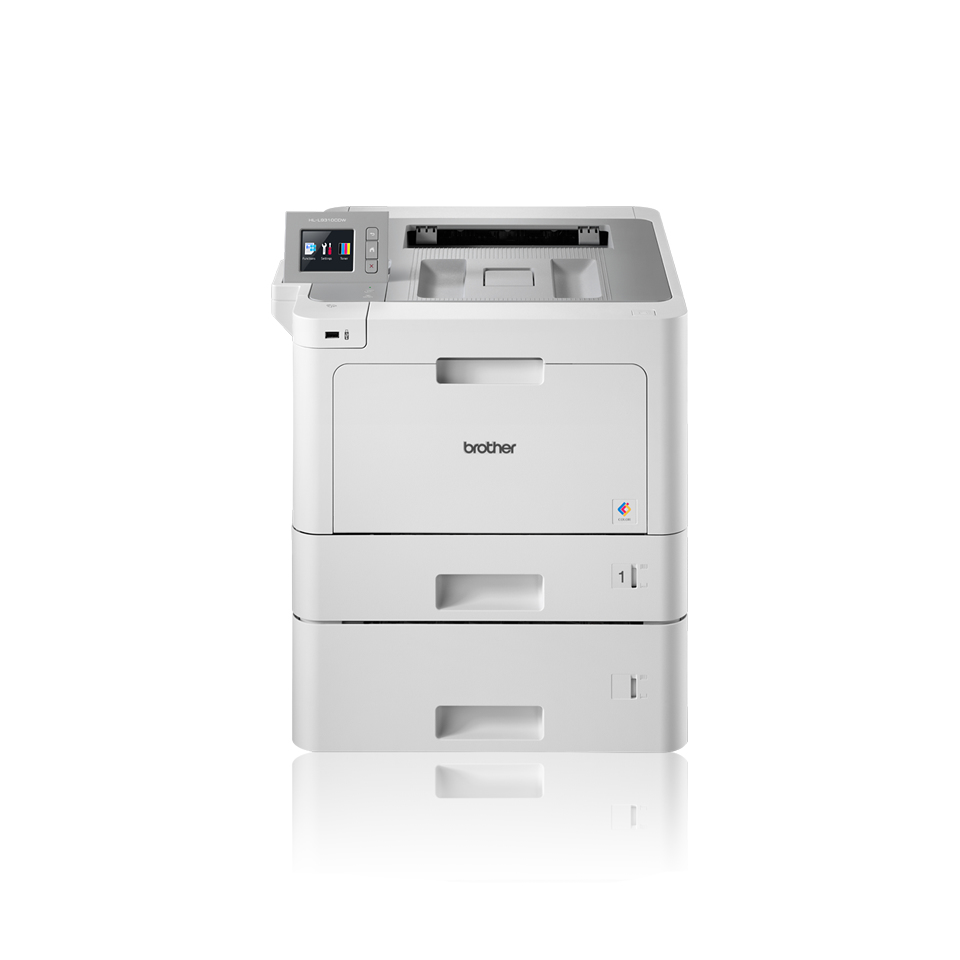

Brother HL-L9310CDWT color laser (forwarding) content_copy

Thanks to its fast print speed and high paper capacity, the Brother HL-L9310CDWT is the optimal color laser printer for workgroups with high print volumes. The exclusive ultra-jumbo toners enable particularly affordable click prices. If you require a lot of paper, the model can be equipped with additional optional paper feeders. The device is compatible with various Brother solutions such as the print management solution b-guard or the MPS concepts from Brother PrintSmart. Customer-specific workflows can be individually programmed via the BSI interface and integrated into the 6.8 cm (2.67 inch) color touchscreen display. The NFC card reader can be combined with existing authentication systems and supports common card formats.

Highlights

• Network-compatible color laser printer
• Print speed up to 31 ppm. in color
• print resolution up to 2400x600 dpi
• USB, Ethernet, WLAN, NFC
• Google Cloud Print, Apple AirPrint, Mopia, Duplex

Consumables

• Consumables type: Toner
• Consumables highlights: TN-910XX

Product type

• Color laser printer
• ear category ( ElektroG): relevant, Category 4: Large devices > 50 cm (min. one page), Large devices B2C

Specifications

• Print function

Printer

• Print functions: Brochure printing, Brother iPrint< Printing of header and footer, Printing from USB host, N- on-1, poster printing, watermark printing
• Printing technology: Laser
• Color printing
• Printing speed color ISO: 31 pages/min
• Printing speed color ISO duplex: 14 pages/min
• Printing speed monochrome ISO: 31 pages/min
• Printing speed monochrome ISO duplex: 14 Pages/min
• Print volume/month maximum: 80,000 pages
• Print volume/month optimal: 6000 pages

Memory

• Internal memory: 1 GB

Connections

• Data interfaces: USB host

Power supply

• Network

Data transfer

• Ethernet standard: 10/100/1000 Mbit/s
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• mobile printing: Wi-Fi Direct printing

paper supply

• printable media: letterhead, thick paper, thin Paper, labels, glossy paper, plain paper, recycled paper, envelopes
• printable paper formats: A4, A5, A6 (postcard), legal, letter
• paper capacity multi-feed: 50
• paper weight min.: 60 g/m²
• paper weight max.: 163 g/m²

Basic properties

• color: gray
• height: 44.6 cm
• Length/Depth: 48.6 cm
• Width: 44.1 cm
• Weight: 28.7 kg > Scope of delivery
• Brother HL-L9310CDW
• toner cartridges (for 6,500 pages in black and 6,500 pages each in cyan, magenta, yellow)
• LT-340CL
• drum
• Transfer unit
• Waste toner container
• Installation instructions
• Power cable
• Printer driver for Windows

Design
Product colour	White
Display	LCD
Display diagonal	6.78 cm (2.67")
Control type	Touch
Built-in display
Touchscreen
Features
Maximum duty cycle	80000 pages per month
Recommended duty cycle	0 - 6000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Microsoft XPS, PCL 6, PDF 1.7, XPS
Number of printer fonts	66
Country of origin	China
Input & output capacity
Total number of input trays	2
Total input capacity	250 sheets
Total output capacity	150 sheets
Paper input type	Paper tray
Multi-Purpose tray input capacity	50 sheets
Maximum number of input trays	3
Maximum input capacity	2380 sheets
Multi-Purpose tray
Logistics data
Harmonized System (HS) code	84433210
Pallet gross height	10.3 cm
Pallet gross weight	90.6 kg
Master (outer) cases per pallet	2 pc(s)
Layers per pallet	1 pc(s)
Products per pallet	2 pc(s)
Network
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, SMTP-AUTH, SNMP, SSL/TLS, WPA-PSK, WPA2-PSK
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS / NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR / LPD, Custom Raw Port / Port9100, IPP / IPPS, FTP Server, HTTPS Server, TFTP Client & Server, SMTP Client, SNMPv1 / v2c / v3, ICMP, Web Services (Print), CIFS Client, SNTP Client, LDAP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR / LPD, Custom Raw Port / Port9100, IPP / IPPS, FTP Server, TELNET Server, HTTP / HTTPS Server, TFTP Client & Server, SMTP Client, SNMPv1 / v2c / v3 , ICMPv6, web services (print), CIFS client, SNTP client, LDAP
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Wi-Fi
Ethernet LAN
Near Field Communication (NFC)
Other features
Online services supported	Box, Dropbox, Evernote, Google Drive, OneDrive, OneNote
Spare part retention	5 year(s)
Packaging data
Package width	646 mm
Package depth	603 mm
Package height	885 mm
Package weight	36.5 kg
Paper handling
Maximum ISO A-series paper size	A4
Paper tray media types	Glossy paper, Plain paper, Recycled paper, Thicker paper, Thin paper
Multi-purpose tray media types	Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4, A5, A6
Non-ISO print media sizes	Folio, Letter
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media weight	60 - 105 g/m²
Multi-Purpose Tray media weight	60 - 163 g/m²
Performance
Internal memory	1024 MB
Processor frequency	800 MHz
Sound pressure level (printing)	49 dB
Card reader integrated
Built-in processor
Ports & interfaces
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	3
Direct printing
Power
Power consumption (standby)	70 W
Power consumption (PowerSave)	340 W
Power consumption (off)	0.03 W
Energy Star Typical Electricity Consumption (TEC)	1.8 kWh/week
Printing
Duplex printing mode	Auto
Print speed (colour, normal quality, A4/US Letter)	31 ppm
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	31 ppm
Duplex print speed (black, normal quality, A4/US Letter)	7 ppm
Duplex print speed (colour, normal quality, A4/US Letter)	7 ppm
Warm-up time	29 s
Time to first page (black, normal)	15 s
N-up printing	2, 4, 9, 16, 25
Colour
Duplex printing
Secure printing
Sustainability
Sustainability certificates	Blue Angel, ENERGY STAR
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical details
Master (outer) cases per pallet layer	2 pc(s)
Pallet type	800 x 1200 mm
Weight & dimensions
Width	605 mm
Depth	645 mm
Height	880 mm
Weight	30.1 kg

---
