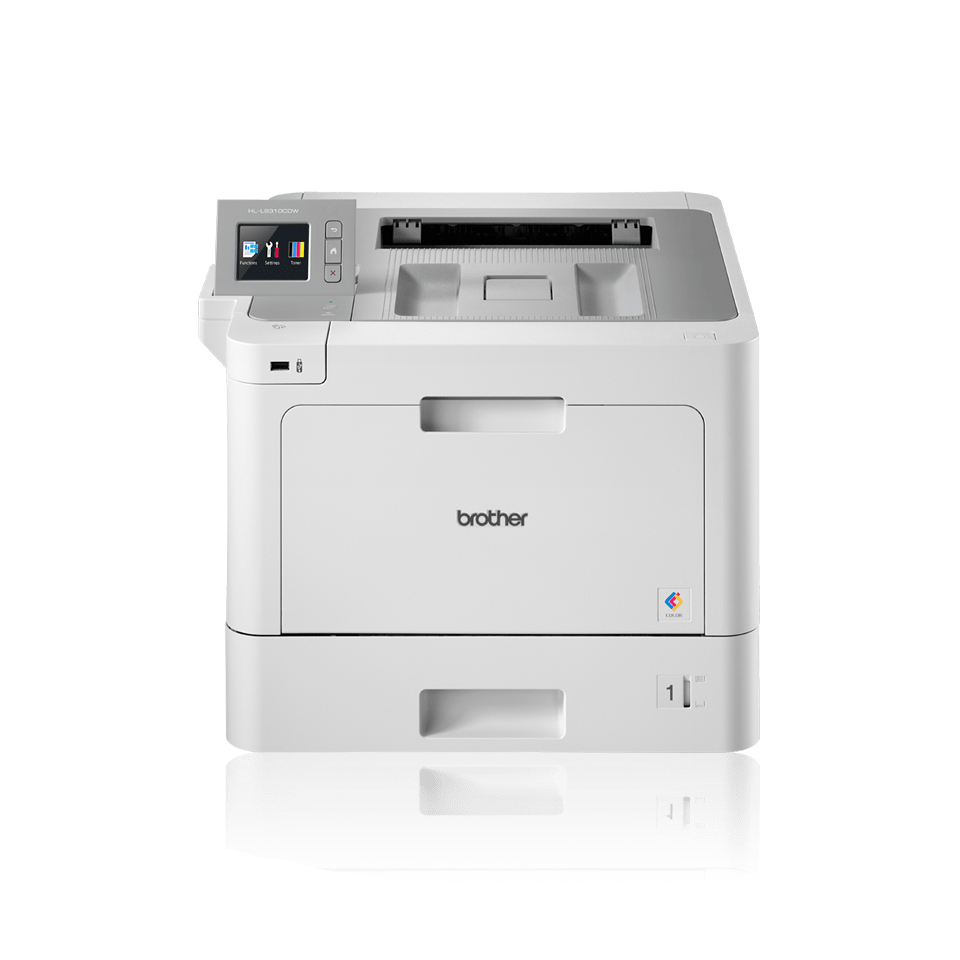

Brother HL-L9310CDW Color Laser content_copy

Thanks to its fast printing speed and numerous security features, the Brother HL-L9310CDW is the optimal color laser printer for workgroups with high print volumes. The exclusive ultra-jumbo toners enable particularly affordable click prices. If you need a lot of paper, you can equip the HL-L9310CDW with up to 2380 sheets of paper capacity. The device is compatible with various Brother solutions such as the print management solution b-guard or the MPS concepts from Brother PrintSmart. Customer-specific workflows can be individually programmed via the BSI interface and integrated into the 6.8 cm (2.67 inch) color touchscreen display. The NFC card reader can be combined with existing authentication systems and supports common card formats.

Highlights

• Network-compatible color laser printer
• Print speed up to 31 ppm. in color
• print resolution 2400x600 dpi
• USB, Ethernet, WLAN, NFC
• Duplex, Apple AirPrint, Google Cloud Print, Mopria

Consumables

• Consumables type: Toner
• Consumables highlights: TN910XX

Product type

• Color laser printer
• ear category (ElektroG): relevant , Category 4: Large devices > 50 cm (min. one page), Large devices B2C

Specifications

• Print function

Printer

• Print functions: Booklet printing, Brother iPrint < Header and footer printing, Printing from USB host, N-in-1, Poster printing, watermark printing
• Printing technology: Laser
• Color printing
• Printing speed color ISO: 31 pages/min
• Printing speed color ISO duplex: 14 pages/min
• Printing speed monochrome ISO: 31 pages/min
• Printing speed monochrome ISO duplex: 14 pages/min
• Print volume/month maximum: 80,000 pages
• Print volume/month optimal: 6000 pages

Memory

• Internal memory: 1 GB

Connections

• Data interfaces: USB host

Power supply

• Network

Data transfer

• Ethernet standard: 10/100/1000 MBit/s
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• mobile printing: Wi-Fi direct printing

paper supply

• printable media: letterhead, thick paper, thin paper, labels, Glossy paper, plain paper, recycled paper, envelopes
• printable paper formats: A4, A5, A6 (postcard), legal, letter
• paper capacity multi-feed: 50
• paper weight min.: 60 g/m²
• paper weight max.: 163 g/m²

Basic properties

• color: gray
• height: 31.3 cm
• Length/Depth: 48.6 cm
• Width: 44.1 cm
• Weight: 22.2 kg > Scope of delivery
• Brother HL-L9310CDW
• Toner cartridges (for 6,500 pages in black and 6,500 pages each in cyan, magenta, yellow)
• Drum
• Transfer unit
• Toner Waste bin
• Installation instructions
• Power cable
• Printer driver for Windows

Design
Market positioning	Business
Display	LCD
Display diagonal	6.86 cm (2.7")
Control type	Touch
Built-in display
Colour display
Features
Maximum duty cycle	80000 pages per month
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6, PDF 1.7, XPS
Linear (1D) barcodes supported	Codabar, Code 128A, Code 128B, Code 128C, Code 39, Code 93, Facing Identification Mark, GS1 DataBar, ISBN, Interleaved 2 of 5, MSI, POSTNET, UPC-A, UPC-E
Country of origin	China
Replacement cartridges	TN-910BK TN-910C TN-910M TN-910Y
Input & output capacity
Total number of input trays	1
Total input capacity	300 sheets
Total output capacity	150 sheets
Paper tray 1 input capacity	250 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum input capacity	2380 sheets
Maximum output capacity	150 sheets
Multi-Purpose tray
Logistics data
Pallet gross height	18.6 cm
Pallet gross weight	178.8 kg
Master (outer) cases per pallet	6 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	6 pc(s)
Network
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, IPSec, LEAP, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, WPA-PSK, WPS
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(AutoIP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/ LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMP, Web Services (Print), CIFS client, SNTP client, LDAP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder,LPR/LPD, Custom Raw Port/ Port9100, IPP/IPPS, FTP Server,TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMPv6, Web Services (Print), CIFS Client, SNTP Client, LDAP
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Network ready
Wi-Fi
Ethernet LAN
Near Field Communication (NFC)
Other features
Authentication method	LDAP, ActiveDirectory, RADIUS
Dimensions (W x D x H) (imperial)	442 x 485.1 x 312.4 mm (17.4 x 19.1 x 12.3")
Online services supported	Dropbox, Google Drive
Spare part retention	5 year(s)
Packaging content
Included cartridge capacity (black)	6500 pages
Cartridge(s) included
Packaging data
Package width	642 mm
Package depth	603 mm
Package height	578 mm
Package weight	27 kg
Paper handling
Maximum ISO A-series paper size	A4
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Letterhead, Plain paper, Recycled paper
Multi-purpose tray media types	Bond paper, Glossy paper, Letterhead, Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
Non-ISO print media sizes	Executive, Legal, Letter
Envelopes sizes	10
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media weight	60 - 105 g/m²
Paper tray media weight (imperial)	7.26 - 12.7 kg (16 - 28 lbs)
Multi-Purpose Tray media weight (imperial)	7.26 - 19.5 kg (16 - 43 lbs)
Performance
Internal memory	1024 MB
Processor frequency	800 MHz
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Sound power level (printing)	65.5 dB
Sound power level (standby)	60 dB
Built-in processor
Ports & interfaces
USB 2.0 ports quantity	3
USB connector	USB Type-A
Direct printing
USB port
Power
Power consumption (printing)	580 W
Power consumption (ready)	70 W
Energy Star Typical Electricity Consumption (TEC)	1.8 kWh/week
Printing
Duplex printing mode	Auto/Manual
Print speed (colour, normal quality, A4/US Letter)	31 ppm
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	31 ppm
Duplex print speed (black, normal quality, A4/US Letter)	14 ppm
Duplex print speed (colour, normal quality, A4/US Letter)	14 ppm
Warm-up time	29 s
Time to first page (black, normal)	15 s
Time to first page (colour, normal)	15 s
N-up printing	2, 4, 9, 16, 25
Colour
Duplex printing
Watermark printing
Booklet printing function
Sustainability
Sustainability certificates	Blue Angel, ENERGY STAR, Nordic Swan Ecolabel
Sustainability compliance
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported
Linux operating systems supported
Technical details
Master (outer) cases per pallet layer	2 pc(s)
Pallet type	800 x 1200 mm
Weight & dimensions
Width	605 mm
Depth	575 mm
Height	645 mm
Weight	23 kg

---
