Brother DCP-L1660W 3-in-1 content_copy

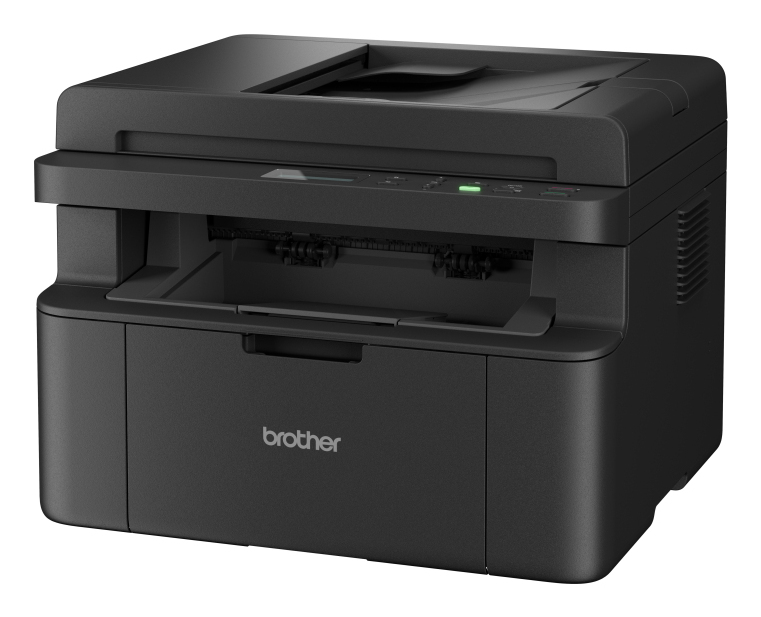

The Brother DCP-L1660W is a compact 3-in-1 multifunction device of the category laser multifunction printer, designed for use in home environments and small offices. It combines the functions of printing, scanning, and copying in one device and operates with laser printing technology for monochrome output. The maximum print resolution is 2400 x 600 DPI, ensuring clear text and sharp graphics. The print speed is up to 20 pages per minute at normal quality, with the first page ready in approximately 10 seconds. The device supports manual duplex printing, enabling double-sided printing by manually flipping the page. Additional print functions include N-in-1 printing, booklet printing, poster printing, and watermark printing, increasing flexibility in document creation. The toner save mode reduces consumption and lowers operating costs.

Applications
This device is particularly suitable for small offices, home offices, or private users requiring a compact, powerful solution for everyday printing and scanning tasks. The recommended monthly print volume is between 0 and 2000 pages, sufficient for low to medium workloads. The integrated automatic document feeder (ADF) with a capacity of 10 sheets facilitates scanning and copying of multi-page documents. Paper handling supports formats such as A4, A5, B5, 16K, Executive, Folio, Legal, and Letter, with paper weight ranging from 65 to 105 g/m². The device features a paper tray with a capacity of 150 sheets and an output tray for 50 sheets.

Functions and Features in Detail
The device offers a color scan function with an optical resolution of 600 x 1200 DPI and a maximum scan resolution of 19200 x 19200 DPI. The scanner type is a flatbed & ADF scanner operating with CIS scanning technology. The scanning speed is 12 pages per minute in black and white and 6.4 pages per minute in color. The scan function allows scanning to email, file, or image. The copy function supports a maximum resolution of 600 x 600 DPI, zooming from 25 to 400 %, and a maximum copy count of 99. The first copy is ready in approximately 16 seconds. The N-in-1 copy function enables creating 2- or 4-page copies on a single sheet.

Technology Explained Simply
The printing technology is based on laser technology, which uses toner and a drum. Print quality is determined by the resolution of 2400 x 600 DPI, where the horizontal resolution (2400 DPI) ensures sharp text and the vertical resolution (600 DPI) provides sufficient detail reproduction. The integrated 128 MB memory capacity enables processing of more complex documents. The device features a 2-line LCD display showing basic information such as status, error messages, and menu options. The noise level is 52 dB during printing and 18 dB in standby mode.

Compatibility and Accessories
The device is equipped with WLAN (802.11a/b/g/n, Wi-Fi 4) and Ethernet/LAN (10/100Base-T(X)), allowing both wired and wireless network integration. It supports Wi-Fi Direct for direct connections without a router. Network functions include protocols such as IPP/IPPS, SNMP, LPR/LPD, FTP, HTTP/HTTPS, TFTP, mDNS, DNS Resolver, DHCP, APIPA (AutoIP), ICMP, SMTP Client, SNTP Client, Web Services (Print and Scan), as well as IPv4 and IPv6. Security is ensured by algorithms including 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE, SSL/TLS, SMTP-AUTH, and IP address filtering. For mobile use, Apple AirPrint, Brother Mobile Connect, and Mopria Print Service are available. Compatible operating systems include Windows, Mac OS, and Linux.

Installation and Mounting
Installation is performed via integrated interfaces: USB 2.0, WLAN, and Ethernet. Setup is possible via the LCD display and network options. The included quick start guide assists the user with configuration. Power supply is via mains voltage (220–240 V), with power consumption of 380 W during operation and 1 W in standby mode. The device features an energy-saving mode.

Operational Advantages
The device features a compact design (38.5 cm width, 34 cm depth, 28.3 cm height, weight 8.2 kg) and easy operation. The combination of ADF, WLAN, Ethernet, and USB enables flexible integration into existing work environments. Support for mobile printing and network functions increases productivity. Consumables consist of the toner TN1150 (approx. 1000 pages) and the drum DR1150 (approx. 10,000 pages). The included starter toner allows approximately 350 pages. The device is designed for use in private households and small offices and complies with the ear category 6 (small IT and telecommunications devices).

Scope of Delivery
The device is delivered with the Brother DCP-L1660W 3in1 multifunction printer, a starter toner (approx. 350 pages), a power cable, and a quick start guide.

Copying
Copying	Mono copying
Maximum copy resolution	600 x 600 DPI
Maximum copy size	A4
Time to first copy (black, normal)	16 s
Maximum number of copies	99 copies
Copier resize	25 - 400%
N-in-1 copy function (N=)	2, 4
Duplex copying
N-in-1 copy function
Design
Product colour	Black
Market positioning	Home & office
Display	LCD
Display number of lines	2 lines
Built-in display
Fax
Faxing
Auto-redialing
Auto reduction
Features
Recommended duty cycle	0 - 2000 pages per month
Duplex functions	Print
Number of print cartridges	1
Printing colours	Black
Replacement cartridges	TN1150
Input & output capacity
Total number of input trays	1
Total input capacity	150 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	10 sheets
Auto document feeder (ADF)
Network
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, SMTP-AUTH, SSL/TLS, WPA-PSK, WPA2-PSK, WPA3-SAE
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (AutoIP), WINS/NetBIOS name resolution, DNS Resolver, LLMNR Receiver, LPR/LPD, Custom Raw Port/Port9100, SNMPv1/v2c/v4, TFTP Server, ICMP, Web Services (Print), Web Services (Scan), SNTPClient, mDNS, SMTP Client, IPP/IPPS, FTP Server, HTTP/HTTPS Server, TFTP Client
Supported network protocols (IPv6)	NDP, RA, DNS Resolver, mDNS, LLMNR Receiver, LPR/LPD, Custom Raw Port / Port9101, SNMPv1/v2c/v4, TFTP Server, ICMPv7, SNTP Client, Web Services (Print), Web Services (Scan), IPP/IPPS, SMTP Client, FTP Server, HTTP/HTTPS Server, TFTP Client
Mobile printing technologies	Apple AirPrint, Brother Mobile Connect, Mopria Print Service
Wi-Fi
Ethernet LAN
Wi-Fi Direct
Bluetooth
Near Field Communication (NFC)
IP address filtering
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32.5 °C
Storage relative humidity (H-H)	20 - 80%
Other features
Supported network protocols	SSL/TLS (SMTP, HTTP, IPP), SMTP-AUTH, SNMP v4
Packaging content
Included cartridge capacity (black)	350 pages
Cables included	AC
Cartridge(s) included
Warranty card
Quick installation guide
Packaging data
Package width	481 mm
Package depth	436 mm
Package height	421 mm
Package weight	10.2 kg
Paper handling
Maximum ISO A-series paper size	A4
Paper tray media types	Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	16K, Executive, Folio, Legal, Letter
Paper tray media weight	65 - 105 g/m²
Performance
Internal memory	128 MB
Sound pressure level (printing)	52 dB
Sound pressure level (standby)	18 dB
Sound power level (printing)	6.66 dB
Sound power level (standby)	4.69 dB
Card reader integrated
Ports & interfaces
USB port
Power
Power consumption (average operating)	1.3 W
Power consumption (printing)	380 W
Power consumption (copying)	380 W
Power consumption (sleep)	1 W
Power consumption (off)	0.28 W
Energy Star Typical Electricity Consumption (TEC)	0.29 kWh/week
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Duplex printing mode	Manual
Print technology	Laser
Printing	Mono printing
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	20 ppm
Time to first page (black, normal)	10 s
Duplex printing
N-in-1 print function
Watermark printing
Economical printing
Booklet printing function
Poster printing function
Scanning
Scanning	Colour scanning
Optical scanning resolution	600 x 1200 DPI
Optical scanning resolution (ADF)	600 x 600 DPI
Maximum scan resolution	19200 x 19200 DPI
Scanner type	Flatbed & ADF scanner
Scan technology	CIS
Scan to	E-mail, File, Image
Scan speed (colour)	6.4 ppm
Scan speed (black)	12 ppm
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
Scan drivers	SANE, TWAIN
Duplex scanning
System requirements
Windows operating systems supported	Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mobile operating systems supported	Android, iOS, iPadOS
Other operating systems supported	ChromeOS
Mac operating systems supported
Linux operating systems supported
Weight & dimensions
Width	385 mm
Depth	340 mm
Height	283 mm
Weight	8.2 kg

---
