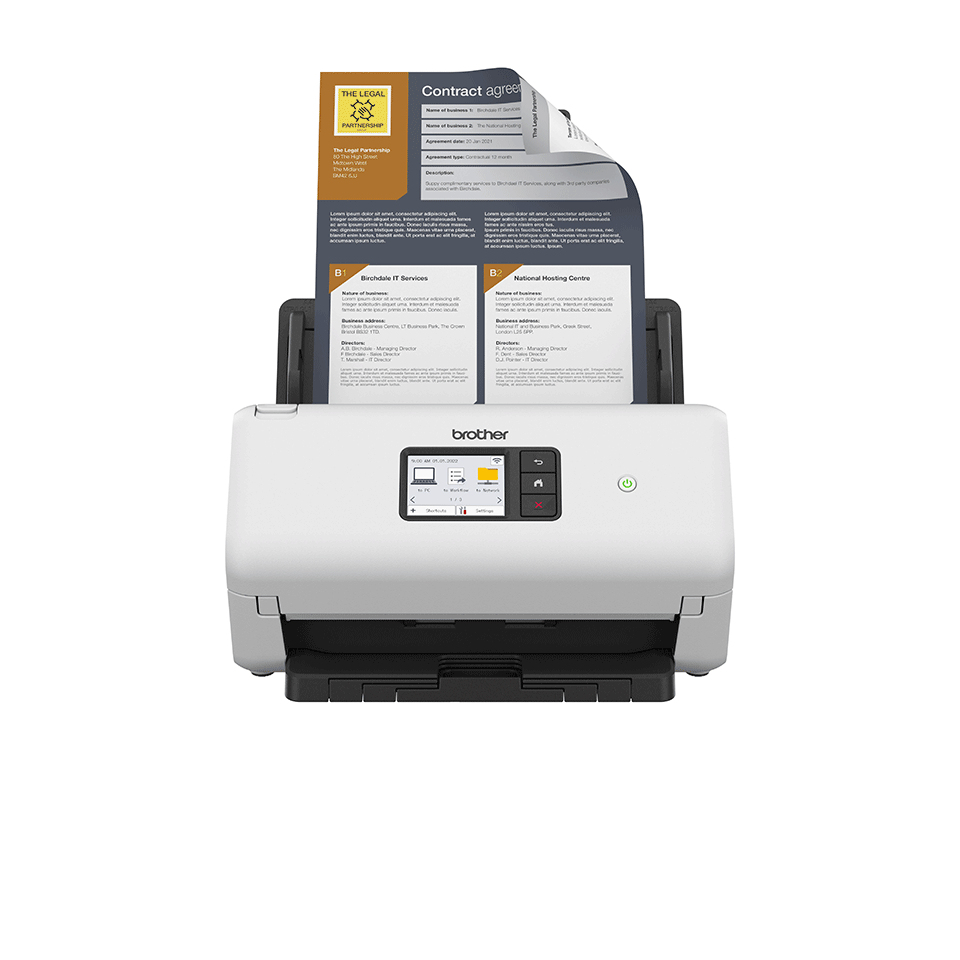

Brother ADS4550W Dokumentenscanner
|
557,82 EUR |
|||||||||||
|
( 663,81 EUR incl. VAT ) ≈ £473.03 | ≈ $625.32 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 544943 | ||||||||||
| Mfg Part No: | ADS4550WUN1 | ||||||||||
| UPC/EAN: | 4977766838443 | ||||||||||
| Weight: | 4.422 kg | ||||||||||
| Type: | ACCS | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Document Scanner from BrotherFurther products in category Document Scanner
All products of Brother
Product information for Brother ADS4550WUN1:
Schneller DIN A4 Dokumentenscanner mit LAN-und WLAN-AnschlussEinfach und intuitiv, mit einem benutzerfreundlichen Touchscreen und der Option einer Netzwerk- und Wireless-Verbindung. Perfekt für die gemeinsame Nutzung imTeam. Ideal zum schnellen und komfortablen Scannen zu Hause oder im Büro.
Highlights
- Brother ADS-4550 Dokumentenscanner
- Bis zu 35 Seiten/Min. Scangeschwindigkeit
- Bis zu 70 Bilder/Min. Duplex-Scan und fortgeschrittene Bildverarbeitung
- 60 Blatt DIN A4 Duplex-ADF
- 7,1 cm Touchscreen-Farbdisplay
- Auto Start Scan-Funktion
- Umfangreiches Softwarepaket
Produkttyp
- Dokumentenscanner
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- URA Tarif: Scanner
Versand
- WEEE: 71090241
Scanner
- Farbtiefe: 48 bit
- optische Auflösung Breite: 600 dpi
- optische Auflösung Höhe: 600 dpi
- Vorlageneinzug Art: ADF
- Vorlageneinzug Format: A4
- Vorlageneinzug Seiten: 60
- Scangeschwindigkeit Simplex max: 35 Seiten/min
- Scangeschwindigkeit Duplex max: 70 Bilder/min
- scannbare Papierformate: A4, A5, A6 (Postkarte)
- Scan To: Scannen an PC, Scannen an Bild, Scannen an SMB, Scannen an E-Mail-Server / Adresse, Scannen an FTP, Scannen an SFTP
- scannbares Papiergewicht min: 40 g/m²
- scannbares Papiergewicht max: 200 g/m²
Anschlüsse
- USB-Standard: USB 3.0 (USB 3.2 Gen 1), 2.0
- Datenschnittstellen: USB Host
Display
- Displayhighlights: 7,1 cm Touchscreen-Farbdisplay
- Displaytechnologie: LCD
- Farbdisplay
- Touchdisplay
Stromversorgung
- Netz
- Eingangsspannung: 100 V 240 V
- Leistungsaufnahme Betrieb: 25 W
- Leistungsaufnahme Standby: 2.3 W
Datenübertragung
- Ethernet-Standard: 10/100 MBit/s
- WLAN
- WLAN Standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
- Sicherheitsstandard: WEP, WPA, WPA2, WPA3
Papierzufuhr
- Papierkapazität: 60
- Papiergewicht min.: 40 g/m²
- Papiergewicht max.: 200 g/m²
Grundeigenschaften
- Farbe: Hellgrau, Schwarz
- Höhe: 63 cm
- Länge/Tiefe: 29 cm
- Breite: 30 cm
- Gewicht: 2.7 kg > Lieferumfang
- Brother ADS-4550W Dokumentenscanner
- Abnehmbarer ADF
- Netzteil
- Netzkabel
- USB-Kabel
- Installationsanleitung
- Produktsicherheitshinweise
| Design | |
| Scanner type | ADF scanner |
| Product colour | Black, White |
| Display diagonal | 7.11 cm (2.8") |
| Control type | Buttons, Touch |
| Touchscreen | |
| Colour display | |
| Built-in display | |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 60 sheets |
| Network | |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS |
| Mobile printing technologies | Apple AirPrint, Brother Mobile Connect |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services (Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client |
| Wi-Fi | |
| Ethernet LAN | |
| Wi-Fi Direct | |
| IPv6 support | |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Maximum scan resolution | 1200 x 1200 DPI |
| Custom media width | 50.8 - 215.9 mm |
| Maximum media length | 5 m |
| Product dimensions when closed (WxDxH) | 300 x 216 x 191 mm |
| Compliance certificates | GS mark, RoHS |
| Cable lock slot | |
| Packaging content | |
| Cables included | AC, USB |
| Warranty card | |
| Quick start guide | |
| AC adapter included | |
| ADF paper chute | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 391 mm |
| Package depth | 243 mm |
| Package height | 320 mm |
| Package weight | 4.5 kg |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| ISO A-series sizes (A0...A9) | A3, A4 |
| Card thickness (max) | 1.32 mm |
| Auto Document Feeder (ADF) media weight | 40 - 200 g/m² |
| Long-paper mode | |
| Performance | |
| Sensor type | Dual CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 5250 pages |
| Maximum duty cycle | 105000 pages per month |
| Scan to | E-mail Server, FTP, Image, Network folder, PC, SMB, USB |
| Scan drivers | SANE, TWAIN, WIA |
| Sound pressure level (max) | 59 dB |
| Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB port | |
| Power | |
| Power supply type | DC |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 2.3 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.7 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| Auto power off | |
| Scanning | |
| Optical scanning resolution | 600 x 600 DPI |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 35 ppm |
| ADF scan speed (colour, A4) | 35 ppm |
| Duplex ADF scan speed (b/w, A4) | 70 ipm |
| Duplex ADF scan speed (colour, A4) | 70 ipm |
| Colour scanning | |
| Duplex scanning | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 630 mm |
| Height | 290 mm |
| Weight | 2.7 kg |
| Folded width | 30 cm |
| Folded depth | 15.4 cm |
| Folded height | 15.8 cm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
