BlackBox VX-HDMI-TP-70M
4K HDBaseT Lite Extender, CATx, up to 70m

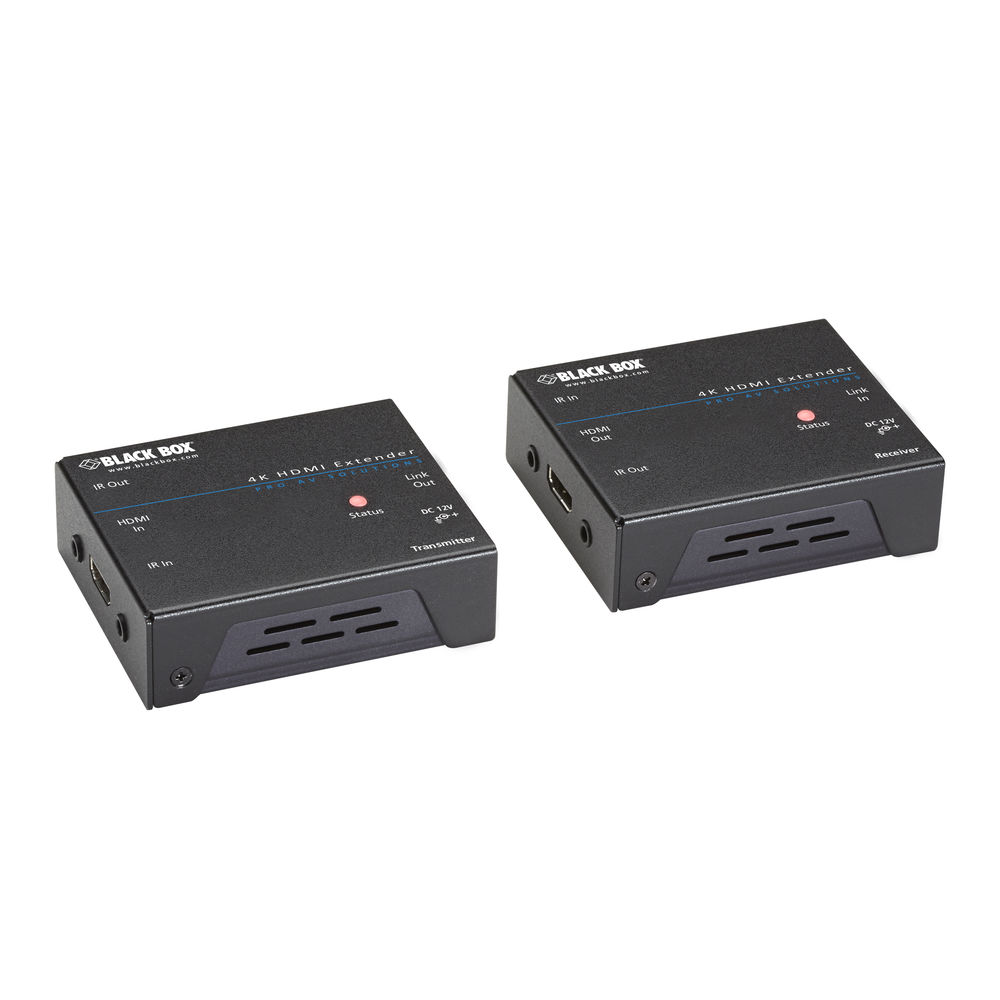

4K HDMI IR Extender 70M

The 4K HDMI IR Extender 70M enables long-distance HDMI signal transmission, offering a cost-effective way to display 4K and HD content on a remote HDMI screen. This extender set, which includes a transmitter and receiver, transmits HDMI video, audio, and IR control signals up to 70 meters (1080p) or 40 meters (4K) with lossless compression and excellent transmission quality. This extender provides a practical solution for digital signage, surveillance, and other applications in home entertainment and professional installations.

Using just a single CAT5e/6 cable, the extender reliably extends HDMI signals and optimizes display resolution with its EDID copy function. HDCP-protected content from Blu-rays is also transmitted losslessly. The system is easy to install and convenient to use even in environments without nearby power access, thanks to PoE support. Infrared control allows convenient operation of the playback device directly at the display location.

The 4K HDMI IR Extender is ideal for use in conference rooms, hospitality, digital signage applications, and surveillance networks.

Technical Data:

Video Resolution:

• Supports 1080p @ 70 m and 4K @ 40 m over a CAT5e/6 cable

Extension Cable:

• CAT5e/6 for up to 70 m (1080p) or 40 m (4K)

Audio and Video:

• Lossless transmission of HD video, audio, and IR control signals
• HDMI video bandwidth: Up to 10.2 Gbps
• Supports formats such as Deep Color, HD-3D, 4Kx2K video, and HD audio formats

Control Signals:

• Infrared control with IR emitter and IR receiver for remote control of the source

Connections:

Transmitter:

• 1x HDMI input
• 1x RJ-45 output
• 2x IR (1 in, 1 out)

Receiver:

• 1x RJ-45 input
• 1x HDMI output
• 2x 3.5 mm IR jacks (in/out)

EDID:

• EDID copy function for optimal display settings

Power Supply:

• 12V DC

Dimensions:

• Transmitter: 2 cm (H) x 8 cm (W) x 5 cm (D)
• Receiver: 2.3 cm (H) x 8 cm (W) x 6.7 cm (D)

Weight:

• Transmitter: 0.2 kg
• Receiver: 0.3 kg

Environmental Conditions:

• TAA compliant: Yes

Applications:

• Hospitality (hotels and conference rooms)
• Digital signage (e.g., at airports and shopping centers)
• Surveillance networks
• Whole-home networking
• Point-to-point installations

Note: The range may vary depending on cable quality, signal source, and display type. For environments with high electrical interference (EMI/RFI), it is recommended to use shielded STP cabling.

Warranty:

• 3 years Double Diamond™ (standard)
