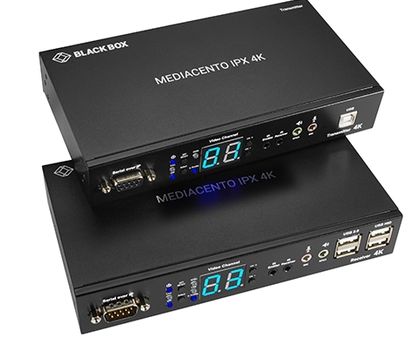

BlackBox VX-HDMI-4KIP-TX MEDIACENTO IPX 4K TRANSMITTER - HDMI, USB, SERIAL, IR, AUDIO

HDMI-over-IP Extender – MediaCento IPX 4K, USB Audio Serial IR

The HDMI-over-IP Extender MediaCento IPX 4K allows flexible distribution and extension of 4K UHD HDMI signals over an existing Gigabit network. Supporting resolutions up to 4096 x 2160 at 30 Hz or 1080p at 60 Hz and all 3D formats, it is ideal for demanding AV environments. With latency of less than one frame (<33 ms), video transmissions are virtually delay-free. MediaCento IPX 4K allows HDMI distribution from one source to multiple displays and supports video walls up to 8x8 and matrix setups effortlessly.

MediaCento IPX 4K offers advanced control options through USB 2.0, bidirectional IR, and RS-232, seamlessly integrating into professional AV installations. PoE (Power over Ethernet) support reduces cabling requirements, as no external power source is needed at the display. The optional MediaCento Controller provides centralized management and advanced control of video wall and matrix configurations.

MediaCento IPX 4K is ideal for interactive digital signage applications and touchscreens in hotels, retail, and event spaces. The HDMI-over-IP Extender stands out for its easy installation, compatibility with touchscreens and KVM consoles, and minimal network bandwidth usage without visible delay.

Technical Data:

Resolution:

• Up to 4K UHD 4096 x 2160 @ 30 Hz, 1080p @ 60 Hz
• Supports all 3D formats

Distance:

• CATx: up to 100 m
• Single-mode fiber (SFP): up to 30 km (depending on SFP module)

Latency:

• 4K @ 30 Hz: < 1 Frame (33 ms or less)
• 1080p @ 60 Hz: 17 ms

Control:

• USB 2.0, bidirectional IR, and RS-232
• User control via push buttons: Set/Reset, Function, Video Channel

Connections:

Transmitter:

• HDMI F-video input
• DB9 male for serial RS-232 control port
• RJ-45 network port
• 2x 3.5 mm audio jacks
• SFP slot for fiber optics
• 4x USB Type A
• 2x 3.5 mm (IR)

Receiver:

• 2x HDMI F video outputs, 1x HDMI F video input
• DB9 female for serial RS-232 control port
• RJ-45 network port
• 2x 3.5 mm audio jacks
• SFP slot for fiber optics
• 1x USB Type B jack

PoE:

• IEEE 802.3at compliant; operating at 48 VDC, input range: 36 to 57 VDC
• Consumption: 10.5 W

Power Supply:

• 1x 5 VDC, 3 A power adapter

Environmental Conditions:

• Operating temperature: 0 to 50 °C
• Storage temperature: -20 to +60 °C

Indicators:

• LEDs for power, link, function, EDID, SFP, video profile selection

Dimensions and Weight:

• Per unit: 3.2 x 9.8 x 18 cm
• Weight: 0.45 kg per unit

TAA Compliant: Yes

Warranty:

• 3 years Double Diamond™ (standard)
