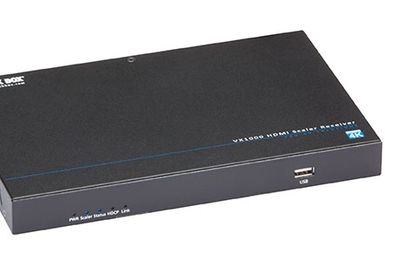

BlackBox VX-1003-RX VX1000 HDMI SCALING RECEVIER WITH AUDIO
|
592,32 EUR |
|
|
( 704,86 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1793753 |
|---|---|
| Mfg Part No: | VX-1003-RX |
| UPC/EAN: | 00822088122876 |
| Weight: | 1.89 kg |
Product information for BlackBox VX-1003-RX:
Receive and scale HDMI video, audio, RS-232, and Ethernet signals over distances up to 100 m. Designed for professional AV environments with CATx transmitters and switchers.
Supports up to 4K (UHD) resolution for superior video quality.
Reliable connection with standard PoC using a single power source.
Scale and adjust remote video resolutions up to 4K.
Audio de-embedding allows analog or digital audio output to external audio systems.
HDMI EDID management for automated configuration.
HDCP 2.2 compliant for content protection.
RS-232 and Ethernet pass-through for extended control options.
All connections on one side for easy installation.
Ideal for scaling with the 4 x 1 Presentation Switcher (AVSC-0401H-R2).
Control via rotary switch, RS-232, or Telnet.
Warranty: 3 Years Double Diamond™ (Standard)
Technical Specifications:
Certifications:
- FCC, CE, UL, RoHS, WEEE
Connectors:
- (1) CATx input
- (1) HDMI output
- (2) Ethernet ports for passthrough or control
- (1) 3.5 mm IR input and (1) 3.5 mm IR output
- (1) RCA S/PDIF output
- (1) 3-Pin Phoenix Audio Output (L/R, Ground)
- (1) 3-Pin Phoenix RS-232 (TX, RX, GND)
- (1) USB Type A port
Supported Leads:
- HDMI, CATx, USB, RS-232
User Interface:
- RS-232, Telnet (no GUI)
Indicators:
- LEDs: (1) Power, (1) Scaling, (1) Status, (1) HDCP, (1) CATx Connection, (2) Ethernet Connection/Status
Scaling Resolutions:
- UHD30: 3840 x 2160/30
- FHD: 1920 x 1080/60
- HD: 1280 x 720/60
- WUXGA: 1920 x 1200/60
- WXGA: 1280 x 800/60
Source Selection:
- Via switcher: Control via push buttons, IR remote, RS-232, Telnet, or Web-GUI
Power:
- External Power Supply: - Input: 100-240 VAC, 50/60 Hz, 1.5 A; IEC320 C14
- Operating Temperature: 0 to 45 °C
- Storage Temperature: -20 to 70 °C
- Humidity: 90% non-condensing
- Output: 12 VDC, 3.0 A
Environmental Conditions:
Physical Data:
- Dimensions: 2.5 H x 23.4 W x 14.4 D cm
- Weight: 0.9 kg
Included Items:
- (1) Presentation Switch Receiver
- (1) Power Supply (12 VDC)
- (2) IR Sensors
- (1) Mounting Bracket Set for Surface Mounting
