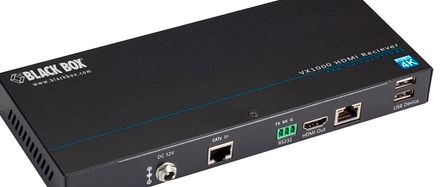

BlackBox VX-1001-KIT VX1000 HDMI AND USB EXTENDER KIT
|
573,12 EUR |
|
|
( 682,01 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1793757 |
|---|---|
| Mfg Part No: | VX-1001-KIT |
| UPC/EAN: | 00822088122852 |
| Weight: | 1.81 kg |
Product information for BlackBox VX-1001-KIT:
Extend HDMI audio and video signals, Ethernet, RS-232, and USB over CATx cable up to 100 m, providing reliable, ultra-HD video quality.
Supports up to 4K (UHD) resolutions for sharp image quality.
True 48V PoC (Power over Cable) requires only one power source.
USB support for keyboard and mouse connectivity.
Automatic HDMI EDID management for optimal display performance.
HDCP 2.2 compliant for secure content transmission.
RS-232 and Ethernet pass-through for comprehensive signal coverage.
All connections on one side of the device for easy installation.
Works with 4 x 1 and 8 x 2 presentation switchers (AVSC-0401H-R2, AVSC-0802H).
Specifications:
Approvals:- CE, FCC, RoHS
Video:
- Input: VW-1001-RX: 1 x CATx; VW-1001-TX: 1 x HDMI IN, HDMI 1.4 with HDCP 2.2
- Output: VW-1001-RX: 1 x HDMI OUT, HDMI 1.4 with HDCP 2.2
- Supported Resolutions: 480i, 480p, 576i, 576p, 720P, 1080i, 1080p, 3840 x 2160 at 24/25/30/50/60 Hz
- Max Pixel Clock Rate: 297 MHz
- Video Impedance: 100 Ω
Audio:
- Supported Formats: Stereo, LPCM 5.1, LPCM 7.1, Dolby True HD, DTS-HD Master Audio
Control and Connectivity:
- Control Method: 1 x RS-232, 1 x Ethernet, 2 x USB-A ports
Power and Protection:
- ESD Protection: ±8 kV (Air Discharge), ±4 kV (Contact Discharge)
- Surge Protection: ±1 kV voltage
- Electrical Burst Protection: 1 kV (Data Cable), 2 kV (Power Cable)
- Power Supply: 12 V DC, 1.5 A
- Power Consumption: 13.08 W (1080p) to 13.2 W (4K@60Hz)
Physical Properties:
- Dimensions: 2.5 H x 22 W x 9.32 D cm
- Weight: 0.5 kg
Environmental:
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -20°C to 70°C
- Humidity: 10% to 90%, non-condensing
