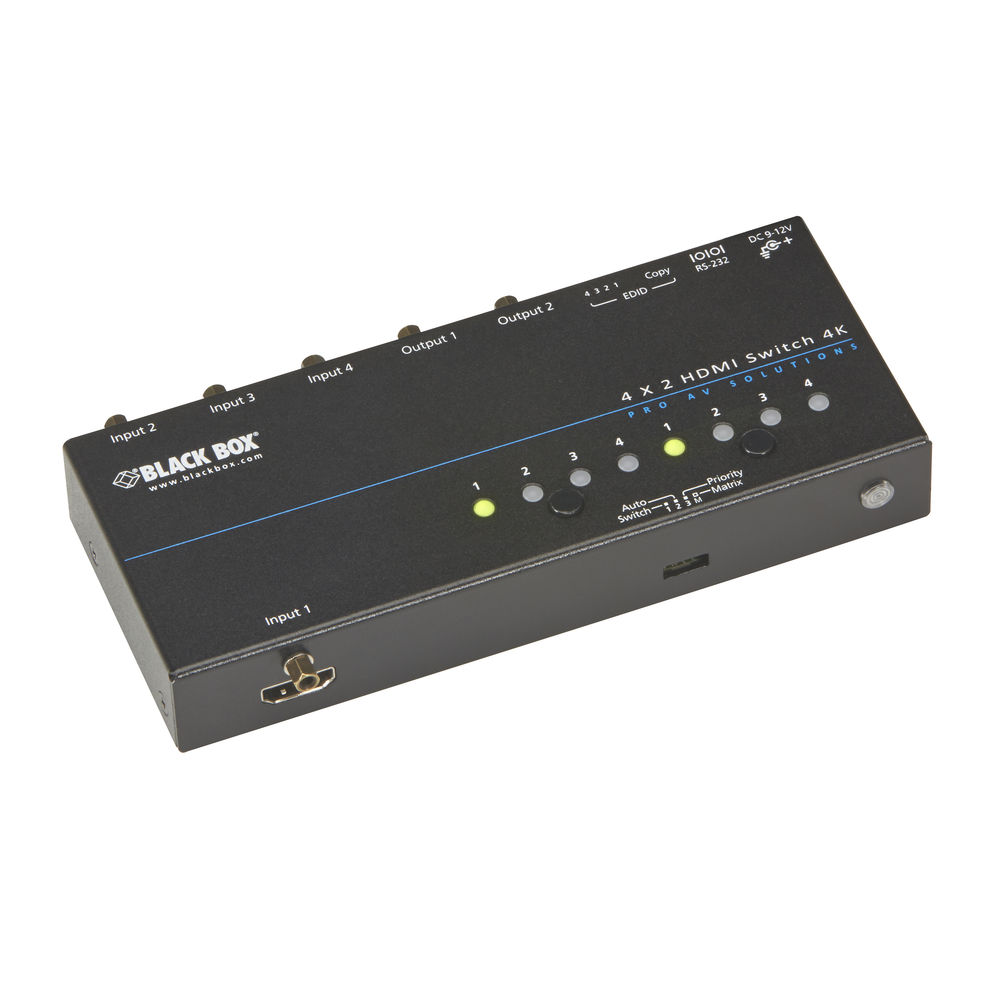

BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch

Your rating:
Average rating
product review for BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch
( 4.4 / 5 ) 11 ratings
BlackBox VSW-HDMI4X2-4K
This image may differ from the desired article.
269,76 EUR
( 321,01 EUR incl. VAT )
≈ £224.71  |  ≈ $295.93
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 96 workdaysinfo_outline
In Stock: >10 pieces
1x BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch
Lieske Part No.:964470
Mfg Part No: VSW-HDMI4X2-4K
Weight:0.88 kg
Graduated prices net
From piecesPrice per pieces
4267,74 EUR
8265,71 EUR
12263,69 EUR
16261,67 EUR

Product information for BlackBox VSW-HDMI4X2-4K:

The 4K HDMI Matrix Switch from BlackBox enables flexible control of video and audio signals between multiple sources and two output devices. The device is designed for use in environments with multiple HD displays, such as corporate cinemas, conference rooms, classrooms, or broadcast studios. It allows switching between two or four HDMI sources to two HDMI displays in any combination, eliminating the need for manual cable reconnection. Signals can be sent simultaneously to both outputs, enabling the same source to be displayed on both screens.

Applications
This switch is particularly suitable for applications where multiple sources need to be distributed or combined across multiple screens. Examples include presentations in conference rooms, digital signage, or monitoring systems with multiple monitors. Support for 4K video and various resolutions makes it flexible for use in environments requiring high image quality.

Functions and Features in Detail
The device supports 4K video as well as resolutions such as 1080p, 720p, 480i/480p, 576i/576p, 1080i, and WUXGA 1920 x 1200. It operates with TMDS formats for 10-, 12-, 16-, or 32-bit Deep Color, supports an aspect ratio of 19:10, data rates up to 6.75 Gbps, and 3D formats. The HDCP 2.0 compatibility ensures playback of protected content, as required by Blu-ray players or streaming services. The automatic EDID function and manual copy function ensure optimal compatibility with various monitors and displays.

Technology Explained Simply
The Matrix Switch allows any of the available inputs (2 or 4 HDMI) to be switched to either of the two outputs. Control is via the front panel buttons or the included IR remote control. The front LEDs indicate the scanning status of inputs and outputs. The device retains the last operating state even after a restart, so settings do not need to be reconfigured. Power supply is via an external power adapter providing 9 V and 1.5 A.

Compatibility and Accessories
The switch is compatible with all HDMI source devices, including PC monitors, plasma HD displays, HDTVs, and audio receivers/amplifiers. Connections consist of two or four HDMI inputs, two HDMI outputs, and a DB9 control port. Certifications include FCC, CE, RoHS2, and UL.

Installation and Mounting
Installation involves connecting HDMI sources to the inputs and displays to the outputs. Control via front panel buttons or IR remote control requires no additional software or network connection. Operating temperature ranges from 0 to 40 °C, storage temperature from -20 to 60 °C. Maximum operating altitude is 3,300 m, and humidity is limited to 80%.

Operational Advantages
Thanks to flexible signal distribution and the ability to send signals simultaneously to multiple outputs, the switch reduces the need for manual cable changes. Support for various resolutions and formats ensures broad applicability. The integrated EDID function and retention of the last state enhance user-friendliness and reliability in daily operation.

Batteries are not included in the delivery scope.

General
Number of inputs2 or 4 HDMI
Number of outputs2 HDMI
Supported resolution4K, 1080p, 720p
HDCP version2.0
Current supply9 V
Operation temperature0 to 40 °C
Storage temperature-20 to 60 °C
Air humidity80 %
Displays2 or 4 LEDs for input status
User controlPush-button, IR remote control
Control connection1 DB9
ApprovalsFCC, CE, RoHS2, UL


Questions & answers

What is the delivery time of BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch?

The article BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch is currently in stock

According to our experience the article is ready for dispatch within 96 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox VSW-HDMI4X2-4K to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch always at the best possible price. We can give you a discount of 2% on BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of BlackBox VSW-HDMI4X2-4K 4K 4x2 matrix switch we can offer you a price of 267,74 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
