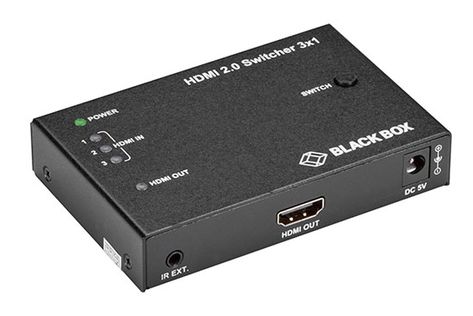

BlackBox VSW-HDMI2-4X1 4-PORT HDMI 2.0 VIDEO SWITCH 4K 60 HZ 4:4:4 HDCP 1.4/2,2, IR

HDMI 2.0 4K Video Switch - 3x1 / 4x1

Affordable, compact, and easy-to-install HDMI switch for reliable switching of 4K HDMI signals between three or four sources and a display.

3- or 4-to-1 HDMI switching for UHD video.
Fully compatible with HDMI 2.0 and HDCP 2.2.
HDMI inputs and outputs support resolutions up to 4K at 60 Hz, 4:4:4 8 Bit.
Control via top button, IR remote, or auto-switch option.
Compact, space-saving design.
Locking HDMI cables to prevent accidental disconnection.
CE, FCC, IC, RCM, and VCCI certifications.

The HDMI 2.0 Video Switch allows easy switching between three (3x1 model) or four (4x1 model) HDMI sources to a single display. It fully supports HDMI 2.0 and HDCP 2.2 compatibility, supporting 4K UHD resolutions up to 60 Hz with 4:4:4 color subsampling at 8-bit color depth. Operable via the integrated top button, IR remote, or automatic switch mode, the switch is compact, space-saving, and easy to install.

With a bandwidth of up to 18 Gbps, this switch provides signal switching with:
- Higher resolutions
- Higher frame rates
- Multiple Full HD streams simultaneously
- 21:9 aspect ratio.

Technical Specifications:

Connections:

• VSW-HDMI2-3X1: (3) HDMI input ports, (1) HDMI output port, (1) 3.5-mm port for IR receiver
• VSW-HDMI2-4X1: (4) HDMI input ports, (1) HDMI output port, (1) 3.5-mm port for IR

Status Indicators:

• VSW-HDMI2-3X1: (3) LEDs for input status, (1) LED for power status
• VSW-HDMI2-4X1: (4) LEDs for input status, (1) LED for output status, (1) LED for power status

Material:

• Steel

Environmental Conditions:

• Operating temperature: 0 to 45 °C
• Storage temperature: -20 to 70 °C
• Humidity: 10 - 90% non-condensing

Physical Dimensions:

• Size: 100 x 19.5 x 66.2 mm (H x W x D)
• Weight: 0.22 kg

User Controls:

• (1) Switching button

Certifications and Compliance:

• FCC, CE, RoHs, TAA-compliant: Yes
