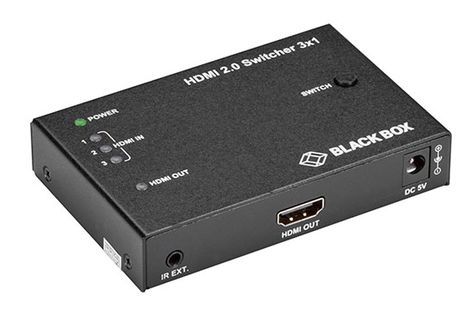

BlackBox VSW-HDMI2-3X1 3-PORT HDMI 2.0 VIDEO SWITCH 4K 60 HZ 4:4:4 HDCP 1.4/2,2, IR
|
75,20 EUR |
|
|
( 89,49 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1794047 |
|---|---|
| Mfg Part No: | VSW-HDMI2-3X1 |
| UPC/EAN: | 00822088142515 |
| Weight: | 0.23 kg |
Product information for BlackBox VSW-HDMI2-3X1:
Cost-effective, compact, and easy-to-install switch for reliable switching of 4K HDMI signals between three or four sources and a display.
3- or 4-to-1 HDMI switching for UHD video.
Fully compatible with HDMI 2.0 and HDCP 2.2.
HDMI inputs and outputs support resolutions up to 4K at 60 Hz 4:4:4 8 Bit.
Control via top button, IR remote, and auto-switch options.
Compact design for space-saving installation.
Locking HDMI cables support secure connections.
Certified by CE, FCC, IC, RCM, and VCCI.
This HDMI 2.0 4K video switch enables reliable switching between up to three (3x1 model) or four (4x1 model) HDMI sources to a single display. With HDMI 2.0 and HDCP 2.2 compatibility, it supports high-definition 4K content at 60 Hz with 4:4:4 color subsampling and 8-bit color depth. Control is simple with the top button, IR remote, or auto-switch mode. Compact and easy to install, this switch is ideal for home theaters, conference rooms, or digital signage applications.
With a maximum bandwidth of 18 Gbps, you can switch high-quality signals across multiple sources to a single display, benefiting from:
- Higher resolutions
- High frame rates
- Multiple Full-HD streams
- 21:9 aspect ratio.
Technical Specifications:
Connectors:
- VSW-HDMI2-3X1: (3) HDMI input ports, (1) HDMI output port, (1) 3.5-mm port for IR receiver
- VSW-HDMI2-4X1: (4) HDMI input ports, (1) HDMI output port, (1) 3.5-mm port for IR
Status Indicators:
- VSW-HDMI2-3X1: (3) LEDs for input status, (1) LED for power status
- VSW-HDMI2-4X1: (4) LEDs for input status, (1) LED for output status, (1) LED for power status
Enclosure Material:
- Steel
Environmental Conditions:
- Operating temperature: 0 to 45 °C
- Storage temperature: -20 to 70 °C
- Humidity: 10 - 90% non-condensing
Physical Dimensions:
- Size: 100 x 19.5 x 66.2 mm (H x W x D)
- Weight: 0.22 kg
User Controls:
- (1) Switching button
Certifications and Compliance:
- CE, FCC, IC, RCM, VCCI, TAA-compliant: Yes
