BlackBox VSP-HDMI2-1X4 4-PORT SPLITTER 4K 60 HZ 4:4:4 HDMI 2.0 UHD HDCP 1.4/2.2

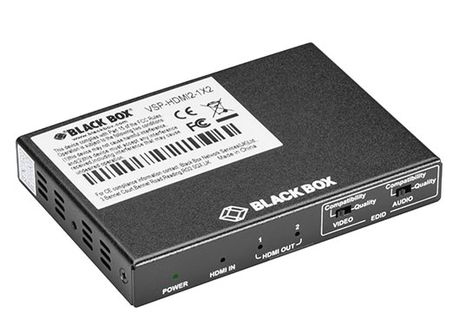

HDMI Splitter, HDMI 2.0 4K60, 1x2 or 1x4

Secure, reliable audio and 4K video distribution from one HDMI source to up to four HDMI displays

Slim profile, space-saving and easy to install.
Distributes one HDMI source to two or four HDMI displays.
Supports HDMI 2.0 with resolutions up to 4K at 60 Hz 4:4:4, 8 Bit and HDCP 2.2.
Supports multi-channel PCM, Dolby TrueHD, and DTS HD audio with up to 7.1 surround sound.
Easy EDID management for optimal video and audio quality.
Locking HDMI connectors secure your cables.
Compliant with CE, FCC, IC, RCM, and VCCI standards.
High frame rates and support for multiple Full HD streams.
21:9 aspect ratio support.
Warranty: 3 Years Double Diamond™ (Standard)

This HDMI 2.0 splitter provides a secure and reliable distribution of audio and 4K video from a single HDMI source to up to four displays. Supporting HDMI 2.0 resolutions up to 4K at 60 Hz (4:4:4) and HDCP 2.2, it ensures sharp image and sound quality, making it ideal for home setups, conference rooms, or digital signage. The device also supports EDID and HDCP management, ensuring smooth transmission between all devices for authentic display on connected screens.

Technical Specifications:

Input:
– (1) HDMI Type A female

Output:

– VSP-HDMI2-1X2: (2) HDMI Type A female
– VSP-HDMI2-1X4: (4) HDMI Type A female

Signal Type:

– HDMI 2.0 with HDCP 2.2

Supported Resolutions:

• VSP-HDMI2-1X2: 640 x 480 up to 4096 x 2160P
• VSP-HDMI2-1X4: SMPTE and VESA up to 4096 x 2160

Audio Format:

– PCM 2.0/5.1/7.1, Dolby TrueHD, DTS HD Master Audio

Maximum Data Rate:

– Up to 18 Gbps

Input Signals:

– Video: 0.5 – 1.0 V p-p
– DDC: 5 V p-p

Pixel Clock:

– Maximum 600 MHz

Power Supply:

– VSP-HDMI2-1X2: 12 VDC, 0.5 A, max consumption: 3 W
– VSP-HDMI2-1X4: 12 VDC, 1 A, max consumption: 4 W

Environmental Conditions:

– Operating Temperature: 0 to 45 °C
– Storage Temperature: -20 to +70 °C
– Humidity: 10 to 90%, non-condensing

ESD Protection:

– Human-Body Model: ±8 kV (air)/±4 kV (contact)

Dimensions:

– VSP-HDMI2-1X2: 7 x 10 x 1.5 cm (H x W x D)
– VSP-HDMI2-1X4: 1.8 x 16.7 x 6.9 cm (H x W x D)

Weight:

– VSP-HDMI2-1X2: 0.2 kg
– VSP-HDMI2-1X4: 0.3 kg

Certifications:

– CE, FCC, IC, RCM, VCCI
