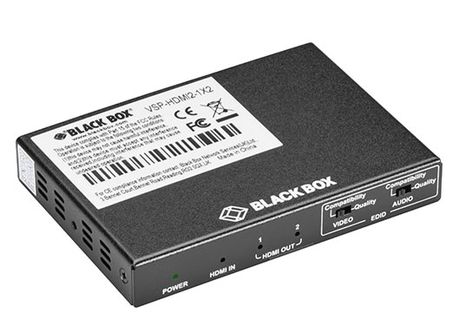

BlackBox VSP-HDMI2-1X2 2-PORT SPLITTER 4K 60 HZ 4:4:4 HDMI 2.0 UHD HDCP 1.4/2.2
|
122,88 EUR |
|
|
( 146,23 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 1794065 |
|---|---|
| Mfg Part No: | VSP-HDMI2-1X2 |
| UPC/EAN: | 00822088132127 |
| Weight: | 0.2 kg |
Product information for BlackBox VSP-HDMI2-1X2:
Secure, reliable audio and 4K video distribution from one HDMI source to up to four HDMI displays
Slim, space-saving profile, easy to install.
Distributes one HDMI source to two or four HDMI displays.
Supports HDMI 2.0 with resolutions up to 4K at 60 Hz (4:4:4, 8 Bit) and HDCP 2.2.
Supports multi-channel PCM, Dolby TrueHD, and DTS HD audio with up to 7.1 surround sound.
Simple EDID management for optimal video and audio quality.
Locking HDMI connectors for secure cable connections.
CE, FCC, IC, RCM, and VCCI certified.
High frame rates and multiple Full HD streams simultaneously.
Supports cinematic 21:9 aspect ratio.
Warranty: 3 Years Double Diamond™ (Standard).
Ensure your 4K content always displays correctly on your screens. The HDMI 2.0 splitter supports resolutions up to 4K at 60 Hz 4:4:4 8 Bit, and HDCP 2.2 compliance. This device also supports EDID and HDCP management for seamless content authentication across all connected displays.
With bandwidth up to 18 Gbps, this device distributes content to two or four displays, enabling:
Higher resolutions
High frame rates
Multiple Full HD streams
Cinematic 21:9 aspect ratio
Technical Specifications:
Input:
- (1) HDMI Type A female
Output:
- VSP-HDMI2-1X2: (2) HDMI Type A female
- VSP-HDMI2-1X4: (4) HDMI Type A female
Signal Type Supported:
- HDMI 2.0 with HDCP 2.2
Resolutions Supported:
- VSP-HDMI2-1X2: 640 x 480 up to 4096 x 2160P
- VSP-HDMI2-1X4: SMPTE and VESA resolutions up to 4096 x 2160
Audio Format:
- PCM 2.0/5.1/7.1, Dolby TrueHD, DTS HD Master Audio
Maximum Data Rate:
- Up to 18 Gbps
Input Signals:
- Video Signal: 0.5 – 1.0 V p-p
- DDC Signal: 5 V p-p
Pixel Clock:
- Maximum 600 MHz
Power Supply:
- VSP-HDMI2-1X2: 12 VDC, 0.5 A, 3 W max consumption
- VSP-HDMI2-1X4: 12 VDC, 1 A, 4 W max consumption
Environmental:
- Operating temperature: 0 to 45 °C
- Storage temperature: -20 to +70 °C
- Humidity: 10 to 90%, non-condensing
ESD Protection:
- Human-Body Model: ±8 kV air / ±4 kV contact
Dimensions:
- VSP-HDMI2-1X2: 7 x 10 x 1.5 cm (H x W x D)
- VSP-HDMI2-1X4: 1.8 x 16.7 x 6.9 cm (H x W x D)
Weight:
- VSP-HDMI2-1X2: 0.2 kg
- VSP-HDMI2-1X4: 0.3 kg
Certifications:
- CE, FCC, IC, RCM, VCCI
