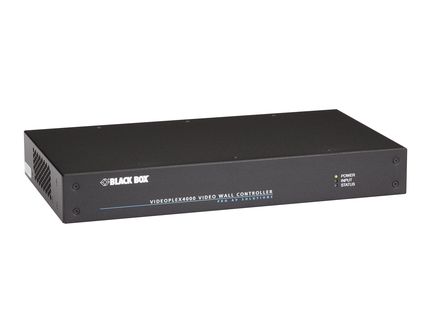

BlackBox VSC-VPLEX4000 VIDEOPLEX 4000 VIDEO WALL CONTROLLER - 4K, HDMI

VideoPlex 4000 Video Wall Controller, 4K HDMI/DP

Create stunning video walls with four or more displays.

The VideoPlex 4000 Video Wall Controller is a versatile controller and scaler capable of displaying Full HD HDMI video across up to four monitors per controller. It also supports displaying a 4K image across all four screens. With two HDMI 1.4 (4K30) inputs and one DisplayPort 1.2 (4K60) input, the controller provides a flexible solution for connecting your sources. Multiple controllers can be daisy-chained to create larger video walls, and the four independent HDMI outputs allow for content display on four separate screens. Screens can be arranged in custom configurations beyond the standard rectangular layout, with automatic image adjustment for seamless integration across display frames.

With user-friendly software offering drag-and-drop configuration and video wall preview, the controller is easy to operate. Features such as cropping, scaling, and rotating video images, as well as assigning content to specific screens, are also available. The controller supports HDCP-protected content on all inputs and outputs, and dual Ethernet ports facilitate network connectivity and cascading.

Warranty: 3-Year Double Diamond™ (Standard)

Product Details:

• Video Wall Configuration: Customize display arrangement, scaling, and rotation; unlimited options for creative designs.
• Video Inputs:
- DisplayPort 1.2 (4K60), HDMI 1.4 (4K30)

• Flexible Layout: Allows display arrangements with gaps, irregular shapes, or themes for personalized installations.
• Network Connectivity: Two Ethernet ports enable network connections; cascading over a shared LAN connection.
• User-Friendly Interface: Drag-and-drop software with preview functionality for easy setup and management of all daisy-chained units.

Technical Specifications:

• Approvals: FCC, TUV, CE, UL®, RoHS, WEEE
• Interface Ports: Two 100BASE-T Ethernet ports with built-in managed switch, USB 2.0 Type B
• Firmware Support: Updates via USB and Ethernet
• Genlock Input: Analog Black-Burst through dedicated BNC port
• Resolutions:
- Inputs: HDMI 1.4 up to 3840 x 2160 @ 30 Hz; DisplayPort 1.2 up to 3840 x 2160 @ 60 Hz
- Outputs: HDMI up to 1080p/60

• Input Surface: Supports up to 8K x 8K
• Supported Video Formats: HDMI and DisplayPort inputs, HDMI outputs
• OS Compatibility: Compatible with all major operating systems and HDMI-compliant hardware
• USB Support: USB 2.0 Full Speed (12 Mbps); firmware updates via USB
• Control Buttons: Power switch
• Interfaces:
- Inputs: 2x HDMI, 1x DisplayPort
- Outputs: 4x HDMI, 1x DisplayPort passthrough

• Indicators: Three LEDs (Power, Input, Status)
• Environmental Specs:
- Temperature: 0 to 35° C (Operating), -20 to +70° C (Storage)
- Relative Humidity: 90% non-condensing

• Power Supply: Internal, 100-240 V AC, 50/60 Hz, max. power consumption 30 W
• Dimensions: 1.7H x 31,5 cm ( 12,4 inch )W x 6.8D (4.4 x 31.6 x 17.2 cm)
• Weight: 1.86 kg

TAA Compliant: Yes
