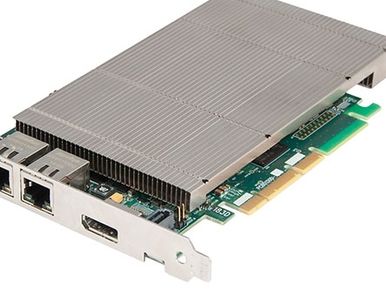

BlackBox VCC-STREAM H.264 DECODING CARD

Radian Video Wall Controller Streaming Card - H.264/H.265 IP Stream Encoder/Decoder

Powerful and scalable H.264/H.265 streaming solution for decoding up to twelve 1080p30 streams and encoding up to eight streams.

This streaming card is ideal for Radian VideoWall Controller solutions, offering a robust design with a dedicated processor and dual Ethernet ports. It supports simultaneous encoding and decoding of multiple H.264/H.265 streams, allowing for decoding of up to twelve 1080p30 streams or encoding of up to eight 1080p30 streams. Capacity can be increased by adding additional streaming cards, and capture cards can be used to add flexibility with local content sources.

In a video wall system, it is crucial to accommodate a variety of content types and sources, both local and remote. This H.264/H.265 streaming card allows remote streaming content to be pulled in over IP from CCTV, remote desktops, and other network locations, and decoded for display on your video wall. It also enables local content to be encoded and sent to remote locations on the network for decoding and display at the destination.

With dual Ethernet connectivity and a dedicated processor, you can encode or decode multiple content streams simultaneously. Decode up to twelve 1080p30 streams, or encode up to eight 1080p30 streams; expand encoding and decoding capacity by adding more cards, and enhance flexibility by adding capture cards to connect local sources.

Form Factor: PCIe Gen2 x4
Power Consumption: 1.2A @ 12V; 0.1A @ 3.3V; Max Power 15W

Supported Resolutions:

• Up to:
- (1x) 4K60 or
- (3x) 4K30 or
- (6x) 1080p60 or
- (12x) 1080p30

Connectors: 2x RJ45
Operating Temperature: 32 to 95° F (0 to 35° C)
Storage Temperature: -4 to +158° F (-20 to +70° C)
Dimensions: 4.37 in. W x 6.57 in. D (111 x 167 mm)
TAA Compliant: Yes
