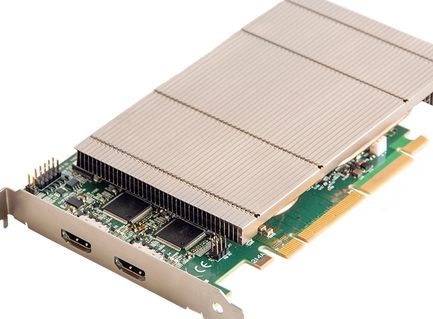

BlackBox VCC-HDMI2-2 RADIAN FLEX VIDEO WALL CAPTURE CARD - HDMI 2.0 4K 60HZ 4:4:4

Radian Video Wall Controller Capture Card - HDMI 2.0 4K60 4:4:4, HDCP 2.2, 2-Channel

Capture two channels of HDMI 2.0 video input with HDCP 2.2 support at up to 4K60 with full 4:4:4 color sampling for use on your video wall.

This high-performance capture card is designed for Radian Video Wall Controller solutions, providing two HDMI 2.0 capture channels with HDCP 2.2 support at resolutions up to 4K60 with full 4:4:4 color sampling, ensuring vivid and high-quality video capture. With a PCIe Gen3 x8 form factor, it offers a 6 Gbps capture bandwidth, a full 10-bit processing pipeline, and includes 2GB of frame buffer memory.

The card is compatible with Windows® WDM and is ideal for streaming applications, allowing captured video to be compressed and streamed via Windows Media Encoder, with playback available through Windows® Media Player. This capture card can be used with any application compatible with Windows® DirectShow technology.

DirectShow drivers for WDM Streaming support applications such as Microsoft Media Encoder®, VLC, VirtualDub, and other DirectShow-compatible software for video encoding, recording, and streaming.

Warranty: 1-Year Double Diamond™ (Standard)

Specifications:

• Form Factor: PCIe Gen3 x8
• Channels: 2
• Frame Buffer Memory: 2GB
• Operating Temperature: 32 to 95° F (0 to 35° C)
• Power Consumption: 1.7A @ 12V; 0.1A @ 3.3V; Max Power 21W
• Resolution: 4K60 4:4:4
• Storage Temperature: -4 to +158° F (-20 to +70° C)
• Connectors: 2x HDMI
• Dimensions: 4.3 in. W x 7.67 in. D (110 x 195 mm), including heat sink
• TAA Compliant: Yes
