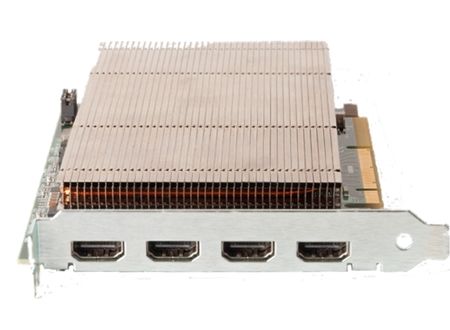

BlackBox VCC-HD-4-H 4 CHANNEL HD CAPTURE CARD WITH HDMI SPLITTER CABLES
|
3.907,20 EUR |
|
|
( 4.649,57 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 1794025 |
|---|---|
| Mfg Part No: | VCC-HD-4-H |
| UPC/EAN: | 00822088277576 |
| Weight: | 1.36 kg |
Product information for BlackBox VCC-HD-4-H:
Capture four channels of HDMI video input, with two channels supporting up to 4K60 and two up to 1080p60.
This capture card is optimized for Radian Video Wall Controller solutions, providing four HDMI 1.4 capture channels with HDCP support for high-quality video capture. Two channels support inputs up to 4K60 (297 MHz bandwidth), while the other two channels support resolutions up to 1080p60 (165 MHz bandwidth). The PCIe Gen3 x8 form factor offers 6.4 Gbps of capture bandwidth and includes a 768MB frame buffer memory, enabling exceptional performance for video walls.
With built-in Windows® WDM support, this card is also suited for streaming applications, allowing captured video to be compressed and streamed via Windows Media Encoder. Playback is available via Windows® Media Player, and the card is compatible with any application using Windows® DirectShow technology.
DirectShow drivers for WDM Streaming support applications such as Microsoft Media Encoder®, VLC, VirtualDub, and other DirectShow-compatible software for video encoding, recording, and streaming.
Warranty: 1-Year Double Diamond™ (Standard)
Specifications:
- Form Factor: PCIe Gen3 x8
- Channels: 4
- Frame Buffer Memory: 768MB
- Operating Temperature: 32 to 95° F (0 to 35° C)
- Power Consumption: 0.85A @ 12V; 0.45A @ 3.3V; Max Power 18W
- Resolution: 4K60 (Channels 1 and 3), 1080p60 (Channels 2 and 4)
- Storage Temperature: -4 to +158° F (-20 to +70° C)
- Connectors: 4x HDMI
- Dimensions: 4.3 in. W x 6.69 in. D (110 x 170 mm), including heat sink
- TAA Compliant: Yes
