BlackBox VCC-DP-2 2 CHANNEL DISPLAYPORT 4K CAPTURE CARD
|
3.359,04 EUR |
|
|
( 3.997,26 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1794028 |
|---|---|
| Mfg Part No: | VCC-DP-2 |
| UPC/EAN: | 00822088277545 |
| Weight: | 1.36 kg |
Product information for BlackBox VCC-DP-2:

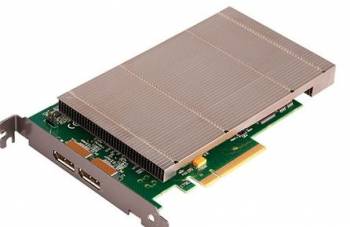

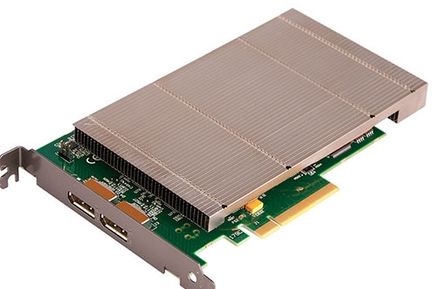

Capture two channels of DisplayPort 1.2 video input with HDCP support at up to 4K60 for use on your video wall.
This high-performance capture card is ideal for Radian Video Wall Controller solutions, providing two channels of DisplayPort 1.2 capture with HDCP support for the highest quality video on your video wall. It supports input video resolutions up to 4K60 and can capture resolutions up to 8K x 8K. With a PCIe Gen3 x8 form factor, the card provides 6 Gbps of capture bandwidth and features 768MB of frame buffer memory.
The capture card is compatible with Windows® WDM and is suited for streaming applications, enabling the compression and streaming of captured video via Windows Media Encoder, with playback available through Windows® Media Player. This card can be used with any application compatible with Windows® DirectShow technology.
DirectShow drivers for WDM Streaming support the following applications for encoding, recording, and streaming video: Microsoft Media Encoder®, VLC, VirtualDub, and any other DirectShow-compatible encoding software.
Warranty: 1-Year Double Diamond™ (Standard)
Specifications:
- Form Factor: PCIe Gen3 x8
- Channels: 2
- Frame Buffer Memory: 768MB
- Operating Temperature: 32 to 95° F (0 to 35° C)
- Power Consumption: 1.3A @ 12V; Max Power 16W
- Resolution: 4K60
- Storage Temperature: -4 to +158° F (-20 to +70° C)
- Connectors: 2x DisplayPort
- Dimensions: 4.3 in. W x 6.69 in. D (110 x 170 mm), including heat sink
- TAA Compliant: Yes
