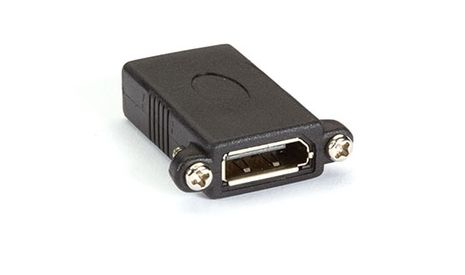

BlackBox VA-DP-CPL DISPLAYPORT FEMALE TO FEMALE COUPLER
|
6,13 EUR |
|
|
( 7,29 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1794110 |
|---|---|
| Mfg Part No: | VA-DP-CPL |
| UPC/EAN: | 00822088125907 |
| Weight: | 0.02 kg |
Product information for BlackBox VA-DP-CPL:
Product Description in English:
Video Coupler:
The Video Coupler enables connecting two video cables to extend the total cable length, providing flexibility in device placement. Additionally, the coupler can serve as an inverter adapter. Available in DisplayPort, DVI, or HDMI versions, it supports various connection types for compatibility with multiple devices.Features:
Extends Cable Length: Connects two video cables to span greater distances
Inverter Adapter Functionality: Usable to adjust connections as needed
Available in DisplayPort, DVI, or HDMI Versions:Resolution Support: Up to 1920 x 1080 (Full HD) depending on model
Durable Quality: Gold-plated contacts on HDMI version for optimal signal flow
Warranty: 25 Years Double Diamond™ (Standard)
Technical Specifications:
VA-DP-CPL (DisplayPort Coupler)::- Panel-mountable
Cross-connected Pins: 1–12
Straight-connected Pins: 13–20
- Connectors: (2) DisplayPort female
VA-DVI-CPL (DVI Coupler)::- Supported Resolution: Up to 1920 x 1080
- Supports DVI-I and DVI-D connectivity (no signal conversion) Connected Pins: C1–C5 and 1–24 (straight-connected)
- Cable Type: 28 AWG
- Connectors: (2) DVI female
- Contact Resistance: Max 2 Ohms
- Insulation Resistance: Max 10 M Ohms
- Dimensions: 6.1 H x 3.9 W x 1.4 L cm
- Weight: <0.1 kg
Passive with TMDS Support:- Certifications: UL 1007, RoHS2
VA-HDMI-CPL (HDMI Coupler)::- Supports TMDS and resolutions up to 1920 x 1080
Connected Pins: 1–19 (straight-connected)
- Gold-plated connectors for enhanced durability
- Certifications: RoHS2
- Connectors: (2) HDMI female
- Contact Resistance: Max 2 Ohms
- Insulation Resistance: Max 10 M Ohms
- Dimensions: 3.17 H x 1.65 W x 1.3 L cm
- Weight: <0.1 kg
