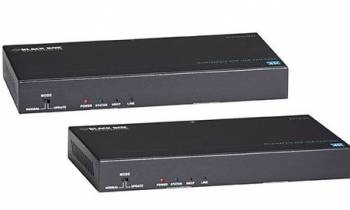

BlackBox UVX-DP-TP-100M DISPLAYPORT AND USB 2.0 EXTENDER

Product Description in English:

A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232:
Transmit 4K DisplayPort video, audio, USB data, and serial signals over distances up to 100 m with a single CATx cable. This extender is ideal for demanding applications requiring uncompressed video, audio, and peripheral signal transmission over long distances.

Features:

USB 2.0 Passthrough: For keyboard, mouse, and other USB peripherals
48 V Power over CATx (PoC): Powers the receiver unit directly from the transmitter via CATx cable
HDCP 2.2 Compliance and EDID transmission support for optimized picture quality
Signal Range: Up to 100 m over CAT6A/CAT7 cable, up to 70 m over CAT5e/CAT6
Uncompressed Video and Native 4K Support: Transmits 4K@30 Hz Ultra HD DisplayPort signals
Audio Transmission: Bidirectional analog stereo audio for comprehensive signal control
Ground Loop Isolation: Electronic isolation of transmitter and receiver units to prevent ground loop damage

Technical Specifications:

Connectors:
Transmitter: (1) 12-VDC barrel, (1) RJ45 out, (1) 3-pin Phoenix connector, (1) DisplayPort IN, (1) Audio IN, (1) Audio OUT, (1) USB Type B
Receiver: (1) 12-VDC barrel, (1) RJ45 in, (1) 3-pin Phoenix connector, (1) DisplayPort OUT, (1) Audio IN, (1) Audio OUT, (2) USB Type A

Maximum Data Rate:

• 10.2 Gbps

Range:

• CAT6A/CAT7: Up to 100 m at 3840 x 2160 @ 30 Hz (4:2:0), or at 1080p
• CAT5e/CAT6: Up to 70 m at 4K 30 Hz; up to 100 m at 1080p 30 Hz

Maximum Resolution:

• Input: Up to 3840 x 2160 at 30 Hz (Ultra HD)
• Output:
- UHD: 3840 x 2160 at 30 Hz
- FHD: 1920 x 1080 at 60 Hz
- HD: 1280 x 720 at 60 Hz
- WUXGA: 1920 x 1200 at 60 Hz
- WXGA: 1280 x 800 at 60 Hz


Environmental Conditions:

Operating Temperature: 0 to 45° C
Storage Temperature: -20 to 70° C


Dimensions:

• Each unit: 2.51 H x 20.09 W x 10.03 D cm

Weight:

• Each unit: 0.5 kg

Warranty:

• 3 Years Double Diamond™ (Standard)
