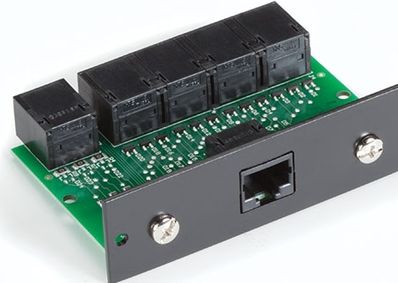

BlackBox TL421-C 4 PORT RS232 MODEM SPLITTER W/RJ45 RACKMOUNT CARD

RS-232 Modem Splitter Cards

Designed for the 48,3 cm ( 19 inch ) chassis TL400A, these cards split data from a single modem or port to up to seven users per card.

- Compatible with the RS-232 Modem Splitter Rackmount Chassis (TL400A).
- Allows up to seven RS-232 terminal devices to share a single modem.
- Transmits data received from the modem to all attached terminal devices.
- Passive and non-powered; operates transparently to data formats and speeds.
- Warranty: 1 Year Double Diamond™ (Standard).

When used with the 2U Rackmount Chassis (TL400A), RS-232 Modem Splitter Cards offer a simple, cost-effective way to connect up to four terminals to a single modem.

This system reduces the need for multiple modems and modem lines, lowering costs. The setup is straightforward—no need to configure switches, jumpers, or settings on the splitter. Simply connect the modem and terminal (DTE) devices to it and power up the modem and terminals as usual.

The master port connects to the modem via an RJ-45 straight-through cable and the necessary RJ or DB adapter, while the other ports are available for connecting DTE terminal devices.

Note: Only one terminal device can send data to the modem at any given time.

### Technical Specifications

Approvals: CE, RoHS2
Connectors:
- TL421-C:
- (1) Single RJ-45 Connector: MASTER
- (1) Quad RJ-45 Connector: PORT 1-4
- 5-, 6-, and 7-port models feature additional “Port n” connectors on the card’s rear
Environmental:
- Operating Temperature: 0 to 70° C
- Storage Temperature: -20 to 85° C
- Humidity: Up to 95% non-condensing
Interface: RS-232
Supported Leads:
- Pins 3, 4, 5, 7, and 8 connected straight through between MASTER and PORT 1-n.
- Pins 1, 2, and 6 “diode ORed” from PORT 1-n to the MASTER port
MTBF: >100,000 hours
Power: Non-powered; no power supply required
Weight: 45 g
