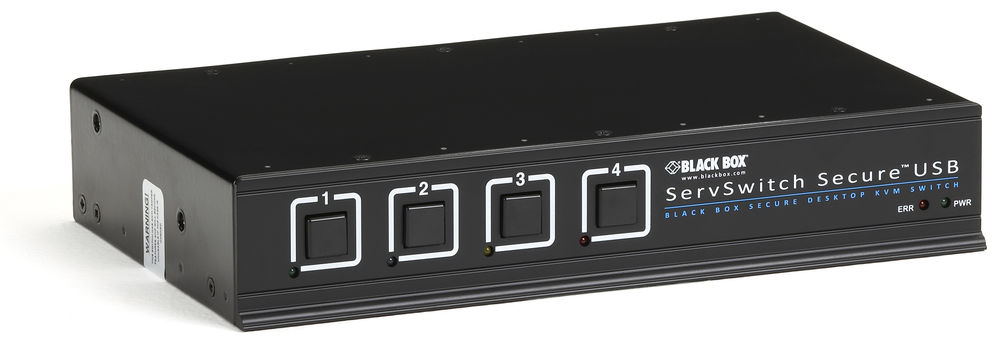

BlackBox SW4008A-USB-EAL ServSwitch Secure DVI / USB EAL 4-port

ServSwitch Secure DVI USB KVM Switch EAL4+

Combat security threats with this hard-wired KVM switch for DVI video and USB, offering exceptional data isolation and port isolation.

- Approved and registered in the NATO NIAPC Register.
- Provides high electrical isolation between ports for complete data separation.
- 60 dB crosstalk isolation between channels protects against signal snooping.
- Hard-wired to ensure full isolation among connected computers or networks.
- External tamper-evident seals prevent manipulation.
- Supports DC-balanced DVI-I video with optional encryption for added security.
- Robust metal housing with a durable switch mechanism.
- USB host controller clears all RAM—no residual data remain on the channel.
- Dedicated DDC bus and EDID emulation at each port.
- Clear channel selection; additional security with non-upgradable Flash ROM.
- No common power supply to minimize electromagnetic emissions.
- Warranty: 2 Years Double Diamond™ (Standard).

The ServSwitch™ Secure DVI USB KVM Switch EAL4+ offers comprehensive, hardware-based security measures, certified to Common Criteria Evaluation Assurance Level 4+ (EAL4+), with ALC_FLR.2 and ATEDPT.2.

This international certification thoroughly assesses IT security technologies and is endorsed by the National Information Assurance Program (NIAP) from the National Security Agency, making EAL4+ a standard for IT security across the industry.

The Secure KVM switch allows secure control of up to four computers with varying security levels through a single console, providing data isolation essential for high-security environments.

### Threat Scenarios and Solutions

1. Preventing data leaks between ports and to the outside world.:

Threat 1.1: Processor or software issues may enable data exchange between ports.
Solution: One-way data transfer via hardware data diodes ensures unidirectional data flow for keyboard and mouse, preventing unauthorized data movement.

Threat 1.2: Proximity of ports could allow data transmission.
Solution: Physical isolation by placing red and black ports on opposite ends improves separation.

Threat 1.3: Accidental switching between channels.
Solution: Channel switching is only possible through front-panel buttons, with all hotkeys disabled. Clear, color-coded feedback indicates the active channel.

Threat 1.4: Signaling through short-circuits or current surges.
Solution: Each port is independently powered, preventing effects of short circuits on other ports.

Threat 1.5: Monitoring crosstalk signals on another computer.
Solution: Crosstalk isolation of at least 60 dB prevents signal transfer between computers.

2. Avoiding data retention within shared devices.:

Solution: Shared circuits are powered down on each channel change, and all RAM memory is cleared to prevent residual data transfers.

3. Preventing electronic snooping.:

Solution: Dual shielding and a low emissions profile in the housing reduce electromagnetic radiation to prevent eavesdropping.

### Technical Specifications:

Maximum Distance: Cable length up to 4.9 m
Maximum Resolution: Digital up to 165 MHz per DVI link (Dual-Link DVI), analog up to 1920 x 1280
Connectors:
- CPU: (2) or (4) DVI-I, (2) or (4) USB Type B, (2) or (4) 3.5-mm audio jacks
- Console: (1) DVI-I, (2) USB Type A, (1) 3.5-mm audio jack
- Power: 2.5-mm barrel connector
Power: Input: 100–240 VAC, 50–60 Hz, external power, max. 0.5 A; Output: 5 VDC, 2.5 A, max. 12.5 W
Dimensions: (1U) 4.4 H x 23.5 W x 15 D cm
Weight: 0.5 kg
TAA compliant
