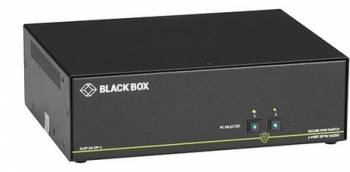

BlackBox SS8P-SH-DP-UCAC SECURE KVM SWITCH, SH, 8-PORT,DP,USB,CAC

Secure KVM-Switch, NIAP 3.0, 4K DisplayPort Single-Head

Control up to four computers from a single user console, ensuring complete data security across systems. The NIAP 3.0-certified 4K DisplayPort KVM switch provides secure access to multiple computers on separate networks and effectively protects sensitive data from unauthorized access and accidental transfer. Ideal for organizations with high-security requirements, this switch enables secure multi-network management.

- Secure control of up to 4 computers across different networks
- Protection against unauthorized access and accidental data transmission
- NIAP Protection Profile Version 3.0 certified
- Compatible with Windows, Mac, and Linux operating systems
- Supports 4K Ultra-HD DisplayPort resolution up to 3840 x 2160 at 30 Hz
- EDID learning and emulation for broad monitor compatibility
- Balanced speaker output with audio switching
- Locking power supply for added security
- Configurable CAC port for specific peripherals (smart cards, biometric readers)
- TEMPEST options available; contact sales for more information
- Warranty: 3-Year Double Diamond™

Key Security Features:

• Port isolation: Each connection has isolated data channels to prevent unwanted data transfer
• Mechanical, electrical, and optical isolation protects against hacking and data leaks
• Tamper-resistant firmware prevents unauthorized reprogramming or access
• Cache clearing: Clears keyboard/internal data with each switch
• Intrusion protection with tamper-resistant housing and locking mechanisms

Black Box’s Secure KVM switch series offers safe desktop access and cybersecurity for government agencies, finance, healthcare, traffic control, and educational institutions. With ultra-secure switching for up to 16 computers, it’s a flexible solution for sectors relying on maximum security.

Comprehensive Portfolio of Secure KVM Switches:

- Available with 2, 4, 8, or 16 computer ports
- Options for 4K video (digital and analog) with consoles for up to four monitors
- KM switches with specialized connections and mouse switching
- Models for single users and matrix switches for up to 4 users
- DVI switch with full-screen and 4-in-1 windowing display
- 1-Port KVM Protector for isolated systems

Secure KVM Switches for a Single User Console with DisplayPort Video:

These models support a DisplayPort user console (or HDMI with adapter), USB keyboard and mouse, audio, and optional CAC support. Models are available with two, four, or eight ports and offer front-panel buttons with LED indicators for secure, user-friendly switching.

Technical Specifications:

• Certifications: CE, RoHS-compliant, UL, TAA-compliant
• Video Formats: DisplayPort 1.2
• Max Resolution: 4K UHD 3840 x 2160 at 30 Hz
• Max Pixel Clock: 248 MHz
• DDC: 5 Volt p-p (TTL)
• Data Rate: 1.65 Gbps
• Input EQ: Automatic
• Max Cable Length: 6 m (input and output)
• USB Signal Type: USB 1.1 for keyboard and mouse (USB emulation)
• Operation: Front-panel buttons for easy switching

Connections:

• To Computers: (2), (4), or (8) DisplayPort 1.2 ports, (2), (4), or (8) USB Type B for keyboard/mouse, 3.5-mm audio ports; CAC options also available
• To Console: (1) DisplayPort port, (2) USB Type A for keyboard/mouse, (1) 3.5-mm audio port; CAC options also available

Additional Details:

• Power Supply: Locking power supply, 100–240 VAC, 12 VDC, 3 A, positive middle-pin polarity
• Temperature Range: Operating 0–40 °C, Storage -20–60 °C
• Relative Humidity: 0–80%, non-condensing
• Weight: 2-port models
