BlackBox SS8P-KM-U SECURE KM SWITCH, 8-PORT, USB

Secure KM-Switch, NIAP 3.0

Provides instant mouse switching between up to eight computers and connected displays, with complete information security. Ideal for organizations handling sensitive data across isolated networks.

- Glide-and-Switch Technology: Seamlessly switch between up to eight systems by moving the cursor to the target display.
- Designed for organizations with stringent security requirements.
- Protects critical data from accidental transmission, unauthorized access, and data loss.
- NIAP Protection Profile Version 3.0 certified.
- Optically isolated USB ports ensure electrical isolation of USB data paths.
- Protected firmware prevents unauthorized reprogramming or data access.
- Cache clearing of keyboard inputs prevents data leaks.
- Tamper-proof design with enclosure protection.
- Compatible with Windows, Mac, and Linux OS.
- Supports balanced audio outputs and audio switching.
- Locking power supply.
- Fully configurable CAC port for specific peripheral assignment.
- TEMPEST options available upon request.
- Warranty: 3-Year Double Diamond™.

Secure KM-Switch for Isolated System Control
These KM switches enable the secure operation of up to 8 isolated computers via a single user console. Each computer remains directly connected to a monitor, allowing operators to monitor all systems in real-time. Switching occurs automatically by simply moving the cursor to the desired monitor, without the need for hotkeys or buttons. Ideal for public safety, defense, and finance applications where isolated switching is essential.

Reasons for Secure KVM Switches
Connecting peripherals to a PC introduces potential security risks from data leaks. Conventional KVM switches often lack features to detect and prevent data breaches.

Black Box’s Extensive KVM Portfolio:
- Models with 2, 4, 8, or 16 computer ports
- Digital and analog 4K video options for up to four monitors
- Single-user and matrix switches
- KVM Protector for individual systems

Technical Specifications:

- Certifications: NIAP PP3.0, CE, RoHs compliant
- USB Signal Type: USB 1.1 emulation for keyboard and mouse

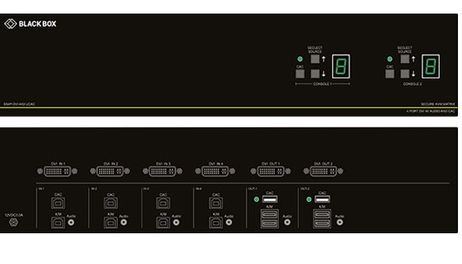

- Ports:
- Computer: 4 or 8 USB-B (CAC option available)
- Console: 2 USB-A for keyboard/mouse, 1 USB-A CAC (for CAC option)
- Audio: 3.5 mm stereo input and output
- Power Supply: Lockable external, 100 - 240 VAC, 12 VDC, 3 A
- Temperature: Operating 0 - 40 °C, Storage -20 - 60 °C
- Humidity: 0 - 80%, non-condensing
- Weight:
- 4-Port Models: 1.9 kg
- 8-Port Models: 2.85 kg
- Dimensions:
- 4-Port: 319 W x 45 H x 170 D mm
- 8-Port: 432 W x 45 H x 221 D mm

TAA-compliant: Yes
