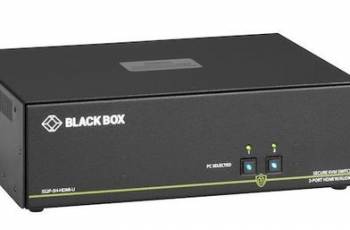

BlackBox SS4P-SH-HDMI-UCAC SECURE KVM Switch, SH, 4-Port, HDMI, USB, CAC content_copy

Secure KVM-Switch, NIAP 3.0, 4K HDMI Single-Head

Control up to four computers from a single console while ensuring complete information security. This KVM switch is ideal for organizations managing multiple networks with sensitive data securely.

- Secure access control for up to four networks.
- Protection from unauthorized data transfers, access, and data corruption.
- Ideal for organizations with confidential information across networks of different security levels.
- Certified to NIAP Protection Profile Version 3.0.
- Compatible with Windows, Mac, and Linux OS.
- HDMI 4K Ultra-HD (3840 x 2160 at 60 Hz).
- Secure EDID emulation for compatibility with most monitors.
- Supports balanced speaker output and audio switching.
- Locking power supply for added security.
- Optional configurable CAC port allows assignment of specific peripherals.
- 3-Year Double Diamond™ Warranty.

Key Security Features:

- Isolated data channels for complete protection between ports.
- Mechanical, electrical, and optical isolation prevents hacking and data leaks.
- Protected firmware prevents unauthorized reading and reprogramming.
- Clears keyboard and cache data upon each switch.
- Intrusion-resistant enclosure and tamper-proof switches.

NIAP PP3.0-certified KVM switches by Black Box offer maximum protection against cyber-attacks, ideal for government, defense, banking, healthcare, and educational institutions. These switches enable secure switching between up to 16 PCs, servers, or thin clients.

Comprehensive Secure KVM Portfolio for Various Applications:

- Models with 2, 4, 8, or 16 computer ports.
- 4K options for up to four monitors.
- KM switches with specialized monitor and mouse ports.
- Single- or matrix-switch options for up to four users.
- 4-Port DVI switch with full-screen and 4-in-1 view.

Technical Specifications:

- Certifications: NIAP PP 3.0, CE, RoHS, UL, TAA-compliant.
- Video format: HDMI.
- Max Resolution: 4K UHD 3840 x 2160 at 60 Hz.
- Pixel Clock: up to 248 MHz.
- DDC: 5 Volt p-p (TTL).
- Max Cable Length: 6 m (input and output).
- USB Type: USB 1.1 (keyboard and mouse) with emulation.

Connections:

- To Computers:
- HDMI (2 or 4),
- USB Type B for keyboard/mouse (2 or 4),
- 3.5-mm audio inputs (2 or 4),
- CAC options: USB Type B (2 or 4).
- User Console:
- HDMI (1),
- USB Type A for keyboard/mouse (2),
- CAC option: USB Type A (1),
- 3.5-mm audio output (1).

Power Supply:

- External, locking power supply, 100 - 240 VAC, 12 VDC, 3 A.

Operating Conditions:

- Operating Temperature: 0 to +40 °C,
- Storage Temperature: -20 to +60 °C,
- Humidity: up to 80%, non-condensing.

Dimensions:

- 2 ports: 224 W x 67 H x 170 D mm.
- 4 ports: 318 W x 44.7 H x 170 D mm.
- Weight: 2 ports: 1.75 kg, 4 ports: 1.9 kg.

TAA-compliant: Yes.
