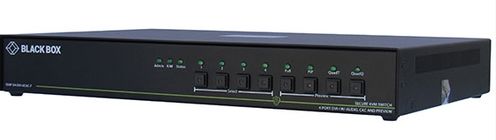

BlackBox SS4P-SH-HDMI-U SECURE KVM SWITCH, SH, 4-PORT, HDMI, USB

Secure KVM-Switch, NIAP 3.0, 4K HDMI Single-Head

Control up to four computers from a single console while maintaining high-level information security between systems.

- Provides secure access to multiple computers across different networks.
- Protects critical data from accidental transfers, unauthorized access, and data corruption.
- Ideal for organizations handling sensitive information across isolated networks with varying security levels.
- Certified according to NIAP Protection Profile Version 3.0.
- Supports Windows, Mac, and Linux OS.
- HDMI 4K Ultra-HD (3840 x 2160 at 60 Hz).
- Secure EDID learning and emulation for compatibility with most monitors.
- Supports balanced speaker output and switching.
- Locking power supply for added operational security.
- Optional, fully configurable CAC port allows assignment of specific peripherals.
- Warranty: 3 years Double Diamond™ (Standard).

Key Security Features:

- Each port has isolated data channels to ensure no data flows between secure ports and the outside world.
- Mechanical, electrical, and optical isolation protects against hacking and data leaks in critical security environments.
- Protected firmware prevents reprogramming and unauthorized access.
- Clears keyboard and cache data upon switching between computers.
- Intrusion-protected enclosure with tamper-proof switches.

NIAP PP3.0-certified KVM switches from Black Box provide cyber-attack security for government, military, finance, healthcare, and educational institutions. These switches allow ultra-secure switching between up to 16 PCs, servers, or thin clients from an ergonomic workstation.

Comprehensive Secure KVM Switch Portfolio:

- Models with 2, 4, 8, or 16 computer ports.
- 4K digital and analog options with consoles for up to four monitors.
- KM switches with dedicated monitor and mouse connections.
- Single-user and matrix switches for up to four users.
- 4-Port DVI switch for full screen and 4-in-1 view.
- 1-Port KVM protector.

Technical Specifications:

- Certifications: NIAP PP 3.0, CE, RoHs-compliant, UL, TAA-compliant.
- Video Format: HDMI.
- Max Resolution: 4K UHD 3840 x 2160 at 60 Hz.
- Pixel Clock: up to 248 MHz.
- Data Rate: 1.65 Gbit/s.
- Max Cable Length: 6 m for input and output cables.
- USB Signal Type: USB 1.1 for keyboard and mouse with emulation.

Connections:

- To Computers:
- HDMI (2 or 4),
- USB Type B for keyboard/mouse (2 or 4),
- 3.5-mm audio input (2 or 4).
- CAC options: USB Type B (2 or 4).
- User Console:
- HDMI (1),
- USB Type A for keyboard/mouse (2),
- CAC option: USB Type A (1),
- 3.5-mm audio output (1).

Power Supply:

- External, lockable, 100 - 240 VAC, 12 VDC, 3 A.

Operating Conditions:

- Operating Temperature: 0 to +40 °C,
- Storage Temperature: -20 to +60 °C,
- Humidity: up to 80%, non-condensing.

Dimensions:

- Models with 2 ports: 224 W x 67 H x 170 D mm,
- Models with 4 ports: 318 W x 44.7 H x 170 D mm.
- Weight: Models with 2 ports: 1.75 kg, Models with 4 ports: 1.9 kg.

TAA-compliant: Yes.
