BlackBox SS4P-SH-DP-UCAC SECURE KVM SWITCH, SH, 4-PORT,DP,USB, CAC

Secure KVM-Switch, NIAP 3.0, 4K DisplayPort Single-Head

Manage up to four computers from a single user console with complete information security across systems.

Reliable access to multiple computers in isolated networks.
Protects critical data from unauthorized access, accidental transfers, and data leaks.
Ideal for organizations managing confidential data across networks with varying security levels.
Tested and certified per NIAP Protection Profile Version 3.0.
Compatible with Windows, Mac, and Linux OS.
4K Ultra-HD DisplayPort (3840 x 2160 at 30 Hz).
Secure EDID learning and emulation with broad monitor compatibility.
Supports balanced audio outputs and switching.
Lockable power supply.
Optional configurable CAC ports for assigning specific peripherals.
TEMPEST options available via sales inquiry.
Warranty: 3 years Double Diamond™ (Standard).

Key Security Features:

Each port uses isolated data channels for full data protection.
Mechanical, electrical, and optical isolation prevents hacking and data leaks.
Secure firmware blocks reprogramming and unauthorized access.
Clears keyboard and internal cache prior to each switch.
Casing with intrusion protection.
Tamper-resistant design with secure enclosures.

Black Box Secure KVM Switches are suitable for high-security needs in government, military, finance, healthcare, transport, and education sectors. NIAP PP3.0-certified models offer ultra-secure switching for up to 16 computers with Windows or Linux OS from a single ergonomic workstation.

Comprehensive Portfolio of Secure KVM Switches:

Models with 2, 4, 8, or 16 computer ports.
4K digital and analog video options for consoles with up to four monitors.
KM and matrix switches for multi-user applications.
4-Port DVI switch with full-screen and 4-in-1 windowing display.
1-Port KVM protector.

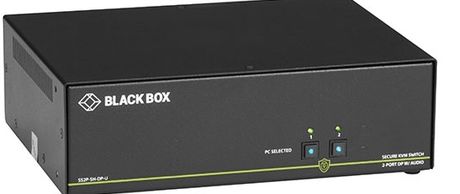

Secure KVM-Switch for a Single Console with DisplayPort Video:

Supports a console with DisplayPort monitor (or HDMI monitor via adapter), USB keyboard and mouse, audio, and optional CAC. Available in models with two, four, or eight ports. All models have front buttons and LED indicators for easy and secure switching.

Technical Specifications:

Certifications: CE, RoHs-compliant, UL, TAA-compliant.
Video Format: DisplayPort 1.2.
Max Resolution: 4K UHD (3840 x 2160 at 30 Hz).
Pixel Clock: Up to 248 MHz.
DDC: 5 Volt p-p (TTL).
Data Rate: 1.65 Gbit/s.
Max Cable Length for Input and Output: 6 m.
USB Signal Type: USB 1.1 keyboard and mouse with USB emulation.

Connections:

- To Computers:
- DisplayPort sockets (2, 4, or 8) 20-pin,
- USB Type B for keyboard/mouse,
- 3.5-mm audio jacks (2, 4, or 8).
- CAC Options: USB ports (2, 4, or 8).
- User Console:
- DisplayPort socket 20-pin,
- USB Type A for keyboard and mouse,
- 3.5-mm audio jack,
- CAC Options: USB Type A (2 ports).

Power Supply:

- External, lockable, 100-240 VAC, 12 VDC, 3 A.

Operating Conditions:

- Operating Temperature: 0 to +40 °C.
- Storage: -20 to +60 °C.
- Relative Humidity: Up to 80%, non-condensing.

Dimensions:

- 2-Port Model: 224 W x 67 H x 170 D mm, Weight: 1.74 kg.
- 4-Port Model: 319 W x 45 H x 170 D mm, Weight: 1.9 kg.
- 8-Port Model: 432 W x 45 H x 221 D mm, Weight: 2.85 kg.

TAA-Compliant: Yes
