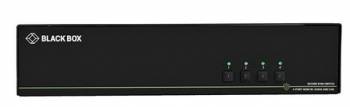

BlackBox SS4P-QH-DP-UCAC SECURE KVM SWITCH, QH, 4-PORT, DP, USB, CAC

Secure KVM-Switch, NIAP 3.0, 4K DisplayPort Quad-Head

Enables secure control of up to four computers via a single console with four monitors, while maintaining full information security.

Reliable access to multiple computers across different networks.
Protects sensitive data from accidental transfers, unauthorized access, and damage.
Ideal for organizations managing classified data across separate networks and security levels.
Certified according to NIAP Protection Profile Version 3.0.
Supports Windows, Mac, and Linux OS.
Four 4K Ultra-HD DisplayPort channels (3840 x 2160 at 30 Hz each).
Secure EDID learning and emulation allow seamless monitor connectivity.
Balanced speaker outputs and audio switching.
Lockable power supply.
Fully configurable CAC port allows users to assign specific peripherals to the switch.
Warranty: 3 years Double Diamond™ (Standard).

Security Features:

Each port uses isolated data channels to prevent data transfer between secure ports and external networks. Mechanical, electrical, and optical isolation safeguards against hacking and data leaks in security-sensitive environments. Firmware protection prevents reprogramming, and the automatic keyboard cache clearing feature mitigates vulnerabilities. Tamper-proof construction with locking mechanisms offers enhanced physical security.

Product Benefits and Applications:

NIAP PP3.0-certified KVM switches provide a secure solution against cyber threats for government, military, finance, healthcare, and education sectors.
Black Box's extensive KVM range offers flexible configurations and security options for every industry and application:
- Up to 16 computer ports
- 4K video options for up to four monitors
- Single-user or matrix switches for multi-user environments

Technical Specifications:

Certifications: NIAP PP3.0, CE, RoHs, UL, TAA compliant.
Video Format: DisplayPort 1.2.
Maximum Resolution: 4K UHD 3840 x 2160 at 30 Hz.
Pixel Clock: Up to 248 MHz.
Data Rate: 1.65 Gbit/s.
Maximum Cable Length: Input and output up to 6 m each.
USB Type: USB 1.1 for keyboard and mouse with emulation.
Control: Front panel buttons for quick and secure source switching.

Connections:

- To Computers: (4) 20-pin DisplayPort ports, (4) USB Type B for keyboard/mouse, (4) USB Type B CAC, (4) 3.5-mm audio jacks.
- To Console: (4) 20-pin DisplayPort ports, (2) USB Type A for keyboard/mouse, (2) USB Type A CAC, (1) 3.5-mm audio jack.

Physical Specifications:

Power Supply: Lockable external power supply, 100-240 VAC, 12 VDC, 3 A, positive center pin polarity.
Operating Temperature: 0 to +40 °C; Storage Temperature: -20 to +60 °C.
Relative Humidity: 0 to 80%, non-condensing.
Dimensions: 31.93 W x 12.45 H x 16.99 D cm.
Weight: 2.26 kg.
