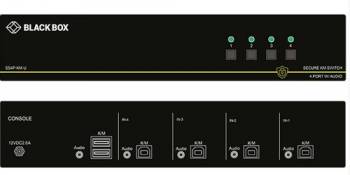

BlackBox SS4P-KM-UCAC SECURE KM SWITCH, 4-PORT, USB, CAC

Secure KM-Switch, NIAP 3.0

The Secure KM-Switch by Black Box provides seamless switching across up to eight isolated computers with full data security. The innovative Glide-and-Switch technology allows users to switch systems by simply moving the cursor.

Glide-and-Switch technology: Switch between up to eight systems by moving the mouse cursor.
Ideal for organizations handling sensitive data across isolated networks.
Protects against unauthorized access, data leaks, and accidental transfers.
Certified according to NIAP Protection Profile Version 3.0.
Optically isolated USB ports ensure electrical separation between data channels.
Protected firmware prevents reprogramming or unauthorized reading.
Automatic deletion of keyboard and cache data.
Tamper-proof housing with internal security switches and locks.
Supports Windows, Mac, and Linux.
Balanced-audio outputs with switching functionality.
Lockable power supply for added security.
Advanced Common Access Card (CAC) port option for dedicated peripherals.
TEMPEST options available for enhanced security.
Warranty: 3 years Double Diamond™ (Standard).

Use Case and Features:

The KM-Switch is ideal for controlling up to eight isolated computers through a single console, with each computer directly connected to a monitor, allowing for simultaneous real-time monitoring. The Glide-and-Switch technology offers an ergonomic switching solution that is intuitive and distraction-free, making it ideal for public safety, defense, finance, or other applications requiring isolated and instantaneous switching.

About Black Box Secure KVM Solutions:

NIAP PP3.0 certified for best-in-class cyber threat protection, ideal for government, finance, healthcare, and education.
Extensive range of KVM and KM switches for any requirement and industry:
- Up to 16 computer ports
- Digital and analog video options, up to four monitors
- For single or multi-user environments, matrix switches for up to four users

Technical Specifications:

Certifications: NIAP PP3.0, CE, RoHs compliant.
USB Type: USB 1.1 for keyboard and mouse only.
Connections:
- To Computers: (4) or (8) USB Type B; CAC options available.
- To Console: (2) USB Type A for keyboard and mouse; optional (1) CAC.
- Audio Input: (4) or (8) 3.5-mm stereo jacks.
- Audio Output: (1) 3.5-mm stereo jack.
Power Supply: Lockable connection, 100-240 VAC, 12 VDC, 3 A adapter, positive center pin polarity.
Emulation: Keyboard and mouse.
Control: Front panel buttons.
Temperature: Operating 0 to +40 °C, storage -20 to +60 °C.
Humidity: 0 to 80%, non-condensing.

Dimensions and Weight:

- 4-Port Model: 319 W x 45 H x 170 D mm, weight 1.9 kg.
- 8-Port Model: 432 W x 45 H x 221 D mm, weight 2.85 kg.

TAA Compliant: Yes
