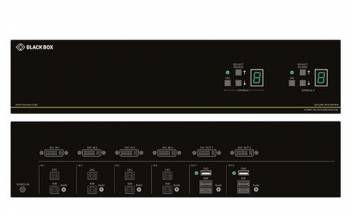

BlackBox SS4P-DVI-4X4-UCAC SECURE KVM MTRX SWITCH, SH, 4-PORT, DVI-I, USB, CAC, 4x4

Secure KVM Matrix Switches, NIAP 3.0, DVI-I Single-Head

Allow two or four users to control up to eight computers while maintaining comprehensive data security. These certified Secure KVM Matrix Switches from Black Box offer a reliable solution for environments with high security standards and separate network demands.

Secure connectivity to multiple computers across different networks.
Protects against unauthorized data transfer and access.
Ideal for organizations handling sensitive data with strict security requirements.
Certified to NIAP Protection Profile Version 3.0.
Compatible with Windows, Mac, and Linux.
Supports USB, Audio, and DVI-I Video with Dual-Link DVI resolutions up to 2560 x 1600.
EDID learning and emulation for smooth monitor compatibility.
Supports balanced speaker outputs and audio switching.
Lockable power supply for enhanced security.
Configurable CAC port for dedicated peripherals.
Warranty: 3 years Double Diamond™ (Standard).

Security Features:

Each port fully isolates data, eliminating security gaps.
Mechanical, electrical, and optical isolation protects against hacking and data leaks.
Secured firmware prevents unauthorized reprogramming.
Automatic cache clearing after switch operations.
Tamper-resistant housing with intrusion protection.

Technical Specifications:

Video Formats: DVI-I Dual Link (Single Link DVI, Dual Link DVI, VGA, HDMI via adapter)
Max Resolution: 2560 x 1600 at 60 Hz, up to 3840 x 2160 at 60 Hz (with HDMI/DVI adapter)
Pixel Clock: 248 MHz
DDC: 5 Volts p-p (TTL)
Data Rate: 1.65 Gbps
Input EQ: automatic

USB Type: USB 1.1 for keyboard and mouse (emulated)

Models and Connections:

4x2 Secure Matrix Switch:
To Computers:

• (4) DVI-I connectors
• (4) USB Type B for keyboard/mouse
• (4) CAC ports USB Type B
• (4) 3.5-mm audio jacks

To User Console:

• (2) DVI-I connectors
• (2) USB Type A for keyboard/mouse
• (2) CAC ports USB Type A
• (2) 3.5-mm audio jacks

8x2 Secure Matrix Switch:

To Computers:

• (8) DVI-I connectors
• (8) USB Type B for keyboard/mouse
• (8) CAC ports USB Type B
• (8) 3.5-mm audio jacks

To User Console:

• (2) DVI-I connectors
• (2) USB Type A for keyboard/mouse
• (2) CAC ports USB Type A
• (2) 3.5-mm audio jacks

Power Supply: Lockable external power supply, 100 - 240 VAC, 12 VDC, 3 A
Operating Temperature: 0 to +40 °C
Storage Temperature: -20 to +60 °C
Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 4-Port Models (4x2, 4x4): 319 W x 69 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models (8x2, 8x4): 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Certifications:

• NIAP PP3.0 certified
• CE
• RoHS compliant
• UL
• TAA compliant
