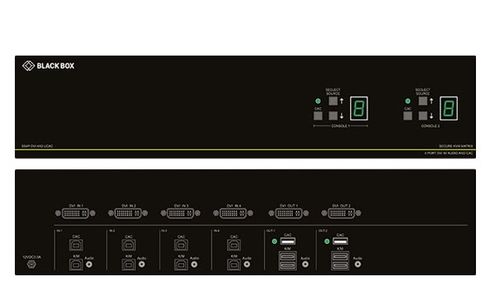

BlackBox SS4P-DVI-4X2-UCAC SECURE KVM MTRX SWITCH, SH, 4-PORT, DVI-I, USB, CAC, 4x2

Secure KVM Matrix Switches, NIAP 3.0, DVI-I Single-Head

Allow two or four users to control up to eight computers while ensuring full data security. Black Box's certified Secure KVM Matrix Switches are ideal for organizations managing sensitive data across separate networks with differing security levels.

Reliable solution for accessing multiple computers across various networks.
Protects critical data from unintended transmissions, unauthorized access, and damage.
Optimized for organizations with stringent security demands and separate networks.
Certified to NIAP Protection Profile Version 3.0.
Supports Windows, Mac, and Linux.
DVI-I Dual-Link Video (2560 x 1600 at 60 Hz) for excellent image quality.
EDID learning and emulation ensure optimal monitor compatibility.
Supports balanced speaker outputs and audio switching.
Lockable power supply for additional operational security.
Configurable CAC port allows assignment of specific peripherals.
Warranty: 3 years Double Diamond™ (Standard).

Security Features:

Isolated data channels for each port prevent data flow between secure and non-secure ports.
Mechanical, electrical, and optical isolation offers protection against hacking and data leaks.
Secure firmware prevents unauthorized modifications.
Clears keyboard and cache memory after each switch.
Tamper-resistant housing with intrusion protection.

Technical Details:

Video Format: DVI-I Dual Link (Single Link DVI, Dual Link DVI, VGA, and HDMI via adapter)
Max Resolution: 2560 x 1600 at 60 Hz; up to 3840 x 2160 at 60 Hz with HDMI/DVI adapter
Pixel Clock: 248 MHz
DDC: 5 Volts p-p (TTL)
Data Rate: 1.65 Gbps
Input EQ: automatic

USB Type: USB 1.1 for keyboard and mouse (emulated only)

Models and Connections:

4x2 Secure Matrix Switch:
To Computers:

• (4) DVI-I connectors
• (4) USB Type B for keyboard/mouse
• (4) CAC ports USB Type B
• (4) 3.5-mm audio jacks

To User Console:

• (2) DVI-I connectors
• (2) USB Type A for keyboard/mouse
• (2) CAC ports USB Type A
• (2) 3.5-mm audio jacks

8x2 Secure Matrix Switch:

To Computers:

• (8) DVI-I connectors
• (8) USB Type B for keyboard/mouse
• (8) CAC ports USB Type B
• (8) 3.5-mm audio jacks

To User Console:

• (2) DVI-I connectors
• (2) USB Type A for keyboard/mouse
• (2) CAC ports USB Type A
• (2) 3.5-mm audio jacks

Power Supply: Lockable external power supply, 100 - 240 VAC, 12 VDC, 3 A
Operating Temperature: 0 to +40 °C
Storage Temperature: -20 to +60 °C
Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 4-Port Models (4x2, 4x4): 319 W x 69 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models (8x2, 8x4): 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Certifications:

• NIAP PP3.0 certified
• CE
• RoHS compliant
• UL
• TAA compliant
