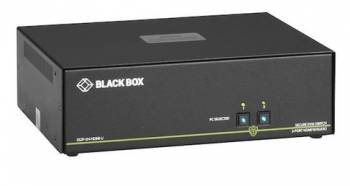

BlackBox SS4P-DH-HDMI-U SECURE KVM SWITCH, DH, 4-PORT, HDMI, USB

Secure KVM Switch, NIAP 3.0, 4K HDMI Dual-Head

Control up to four computers with a single user console while maintaining complete data security. This NIAP-certified KVM switch is ideal for organizations handling sensitive data across networks with varying security levels, providing robust information security.

Enables secure access to multiple network-connected computers.
Prevents accidental transfers, unauthorized access, and data loss.
Certified to NIAP Protection Profile Version 3.0.
Supports Windows, Mac, and Linux OS.
Dual 4K HDMI channels supporting up to 3840 x 2160 at 60 Hz.
Secure EDID learning and emulation for compatibility with most monitors.
Supports balanced speaker audio and audio switching.
Lockable power supply.
Configurable CAC port for assigning specific peripherals.
Warranty: 3 years Double Diamond™ (Standard).

Security Features:

Each port has isolated data channels to prevent data crossover.
Mechanical, electrical, and optical isolation protects against hacking and data leaks.
Protected firmware prevents unauthorized reprogramming or reading.
Automatic clearing of keyboard/internal cache.
Tamper-resistant casing with intrusion protection and hologram seals.

Technical Details:

Video Format: HDMI
Maximum Resolution: 4K UHD 3840 x 2160 at 60 Hz
Pixel Clock: 248 MHz
DDC: 5 Volts p-p (TTL)
Data Rate: 1.65 Gbps
Automatic input equalization

USB Type: USB 1.1 for keyboard and mouse only (emulated)

Connections to Computers:

• (4) or (8) HDMI
• (2) or (4) USB Type B for keyboard and mouse
• Additional CAC options: (2) or (4) USB Type A
• (2) or (4) 3.5-mm audio jacks

Connections to User Console:

• (2) HDMI
• (2) USB Type A for keyboard and mouse
• CAC options: (2) USB Type A
• (1) 3.5-mm audio jack

Operating Temperature: 0 to +40 °C
Storage Temperature: -20 to +60 °C
Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 2-port models: 224 W x 67 H x 170 D mm, Weight: 1.75 kg
• 4-port models: 318 W x 44.7 H x 170 D mm, Weight: 1.9 kg

Certifications:

• NIAP PP3.0 certified
• CE
• RoHS
• UL
• TAA-compliant
