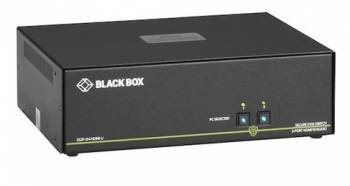

BlackBox SS2P-SH-HDMI-UCAC SECURE KVM SWITCH, SH, 2-PORT, HDMI, USB, CAC

Secure KVM Switch, NIAP 3.0, 4K HDMI Single-Head

Control up to four computers from a single console while ensuring complete information security. The NIAP PP3.0-certified KVM switch provides a reliable and secure solution for accessing multiple computers connected across various networks.

Enables secure access to multiple computers across different networks.
Protects critical data from accidental transfers, unauthorized access, and corruption.
Ideal for organizations managing sensitive data across networks with different security levels.
Certified according to NIAP Protection Profile Version 3.0.
Compatible with Windows, Mac, and Linux OS.
4K Ultra-HD HDMI (3840 x 2160 at 60 Hz).
Secure EDID learning and emulation for connection with most monitors.
Supports balanced speakers and audio switching.
Lockable power supply for added security.
Configurable CAC port for specific peripheral assignment.
Warranty: 3 years Double Diamond™ (Standard).

Key Security Features:

Each port has an isolated data channel to prevent data flow between secure and external ports.
Mechanical, electrical, and optical isolation protects against hacking and data leaks in high-security environments.
Protected firmware prevents unauthorized reprogramming.
Clears keyboard and cache data with every switch.
Tamper protection on the housing.
Tamper-proof switches and security seals.

NIAP PP3.0-certified KVM switches by Black Box offer high-security access to up to 16 PCs, laptops, or servers running Windows or Linux, ideal for government, financial, and healthcare sectors.

Comprehensive Portfolio for All Applications:

KVM switches with 2, 4, 8, or 16 computer ports.
4K digital and analog video options for consoles with up to four monitors.
KM switches with dedicated monitor and mouse connections.
KVM matrix switches for access by up to 4 users.
4-port DVI switch with full-screen or 4-in-1 display.
1-port KVM protector for specialized applications.

Technical Specifications:

Video Format: HDMI
Max. Resolution: 4K UHD 3840 x 2160 at 60 Hz
Max. Pixel Clock: 248 MHz
DDC: 5 Volts p-p (TTL)
Data Rate: 1.65 Gbps
Max Cable Length (Input/Output): 6 m
USB Signal Type: USB 1.1 for keyboard and mouse (with USB emulation)

Connections:

To Computers: (2) or (4) HDMI, (2) or (4) USB Type B for keyboard/mouse, CAC options (2) or (4) USB Type A, (2) or (4) 3.5-mm audio jacks
User Console: (1) HDMI, (2) USB Type A for keyboard/mouse, CAC options (2) USB Type A, (1) 3.5-mm audio jack

Power Supply: External, lockable, 100 - 240 VAC, 12 VDC, 3 A
Operating Temperature: 0 to +40 °C
Storage Temperature: -20 to +60 °C
Humidity: 0 to 80%, non-condensing
Dimensions:
2-Port Model: 224 W x 67 H x 170 D mm
4-Port Model: 318 W x 44.7 H x 170 D mm
Weight:
2-Port Model: 1.75 kg
4-Port Model: 1.9 kg

TAA Compliant: YES
