BlackBox SM261A-CARD Per switching, external AC power adapter card
|
255,36 EUR |
|
|
( 303,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 627421 |
|---|---|
| Mfg Part No: | SM261A-CARD |
| UPC/EAN: | 00822088117094 |
| Weight: | 0.28 kg |
Product information for BlackBox SM261A-CARD:
Power your SM260 Series Pro-Switching System reliably and ensure constant operational readiness. These adapter cards are specifically designed for the SM260 group switching chassis, offering both internal and external power options.
Features:
SM261A-VAC: Internal power supply, requires 2 slots, directly powers the chassis.SM261A-CARD: External power adapter card, adjusts external power inputs and can handle two inputs.
Warranty: 1 Year Double Diamond™ (Standard)
Internal Power Supply – SM261A-VAC
The SM261A-VAC is an internal power supply card that installs directly in the group switching chassis, occupying up to two slots. It provides robust, redundant power to all connected cards within the chassis. For fully redundant internal power, two of these cards are required, occupying a total of four slots.

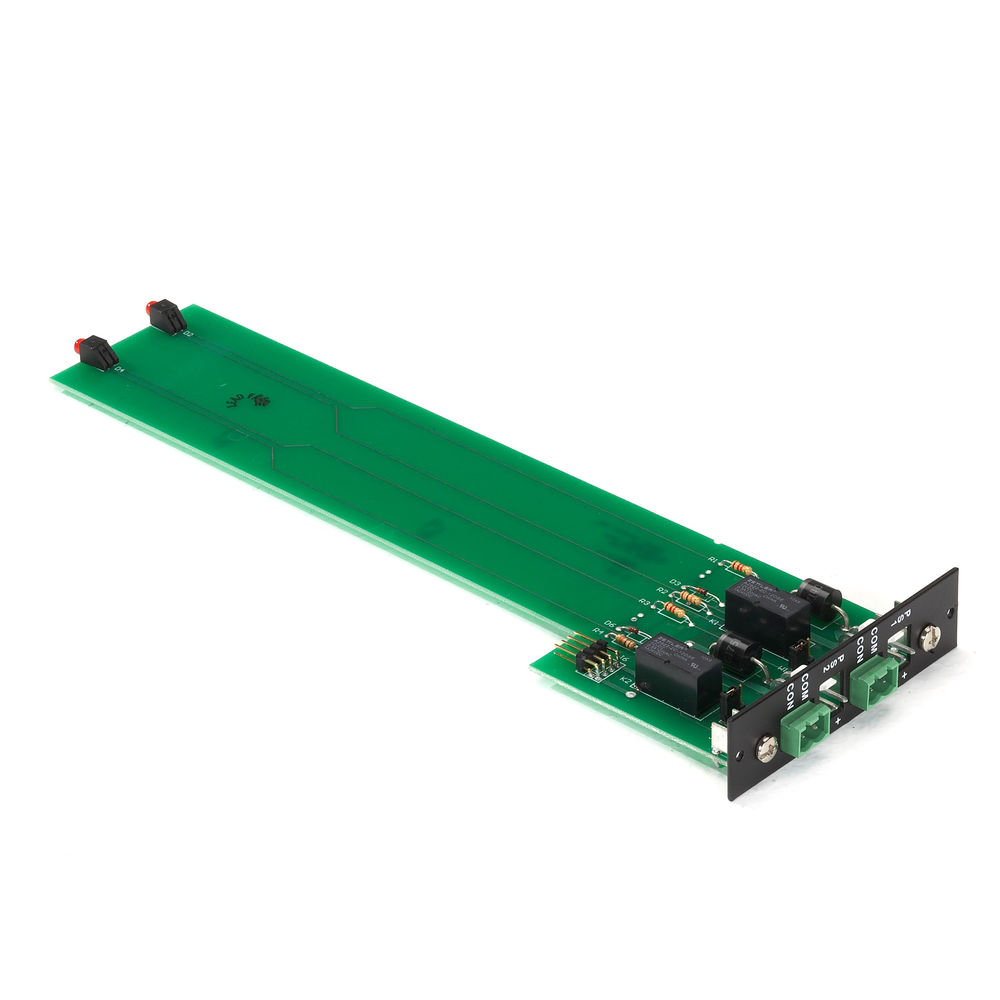

External Power Adapter – SM261A-CARD
The SM261A-CARD enables power from external power supplies, designed to adjust one or two 12 VDC inputs, each delivering 5 A. The card indicates power status and supports redundancy by adding a second external power supply (SM961A-PS).
Ordering Guide for Pro-Switching System SM260A::
1. Chassis: Pro-Switching System, 2U, 18 slots (SM260A)
2. Power Supply Cards: Choose at least one of the following options:
Redundant Internal Power Supply: 100-240 VAC input, requires 2 slots (SM261A-VAC)
External Power Adapter Card: for external power supplies, requires 1 slot (SM261A-CARD)
3. External Power Supply (order two for redundancy):
External Power Supply: 120-240 VAC, External (SM961A-PS)4. Controller Cards:
RS-232/Ethernet (SNMP) (SM262A)SNMP Extension (SM264A)
5. A/B Switch Cards:
DB25/RS-232 (SM265A)
DB25/RS-530 (SM266A)
RJ-45 CAT6 (SM269A)
6. Blank Slots:
- Order blank panels for unused slots (SM279A-BLNK)Technical Specifications:
SM261A-VAC:- Connections: (1) IEC input, (1) 3-position terminal block with alarm contact
- Indicators: (1) Power LED
SM261A-CARD:- Connections: (2) 2-position DC headers, (2) 2-position terminal blocks with alarm contact
- Indicators: (2) Power LEDs
- Slot Requirement: 1
- Note: Compatible with 100 – 240 V external power supply (SM961A-PS)
