BlackBox SKVMCBL-HDMI-06 SECURE KVM CABLE, HDMI, USB A-B, 3.5MM AUDIO, 1.8M (6FT)

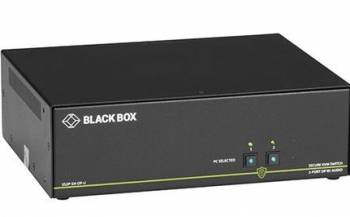

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Single-Head

The Secure KVM Switch NIAP 3.0 allows you to control up to four computers through a single user console while ensuring the highest level of information security. This device provides a reliable solution for protecting sensitive data in organizations managing networks with varying security levels.

Features:

• Access multiple computers across different networks
• Protects critical data from unauthorized transfers, access, and damage
• Certified to NIAP Protection Profile version 3.0
• Supports Windows, Mac, and Linux OS
• 4K Ultra-HD DisplayPort (3840 x 2160 at 30 Hz)
• Secure EDID learning and emulation for monitor compatibility
• Supports balanced audio and audio switching
• Lockable power supply for added security
• Configurable CAC port for specific peripherals (optional)
• TEMPEST options available for advanced security needs
• Warranty: 3 years Double Diamond™ (Standard)

Key Security Features:

• Isolated data channels for each port prevent data flow between secure ports and the external environment.
• Mechanical, electrical, and optical isolation protects against hacking and data leaks.
• Protected firmware prevents unauthorized changes.
• Keyboard and internal cache memory are automatically cleared before each switching operation.
• Tamper-proof chassis with lock-downs for increased security.

Technical Specifications:

• Certifications: CE, RoHS compliant, UL, TAA compliant
• Video formats: DisplayPort 1.2
• Maximum resolution: 4K UHD (3840 x 2160 at 30 Hz)
• Max Pixel Clock: 248 MHz
• DDC: 5 Volt p-p (TTL)
• Data rate: 1.65 Gbps
• Automatic input equalization
• Maximum cable length: 6 m (input and output)

Connections:

• To Computers:
- DisplayPort sockets: (2, 4, or 8)
- USB Type B for keyboard/mouse: (2, 4, or 8)
- 3.5-mm audio jacks: (2, 4, or 8)
- CAC options: (2, 4, or 8) USB Type A

• To User Console:
- DisplayPort socket: (1)
- USB Type A for keyboard and mouse: (2)
- CAC options: (2) USB Type A
- 3.5-mm audio jack: (1)


Operating Conditions:

• Temperature range: Operating 0 to +40 °C, Storage -20 to +60 °C
• Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

• 2-Port Models: 224 W x 67 H x 170 D mm, Weight: 1.74 kg
• 4-Port Models: 319 W x 45 H x 170 D mm, Weight: 1.9 kg
• 8-Port Models: 432 W x 45 H x 221 D mm, Weight: 2.85 kg

Power Supply:

• Lockable external power supply, 100–240 VAC, 12 VDC, 3 A, with positive center pin polarity
